Beninca MATRIX - Safety Device Connections; Safety Device Wiring Diagrams

Beninca MATRIX
40 pages
Go to English
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
3
24Vac 24Vac
COM
NC
RX1 TX1
24Vac 24Vac
COM
NC
RX2 TX2
Phtoto TEST - 13
24Vac - 8
24Vac - 8
24Vac - 9
COM - 19
PHOT C - 24
Phtoto TEST - 13
24Vac - 8
24Vac - 8
24Vac - 9
COM - 19
PHOT O - 21

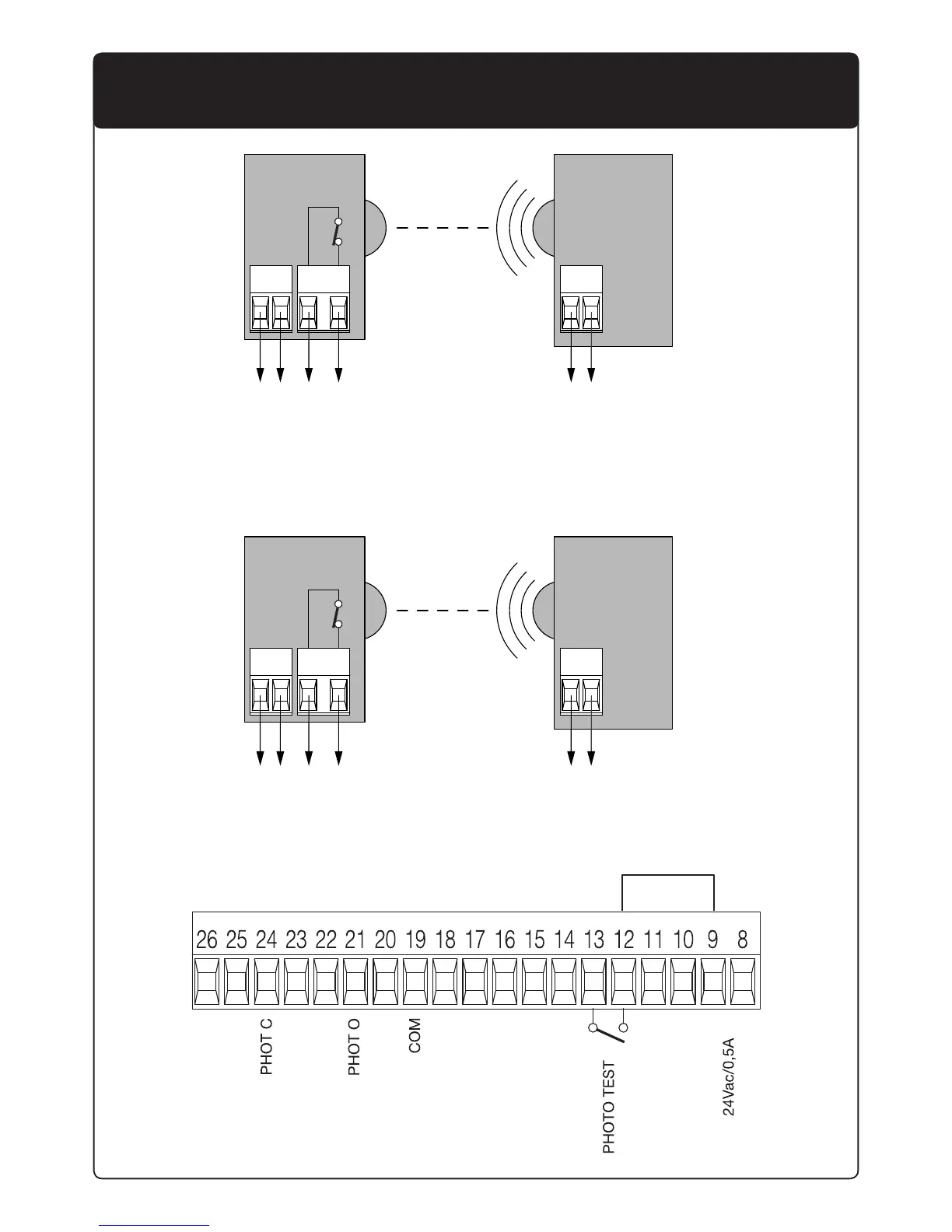

Collegamento dispositivi di sicurezza verificati / Connection of tested safety devices
Anschluss geprüfter Sicherheitsvorrichtungen / Branchement dispositifs de sécurité vérifiés
Conexión de los dispositivos de seguridad verificados / Połączenia sprawdzanych urządzeń bezpieczeństwa
