BENOIT SYSTEMS Light Drive 2 - Page 15

Update : 28/11/2018
Index : 03 Version : 00
14

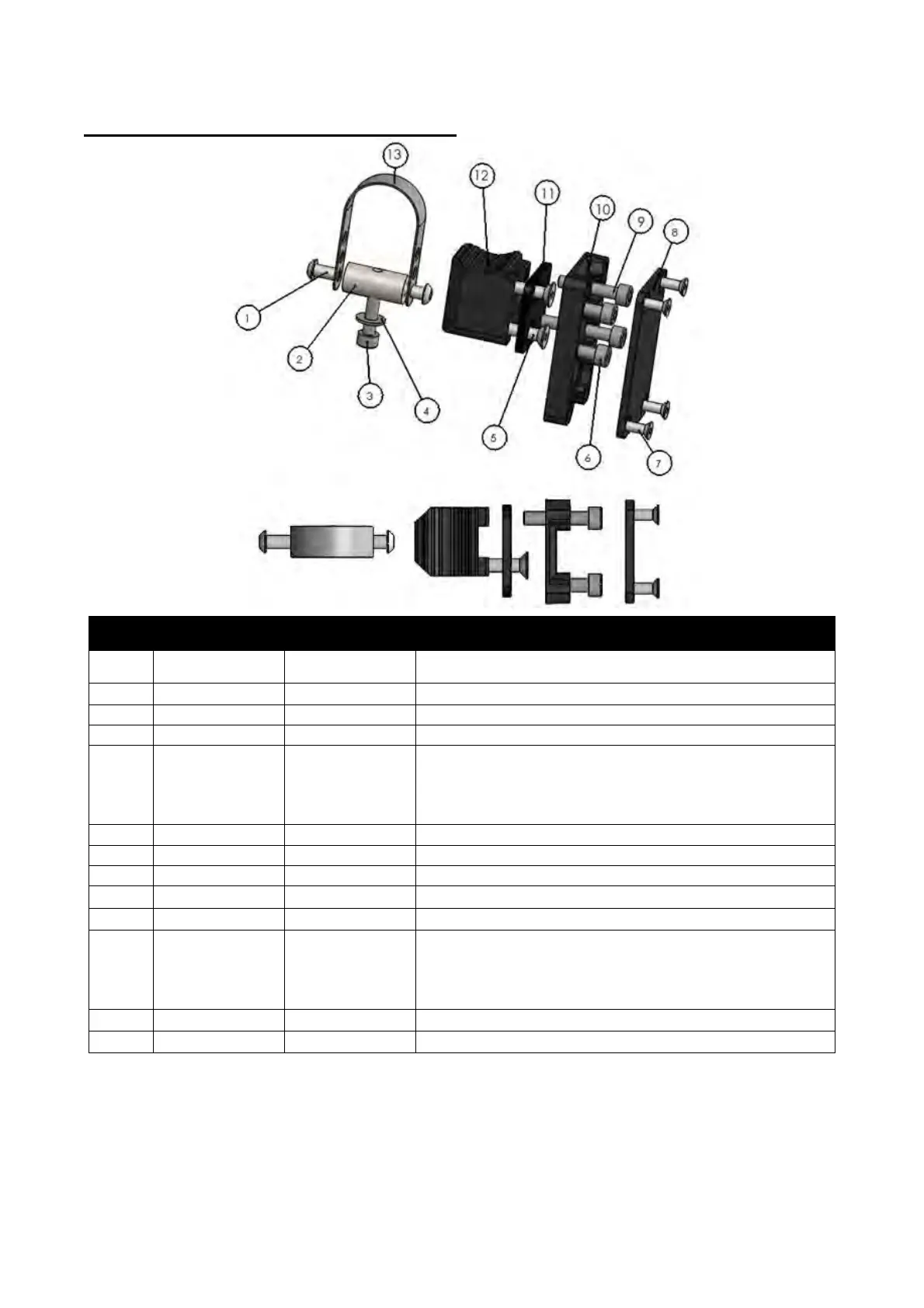

Controller bracket + fixation module
There are 4 possible installations:
Standard reinforcement plate: using 5a and 11a.
Long reinforcement plate: using 5b and 11b.
Double standard reinforcement plate: using 5c and 11c.
Double long reinforcement plate: using 5d and 11d.
Num.
Reference
Qty/unit
Name
1
000-525
2
M5x10 button head screw
2
240-090
1
Mobile axle
3
A00-122
1
M5x25 cap screw
4
000-020
1
Washer Ø5
5a
5b
5c
5d
A00-074
000-520
A00-100
A00-118
2
M5x20 flat head screw
M5x20 button head screw
M5x25 flat head screw
M5x25 button head screw
6
A00-505
2
M5x8 low head screw
7
A00-310
4
M4x12 flat head screw
8
730-035
1
Controller bracket plate
9
A00-126
2
M5x25 low head screw
10
730-025
1
Controller bracket
11a
11b
11c
11d
240-081
240-082
240-081
240-082
1
1
2
2
Standard reinforcement plate
Long reinforcement plate
Standard reinforcement plate
Long reinforcement plate
12
240-080
1
Controller bracket fixation base
13
240-085
1
Strap
