BENOIT SYSTEMS Light Drive 2 - Page 8

Update : 28/11/2018
Index : 03 Version : 00
7

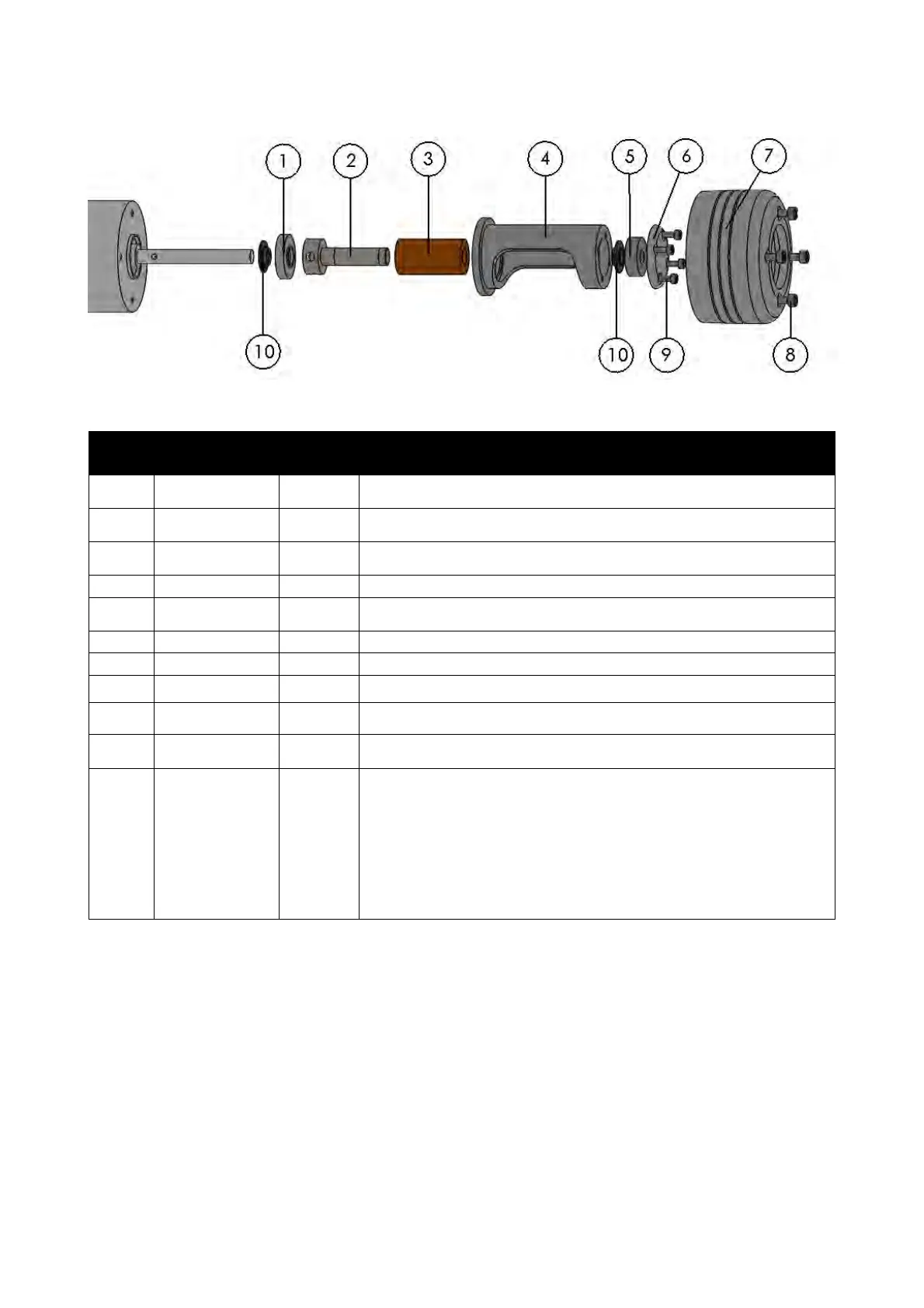

Motor module exploded view and nomenclature
Num.
Reference
Qty /
unit
Name
1
400-056
1
Roller cover base
2
400-045
1
Hub
3
400-030
1
Ø20 motor roller
4
400-052
1
Polished roller cover
5
000-190
1
608 motor bearing
6
400-042
1
Polished roller cover cap
7
400-026
1
40 mm polished motor cup
8
000-400
4
Stainless steel M4x16 cap screw
9
000-410
4
Stainless steel M3x8 cap screw
10
400-010
2
Motor ring
3+4
400-082
/
400-083
2
Roller repair kit with hub
(1 roller Ø20 + 1 hub + 2 M6x6 headless screws +
shrinking tube + bearing)
/
Roller repair kit without hub
(1 roller Ø20 + shrinking tube + glue + bearing +
ring)
