BENRO GD3WH - Operation Instruction; Quick Release Wheel Operation; Side Tilt Adjustment; Front & Back Tilt Adjustment

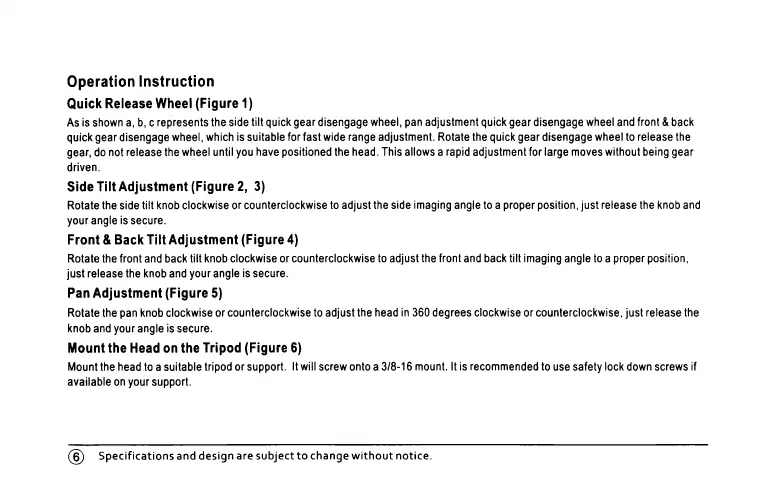

Operation
Instruction
Quick
Release
Wheel
(Figure
1)
As is shown
a,
b,
c
represents
the
side tilt
quick
gear
disengage
wheel,
pan
adjustment
quick
gear
disengage
wheel and
front
&
back
quick
gear
disengage
wheel,
which is suitable for
fast
wide
range
adjustment.
Rotate the
quick
gear
disengage
wheel
to
release
the
gear,
do
not
release
the
wheel
until
you
have
positioned
the
head.
This allows
a rapid
adjustment
for
large
moves
without
being
gear
driven.
Side
Tilt
Adjustment
(Figure
2,
3)
Rotate
the side
tilt knob clockwise
or
counterclockwise
to
adjust
the side
imaging angle
to
a
proper
position,
just
release
the knob and
your
angle
is
secure.
Front
&
Back Tilt
Adjustment
(Figure
4)
Rotate the
front and back tilt
knob
clockwise
or
counterclockwise
to
adjust
the
front
and back
tilt
imaging angle
to
a
proper
position,
just
release
the knob and
your
angle
is
secure.
Pan
Adjustment
(Figure
5)
Rotate
the
pan
knob clockwise
or
counterclockwise
to
adjust
the head
in
360
degrees
clockwise
or
counterclockwise,
just
release
the
knob
and
your
angle
is
secure.
Mount
the
Head
on
the
Tripod
(Figure
6)
Mount the head
to
a
suitable
tripod
or
support.
It will
screw
onto
a
3/8-16
mount.
It
is
recommended
to
use
safety
lock down
screws
if
available
on
your
support.
®
Specifications
and
design
are
subject
to
change
without
notice.
