3. Use the provided hex key and
turn counterclockwise to loosen
all three screws on the bowl.
22
4. After that, turn the clockwise
to lock the ball head. Then hold the
ball head and rotate it
counterclockwise to remove.
22
4. Tighten the screws rmly on the
bowl using the provided hex key to
make sure that the ball head won’t
loosen while rotating to prevent
devices from accidental falls.
27
3. Align the screw slot on the bowl
with the and turn clockwise
to securely tighten.
14
14
27
Mounting
1. Deploy the tripod and place it on
the at surface stably.
24
22
24
2. Lock the ball head by rotating
the clockwise and tightening
the .
9
22
11
11
24
Removing
1. Deploy the tripod and place it on
the at surface stably.
22
11
11
24
2. Loosen the and
separately, and rotate the ball
head till all three screws on the
bowl are exposed.
22
1111
24

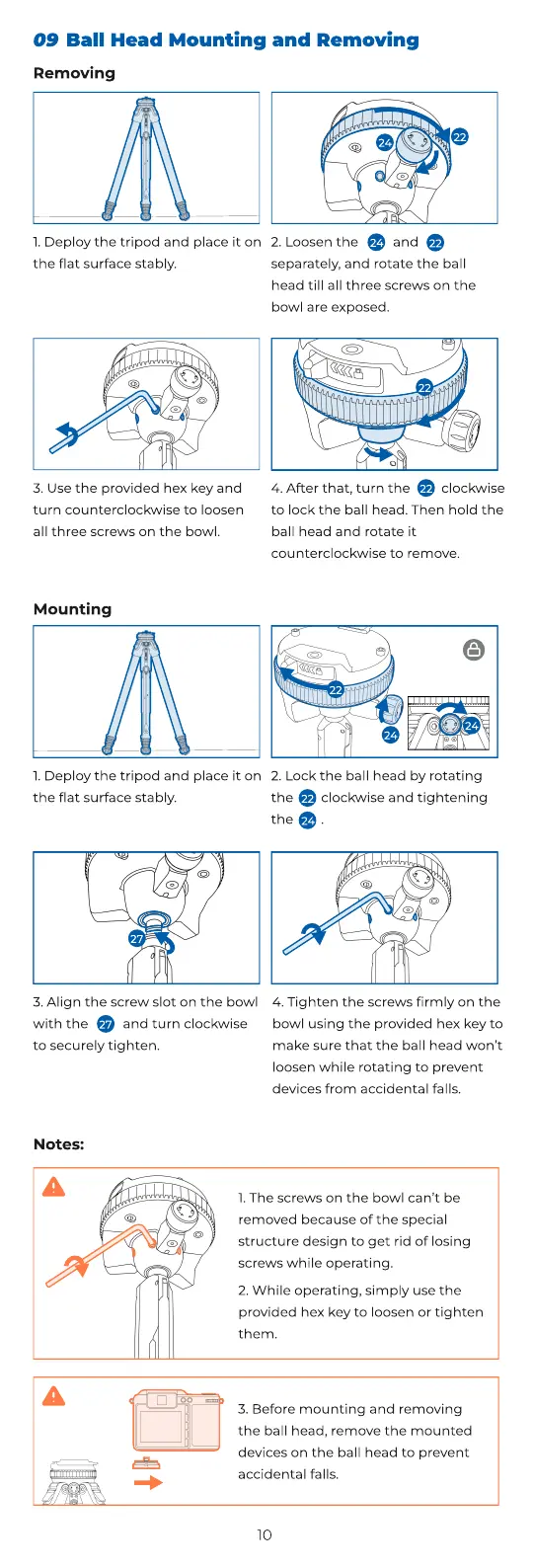

Ball Head Mounting and Removing09
10
1. The screws on the bowl can’t be
removed because of the special
structure design to get rid of losing
screws while operating.
2.
W
hile operating, simply use the
provided hex key to loosen or tighten
them.
3.
B
efore mounting and removing
the ball head, remove the mounted
devices on the ball head to prevent
accidental falls.
N
ote
s:
