13
ASSEMBLY

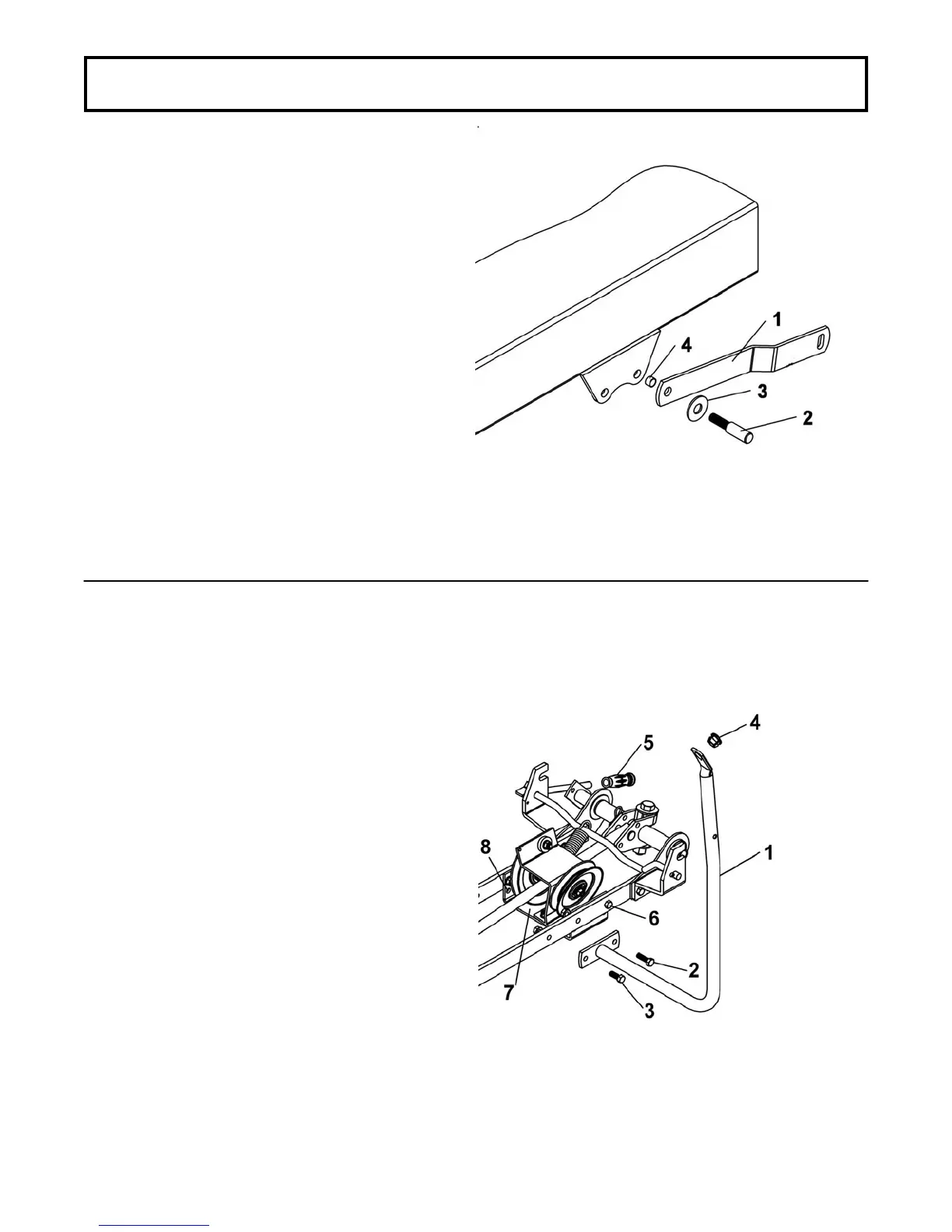

Remove the bolt that holds the left hand side mower
lift arm (item 1). Reinstall the lift arm by inserting (as
shown) the mounting pin (item 2), original sleeve (item
4) and flat washer (item 3) from the tractor.
Secure with the original nut inside the tractor frame.
Do the same operation on the right side.
Tighten firmly.
Install mounting pins
Install handle support
Install the handle support (item 1) on the left hand side
with a 3/8 x 1 1/4" hex bolt (item 2) and flange nut al-
ready in place, a 3/8 x 1" hex bolt (item 3) and flange
nut.
Tighten firmly.
Insert the plastic grommet (item 4) in the handle sup-
port.
Install the handgrip (item 5) as shown.
