BERMAD FP 400E - Page 4

BERMAD Fire Protection
400 Series

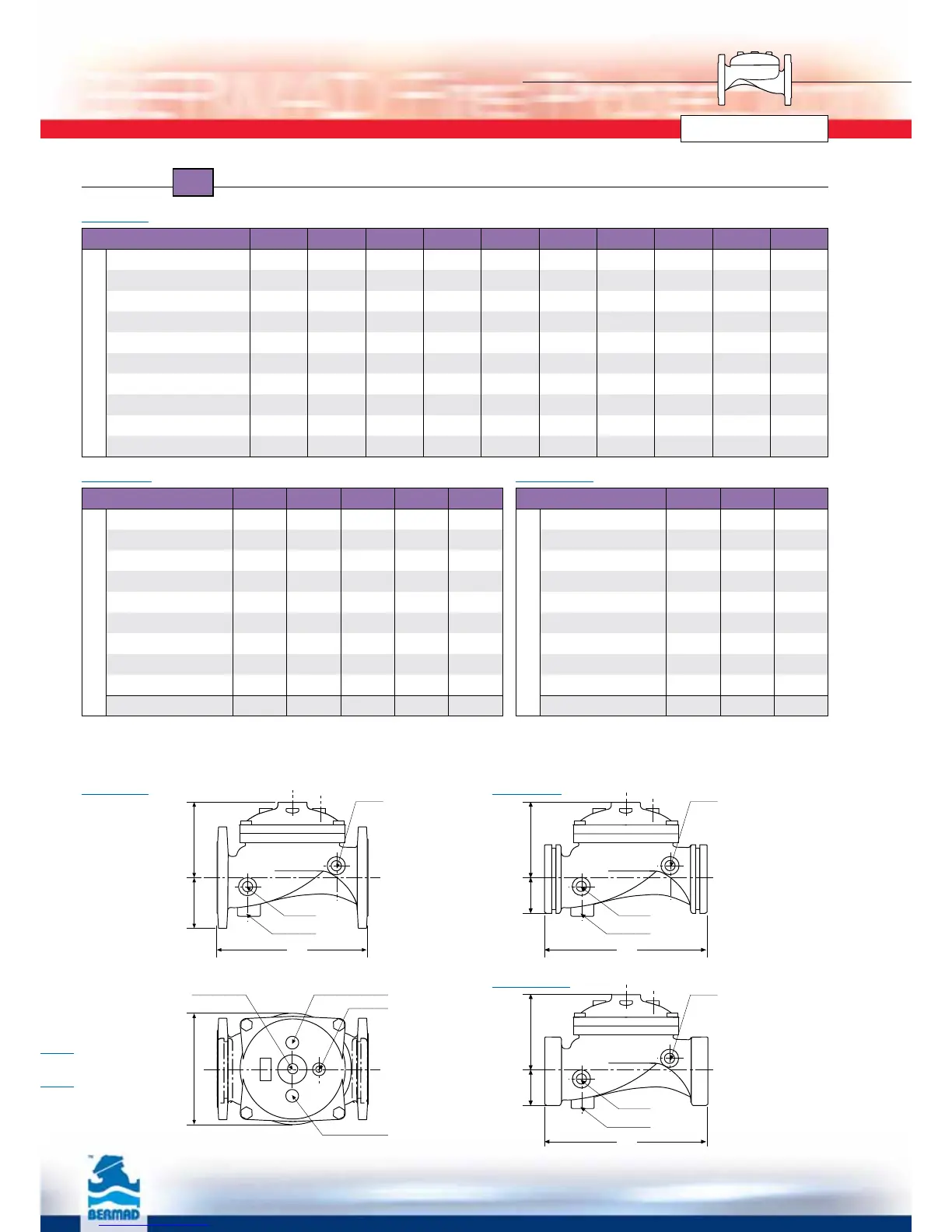

FP 400E Dimensions & Weights
Size DN mm (inch) 40 (1½”) 50 (2”) 65 (2½”) 80 (3”) 100 (4”) 150 (6”) 200 (8”) 250 (10”) 300 (12”) 350 (14”)
ANSI #150, ISO PN 16
LF
(mm) 205 205 205 257 320 415 500 605 725 741
W (mm) 155 155 178 200 223 306 365 405 610 597
H (mm) 74 74 86 110 130 205 256 256 373 373
RF (mm) 64 78 89 100 115 140 172 204 242 267
a
(1)
(inch) ½ ½ ½ ½ ½ ½ ½ ½ ½ ½
b
(1)
(inch) ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼
c
(1)
(inch) ½ ½ ½ ½ ½ ½ ½ ½ ½ ½
d
(2)
(inch) ¾ ¾ 1.5 1.5 2 2 2 2 2 2
Control Vol.
(3)
(Lit.) 0.12 0.12 0.18 0.29 0.67 1.94 3.86 3.86 13.8 14
Weight (Kg)
8 9 10.5 19 28 68 125 140 220 235
Metric
Si
Flanged
Grooved Threaded
LG
a
d
a
RG
H
LT
a
d
a
RT
H
a
d
LF
RF
H
a
b
C
b
b
W
Flanged Grooved
Threaded
Size DN mm (inch) 50 (2”) 80 (3”) 100 (4”) 150 (6”) 200 (8”)
Grooved
LG
(mm) 205 250 320 415 500
W (mm) 120 175 200 306 365
H (mm) 74 110 130 205 256
RG (mm) 30.2 44.5 57.2 84.2 110
a
(1)
(inch) ½ ½ ½ ½ ½
b
(1)
(inch) ¼ ¼ ¼ ¼ ¼
c
(1)
(inch) ½ ½ ½ ½ ½
d
(2)
(inch) ¾ 1½ 2 2 2
Control Vol.
(3)
(Lit.)
0.12 0.29 0.67 1.94 3.86
Weight (Kg) 5 10.6 16.2 49 108
Size DN mm (inch) 40 (1½”) 50 (2”) 65 (2½”)
ISO-7-Rp or NPT(F)
LT
(mm) 180 180 210
W (mm) 120 120 129
H (mm) 74 74 87
RT (mm) 30 37.5 40
a
(1)
(inch) ½ ½ ½
b
(1)
(inch) ¼ ¼ ¼
c
(1)
(inch) ½ ½ ½
d
(2)
(inch) ¾ ¾ 1½
Control Vol.
(3)
(Lit.)
0.12 0.12 0.18
Weight (Kg) 4 4 5.7
(1) (a), (b), (c) are NPT Thread ports
(2) (d) is BSPT threaded drain port
(3) (Control Volume) is Control Chamber Displacement Volume of Liquid pushed when valve opens
