Bernard S300 - Page 2

1
3
2
5
4
6
7
8
10
11
9
12
14
13
15
14
16
18
19
17
21
20
22
©
2008 Bernard Printed in U.S.A.

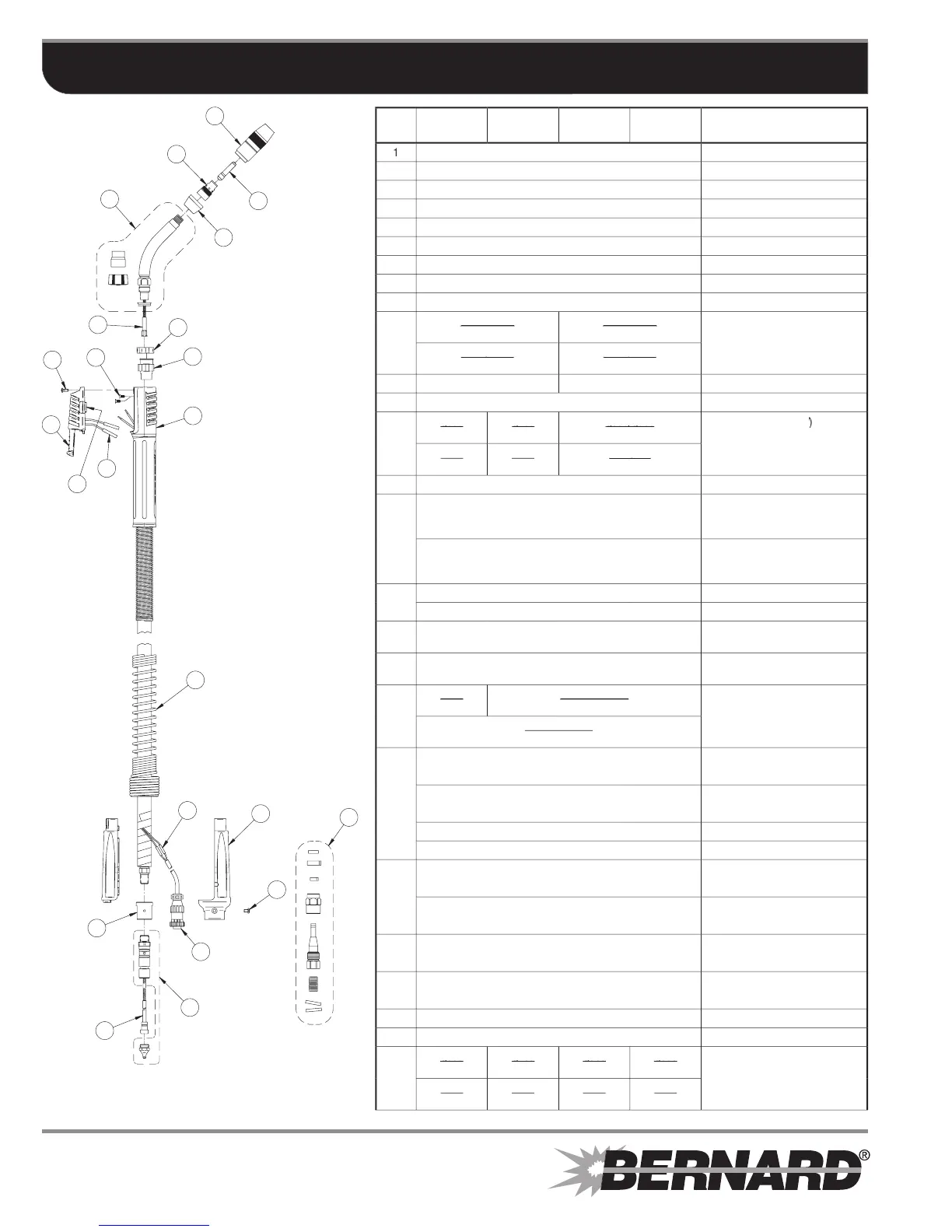

Replacement Parts List
ITEM #
Q300 / S300
PART #
Q400 / S400
PART #
Q500 / S500
PART #
Q600 / S600
PART #
DESCRIPTION
1
See Centerfi re Spec Sheet
Nozzle Assy
2
See Centerfi re Spec Sheet
Contact Tip
3
See Centerfi re Spec Sheet
Gas Diffuser
4
See Centerfi re Spec Sheet
Cap
5
See Neck Spec Sheet
Neck
6
See Jump Liner Spec Sheet
Jump Liner
7
1780074
End Cap
8
1680056
End Fitting, Q Tube Receiver
9
1880239
Handle Kit
(Includes Handle Screw)
NS
Q300 / Q400
Q300 / Q400
1680058
Q500 / Q600
Q500 / Q600
1680055
Stay-Tite™ End Fitting
S300 / S400
S300 / S400
1680059
S500 / S600
S500 / S600
1680057
NS
1540012
1540011
Stay-Tite™ Cone Nut
NS
407709-013
Jacket Clamp
(2 Req'd)
NS
Q300
Q300
4991
Q400
Q400
1520017
Q500/Q600
Q500/Q600
4993
Conduit Clamp (
2 Req'd
)
2 Req'd)2 Req'd
S300
N/A
S400
N/A
S500/600
S500/600
N/A
11
4209
Handle Screw
12
2690064
Trigger Assy, Std., Locking
(Includes 2 Butt Connectors & Std.
Plug)
2690067
Trigger Assy, Dual Schedule,
Locking
(Includes 4 Butt Connectors
& D/S Cover)
13
2190009
Plug, Std. Trigger
(Req'd for Std)
2690062
Speed Switch Cover
(Req'd for D/S)
NS
2620078
Leaf Spring, Dual Schedule
(Req'd
for D/S)
14
4932
Butt Connector
(4 Req'd Std., 8
Req'd D/S)
15
Q300
Q300
2520033
Q400 thru Q600
Q400 thru Q600
2520041
Spring Strain Relief
S300 thru S600
2520056
16
Strain Relief Kit
(Includes: Top &
Bottom Halves)
2520073
Strain Relief with Installed Gas Pin
(Bernard Direct Plug)
2520069
Strain Relief
(Euro Direct Plug)
2520066
Strain Relief
(All Other DP's)
17
GN2021
Electrical Plug-Non D/S
(Not Req'd
on Bernard or Euro DP)
20006A
Electrical Plug-D/S
(Not Req'd on
Bernard or Euro DP)
18
1010027
Adapter Block
(Not Req'd on
Bernard or Euro DP)
19
W11127-002
Screw, Strain Relief
(Not Req'd on
Bernard DP)
20
See Liner Spec Sheet
Liner
21
See Direct Plug Spec Sheet
Direct Plug Components
22
Q300
Q300
1983Q
Q400
Q400
1984Q
Q500
Q500
1985
Q600
Q600
1986
Rear Stay-Tite™ Repair Kit
S300
N/A
S400
N/A
S500
N/A
S600
N/A
