1.6 Overview of small parts
All small parts such as screws, nuts, washers, etc. that are required for assembly of the standard quilting
frame can be found in cardboard box 2.
The parts are packaged in bags or boxes. We recommend unpacking all parts and then sorting them based
on type. You can use the following tables to check the scope of delivery.
For identification purposes, each part has a code that is included in the list of parts required for the
respective task in the assembly instructions.
Note: The number of items included with the small and the large quilting frame can differ from the details
provided in the following tables. The differences are listed in the appendix. (see page64)
All rights reserved: Changes with regard to the equipment of the machine can be made at any time and
without advance notice for technical reasons and for the purpose of improving the product. The accessories
supplied can also be subject to changes, depending on the country of delivery.

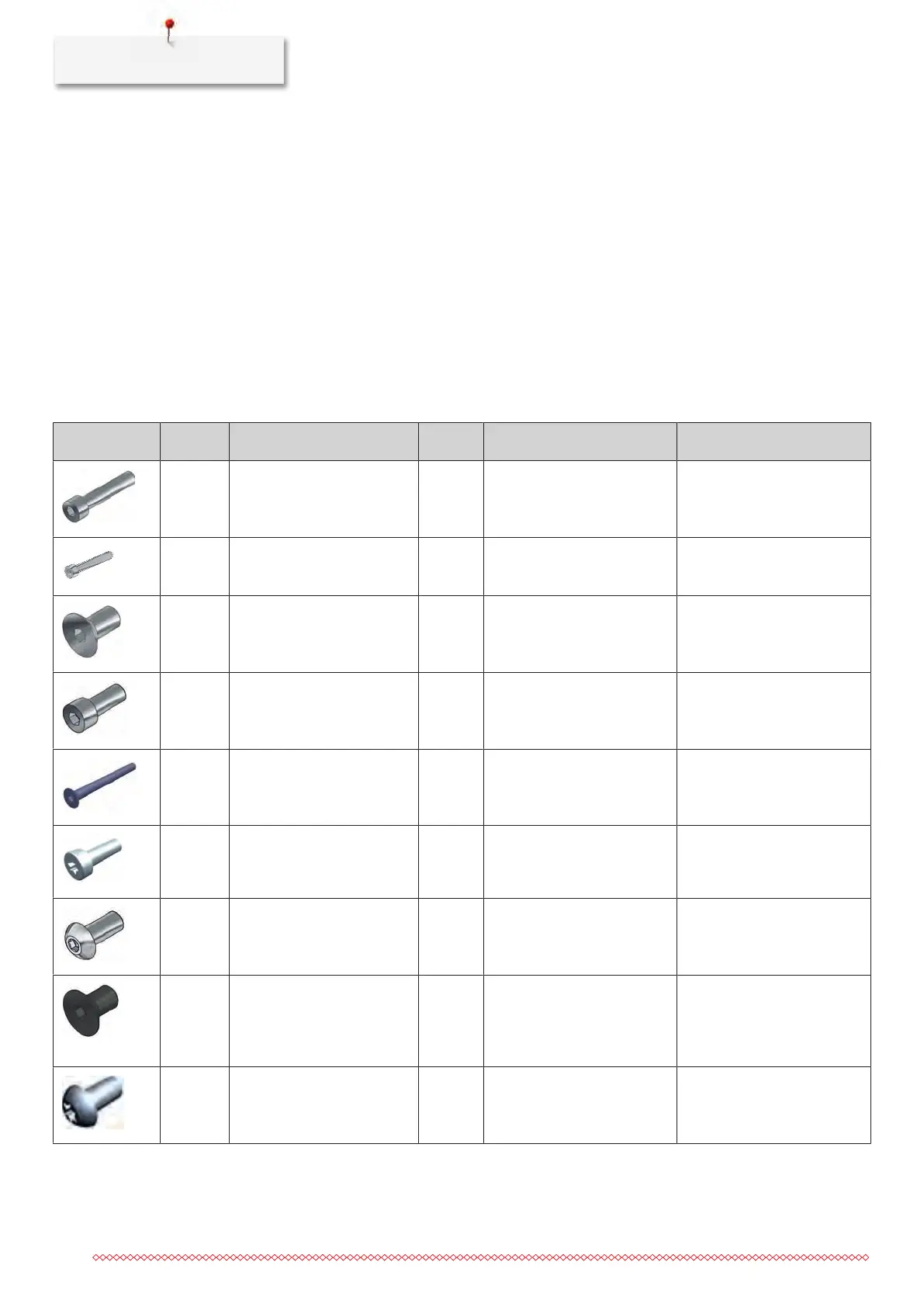

Figure Number Designation Code Tool Use
9 Head cap screw, M8×40 S1 Allen key no.6 Rail support assembly (8 pcs)
Carriage alignment (1 pc.)
3 Head cap screw, M8×50 S2 Torx T30 screwdriver Attaching the lower cross bar
1 Countersunk screw, M5×10 S3 Allen key no.3 Attaching the Take-up rail
2 Head cap screw, M8×50 S4 Allen key no.5 Assembling the Top rail
1 Countersunk screw, M4×45,
black
S5 Allen key no.3 Carriage alignment
16 Head cap screw, M4×16 S6 Allen key no.3 Track assembly
4 Button head screw, M5×12 S7 Allen key no.3 Attaching the storage trays
10 Countersunk screw, M8×14,
black
S8 Allen key no.5 Positioning tabletops (8 pcs)
Attaching the dead bar (2
pcs)
2 Button head screw, M6×12 S9 Torx T30 screwdriver Carriage alignment
