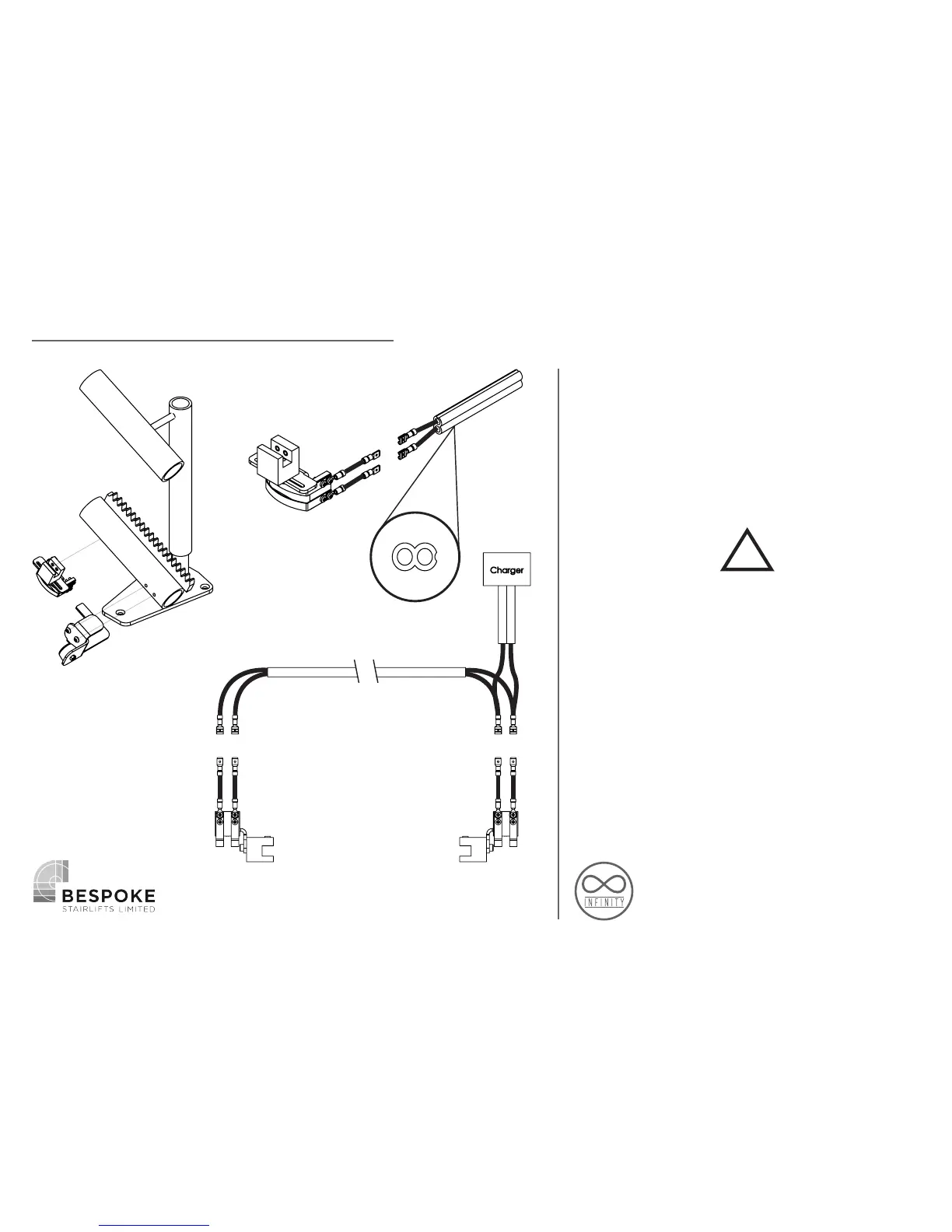

Place the charging terminals at the top
and bottom of the rail and connect to the
2 core cable as shown opposite.
Install the final end stop brackets at the
top and bottom of the rail, then turn on
the charger.
!
ATTENTION
When placing the final end stops and
charging points please ensure the
following points;
1. The lower skate of the carriage does not
touch the floor before engaging with the
final end stop. This could result in damage
to the skate mechanism.
2. When the charging terminals are
engaged make sure there is ONLY 5mm-
10mm gap between the final end stop and
the lower skate.
INSTALL RAIL CHARGE POINTS
+
+- -
+ -
+
-
