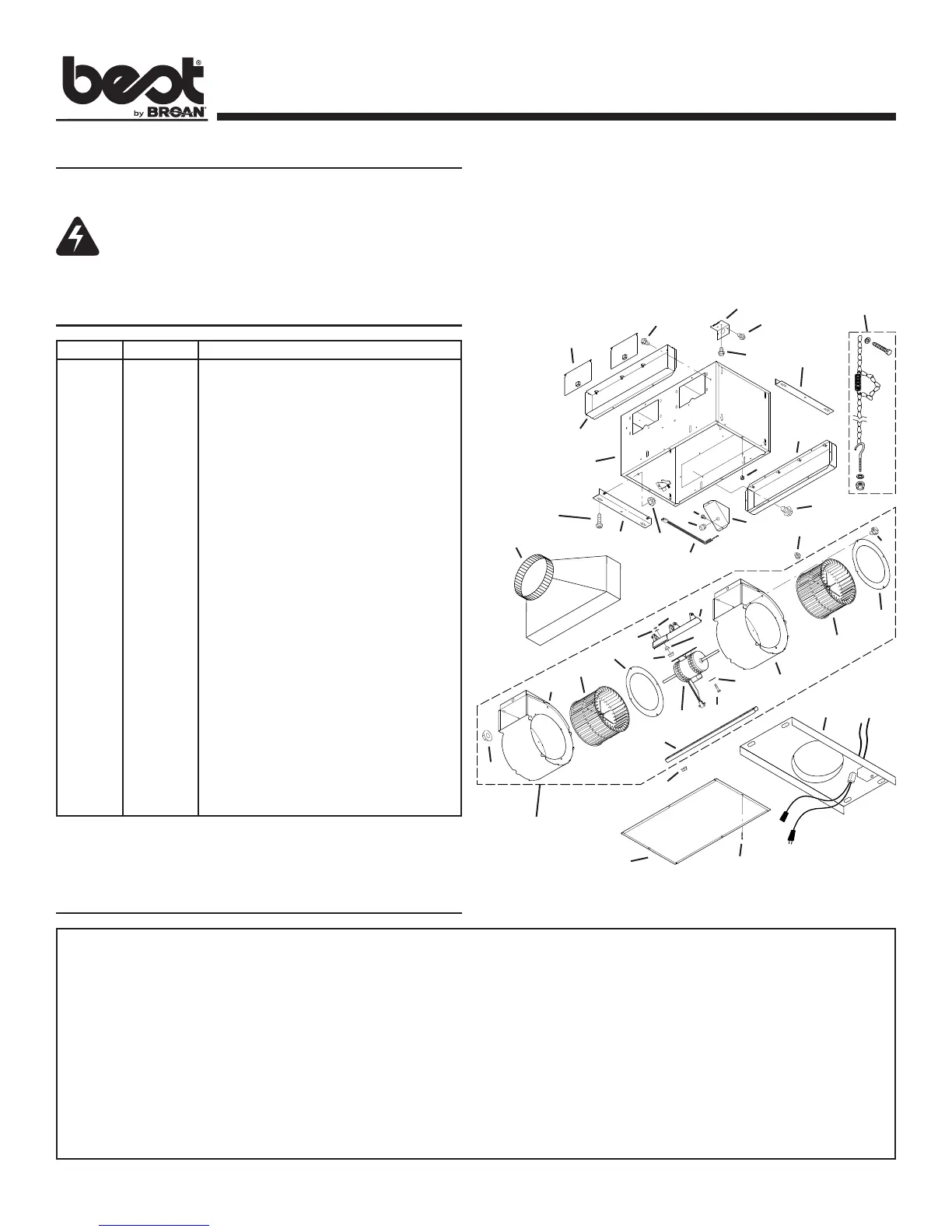

Page 4
MODEL ILB6
SERVICE PARTS
WARRANTY
KEY NO. PART NO. DESCRIPTION
1 97014746 Housing Assembly
2 97014728 Mounting Bracket (2 req.)
3 98009449 Duct Connector (2 req.)
4 97014822 Damper Flap Assembly (2 req.)
5 99150415 Screw, 8-18 x ¼ (18 req.)*
6 98005512 Wiring Plate
7 99150471 Ground Screw, 10-32 x ½ (2 req.)
8 98005513 Wire Box Cover
9 99400035 Strain Relief Bushing
10 97006039 Wire Harness
11 99260477 Nut, ¼-20 (12 req.)*
12 97014745 Scroll Assembly (2 req.)
13 99020273 Blower Wheel (2 req.)
14 98009399 Inlet Ring (2 req.)
15 99080488 Motor
16 97014794 Motor Mounting Bracket
17 99100497 Rubber Isolator (4 req.)
18 99160380 Screw, 10-24 x 7/8 (4 req.)*
19 99250399 Washer (4 req.)*
20 99260306 Nut, Hex 10-24 (4 req.)*
21 99250254 Washer (4 req.)*
22 93260456 Nut, Hex Flange 3/8-16
23 98009461 Scroll Mounting Channel
+ 97016793 Blower Assembly, Complete
(Includes Key Nos. 5, 11-21, 23)
(Key No. 22 not included)
24 98009464 Access Panel
25 99420470 Access Panel Nut (4 req.)
26 99150472 Access Panel Mounting Screw (4 req.)
27 99150591 Screw, 10-16 x 7/8 (4 req.)
28 97016791 Hanger Kit
29 S423 Transition 4.5 x 18” to 10” Round
30 97014597 Rough-In Kit
Order replacement parts by PART NO. - not by KEY NO.
* Standard hardware - may be purchased locally..
+ Not shown assembled.
1
2
3
5
23
13
14
12
12
8
6
9
24
15
7
14
13
16
17
18
19
20
21
22
11
10
26
25
5
5
2
11
27
4
11
5
11
3
5
BLOWER
ASSEMBLY
99043701C
29
28
WARNING: To reduce the risk of electric shock,
disconnect from power supply before servicing.
To clean blower assembly: Remove access panel, unplug blower
from housing, remove blower mounting nuts, and carefully remove
blower from housing. Use appropriate vacuum attachment or a
soft cloth and mild soap or detergent to clean blower discharge
area and wheel. DO NOT ALLOW WATER TO ENTER MOTOR.
Make sure blower assembly is completely dry before reinstalling.
Motor is permanently lubricated. Do not oil or disassemble motor.
USE AND CARE
Follow wiring instructions packed with range hood, and adhere to
all local and state codes, and the National Electrical Code.
30
BROAN ONE YEAR LIMITED WARRANTY
Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date
of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does not cover (a) normal maintenance and service or (b) any
products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan), faulty installation or installation contrary to
recommended installation instructions.
The duration of an implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to you.
BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WAR-
RANTY. BROAN SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE
OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan at the address or phone number stated below (b) give the model number and part identification and (c) describe the
nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.
Best by Broan, P.O. Box 140, Hartford, WI 53027 (1-800-637-1453)
