3 - English

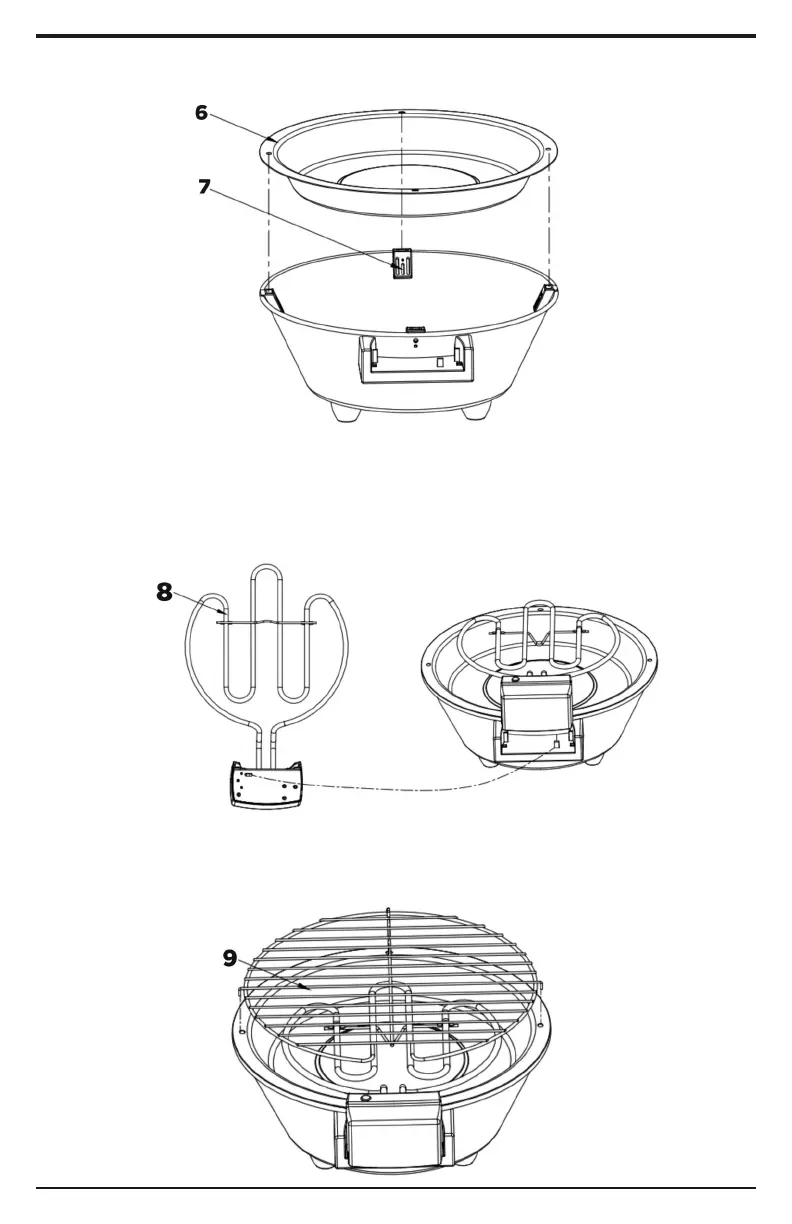

4) Position the heating element on the main housing body, making sure it is aligned with the
heating element switch base. There is a protruding peg on the switch base that de-activates the
safety cut-off switch in the heating element assembly. They must be properly aligned in order
for the unit to heat 8. Heating element
3) Position the catch pan on the main housing body, three holes in the catch pan should be
aligned with three supports. 6. support 7. catch pan
5) Position the grill rack. Three downward pointing spokes should be aligned with and placed
into the corresponding holes on the catch pan.
9. Grill rack
