Beyerdynamic DT 290 - DT 294 V.11 Microphone Specs

30
DT 294 V.11
Microphone
Transducer type . . . . . . . . . . . condenser (back electret)
Frequency response . . . . . . . . 30 - 18,000 Hz
Polar pattern . . . . . . . . . . . . . cardioid
Output voltage at a distance
of 5 cm . . . . . . . . . . . . . . . . . .
approx. 52 mV - 1.3 V adjustable
Nominal impedance . . . . . . . . 400 Ω
Current consumption . . . . . . . 6 - 56 mA
Supply voltage . . . . . . . . . . . . 6 - 27 V
Weight . . . . . . . . . . . . . . . . . . approx. 20 g

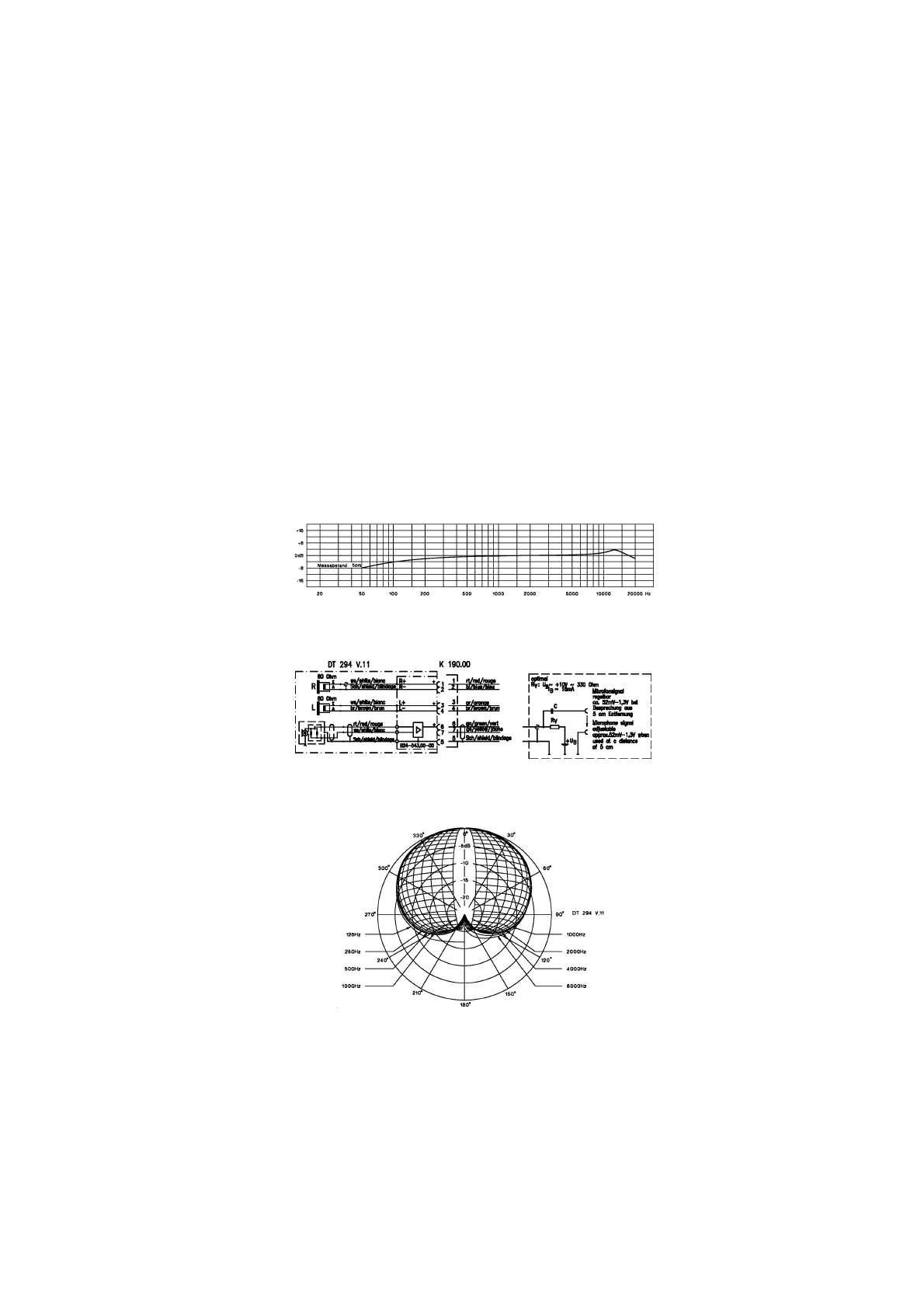

Frequency Response Curve
Wiring Diagram
Polar Pattern
Frequency response curve ± 2.5 dB DT 294 V.11
