Beyerdynamic Opus 100 Mk II - Beltpack Transmitter Audio Input Connections

34

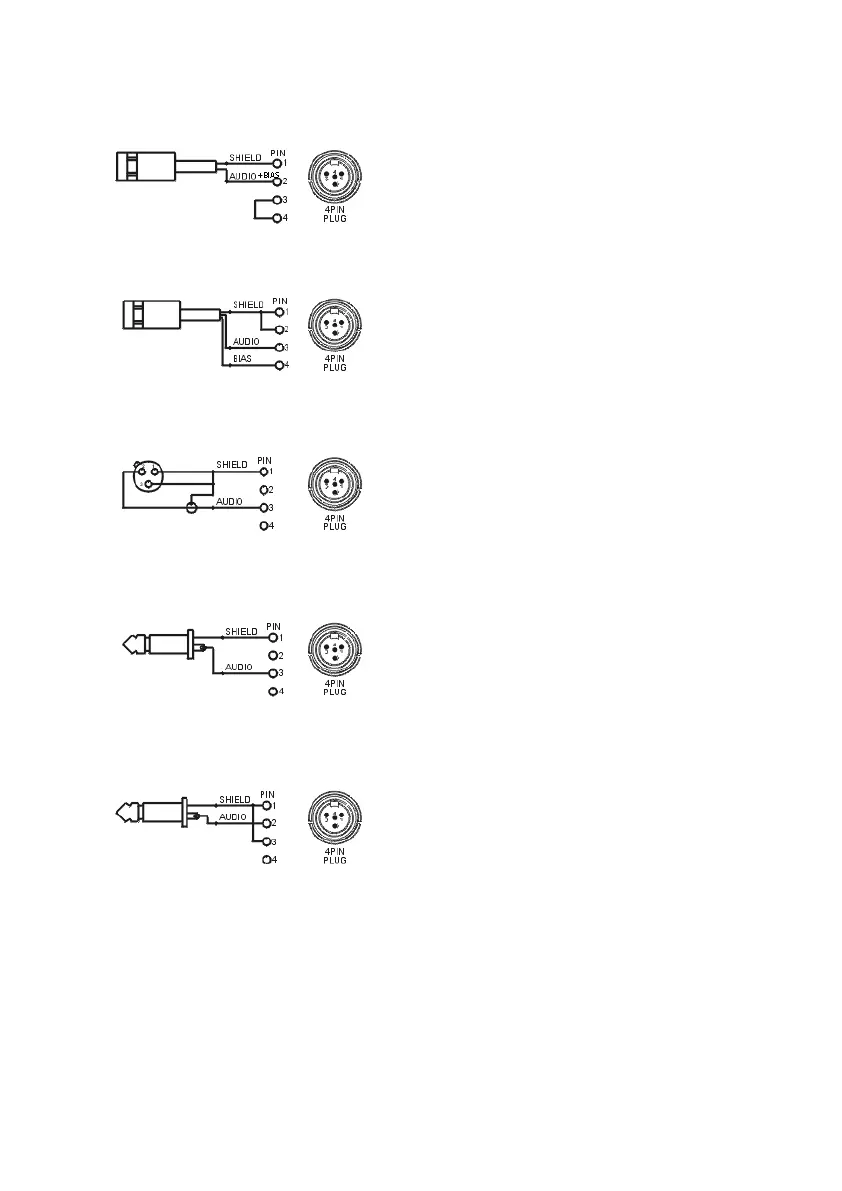

3.5 AF Connection
(1) 2-Wire Electret Condenser Microphone Capsule
(2) 3-Wire Electret Condenser Microphone Capsule
(3) Dynamic Microphone
(4) Electric Guitar
(5) Line-in (impedance 8Ω, attenuation 10 dB)
e.g. Opus 54.18,
Opus 55.18 Mk II
e.g. MCE 5.18,
MCE 10.18,
MCE 60.18
