OPERATING INSTRUCTIONS Opus 100
Thank you for selecting the Opus 100 wireless system. Please take some time to read
carefully through this manual before setting up the equipment.
The Opus 100 system has a single frequency in the VHF frequency range 174 to 236 MHz or in
the UHF frequency range 798 to 862 MHz.
1. NE 100 Diversity Receiver
1.1 Controls and Indicators

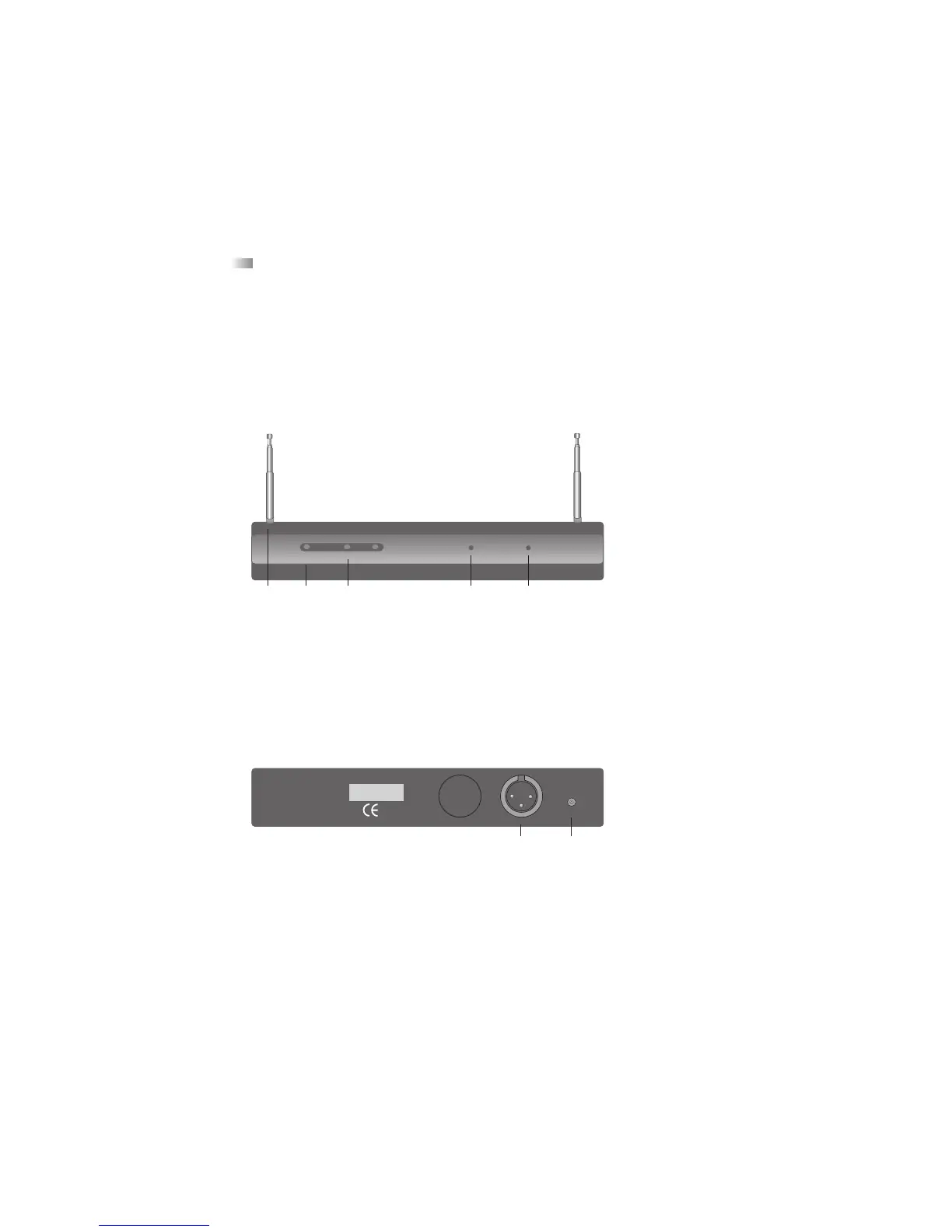

Front view
(1) Telescopic antennae (fixed)
(2) Power On / Mute LED
(3) Diversity LEDs A/B (Antenna A Antenna B)
(4) Squelch control
(5) Output level control (balanced output signal, 3-pin XLR)
Rear view
(6) AF-output, 3-pin XLR, balanced output signal
(7) DC-connection for external power supply unit
NE 100 V VHF Receiver
beyerdynamic))))
Opus
On/Mute Antenna A Antenna B
Squelch
min max
Out Level
min max
(1) (2) (3) (4) (5)
Output
12V AC/DC
xxx,xxx MHZ
Made in EC
beyerdynamic))))
Wireless Stage Systems
(6) (7)
