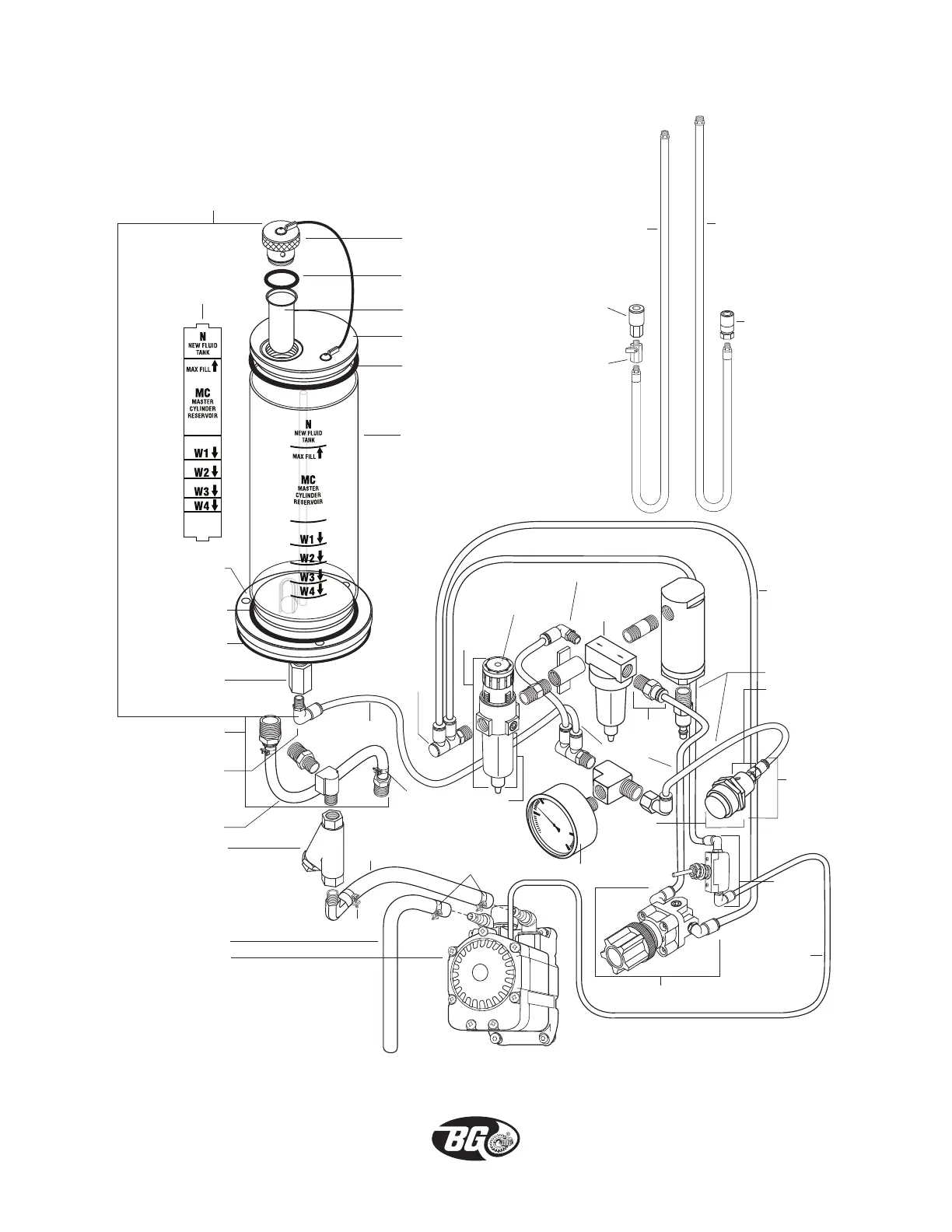

Bg PF7 - Plumbing

FLOW
G0170
2-way
MVM 12
switch
G0003-156
EPDM O-ring #156
G0100-04250
25´roll
1
/4˝
nylon tubing
PF7-004
Canister bottom
E101-2640
Brake canister body-
printed
Also available unprinted:
PF7-005
Console canister body
PF7-016
100 PSI
regulator
CT304
11
/16˝ band clamp (17mm)
3
/8˝ EPDM
3
/8˝ EPDM hose
G0003-153
EPDM O-ring #153
G0003-153
EPDM O-ring #153
PF7-003 E100-2605
Canister top w/ fill cap
PF7-009
Filter screen
PF7-014
Fluid level
plate
PF7-019
1-quart canister
assembly
G0003-120
EPDM O-ring #120
PF7-008
Fill cap w/lanyard
PF9101
1
/4˝ Y-strainer
PF9102P
Air pump for PF9
(replaces PF7-015)
PF91021-25
25´ roll
3
/8˝ black hose
PF91020-25
25´ roll
1
/4˝ black hose
G0100-04250
25´ roll
1
/4˝ nylon tubing
1
/4˝ EPDM hose
G0100-04250
G0100-04250
G0100-04250
G0100-04250
25´roll
1
/4˝
nylon tubing
PF91018
Female QC
for suction
hose
PF505
1
/4˝ chrome
ball valve
PF9111
Female QC
for pressure
hose
PF91017
Pressure hose
assembly includes
PF9111, PF505
PF91016
Suction hose
assembly
Includes
PF91018
CT304
PF7-037
Regulator
adjustment
knob for PF7
PF7-032
3-way poppet
valve
PF7-027
Pressure
release
PF7-029
1-quart regulator
(panel regulator)
PF7-017
Coalescing
filter
PF7-031
PF7-039
New fluid hose
retrofit kit
PF7-041
PF7
pressure
release
assembly
G0181-0404
PF7-001
Canister nut
G0055-014
14MM
screw-type
band clamp
PF9104
G0184 -0404
Push to connect,
1
/4˝ MNPT x
1
/4˝ tube,
double elbow, brass
PF9105-1
Replacement
filter bowl
for PF9105
and PF7-016
G0181-0404
Push to connect,
1
/4˝ MNPT x
1
/4˝ tube,
90° elbow, brass
R00 ©copyright 2021 BG Products, Inc. • Wichita, Kansas 67213 • www.bgprod.com
PF7 Brake Service System
PLUMBING
