If it becomes necessary to remove drawers, follow these drawer removal instructions:

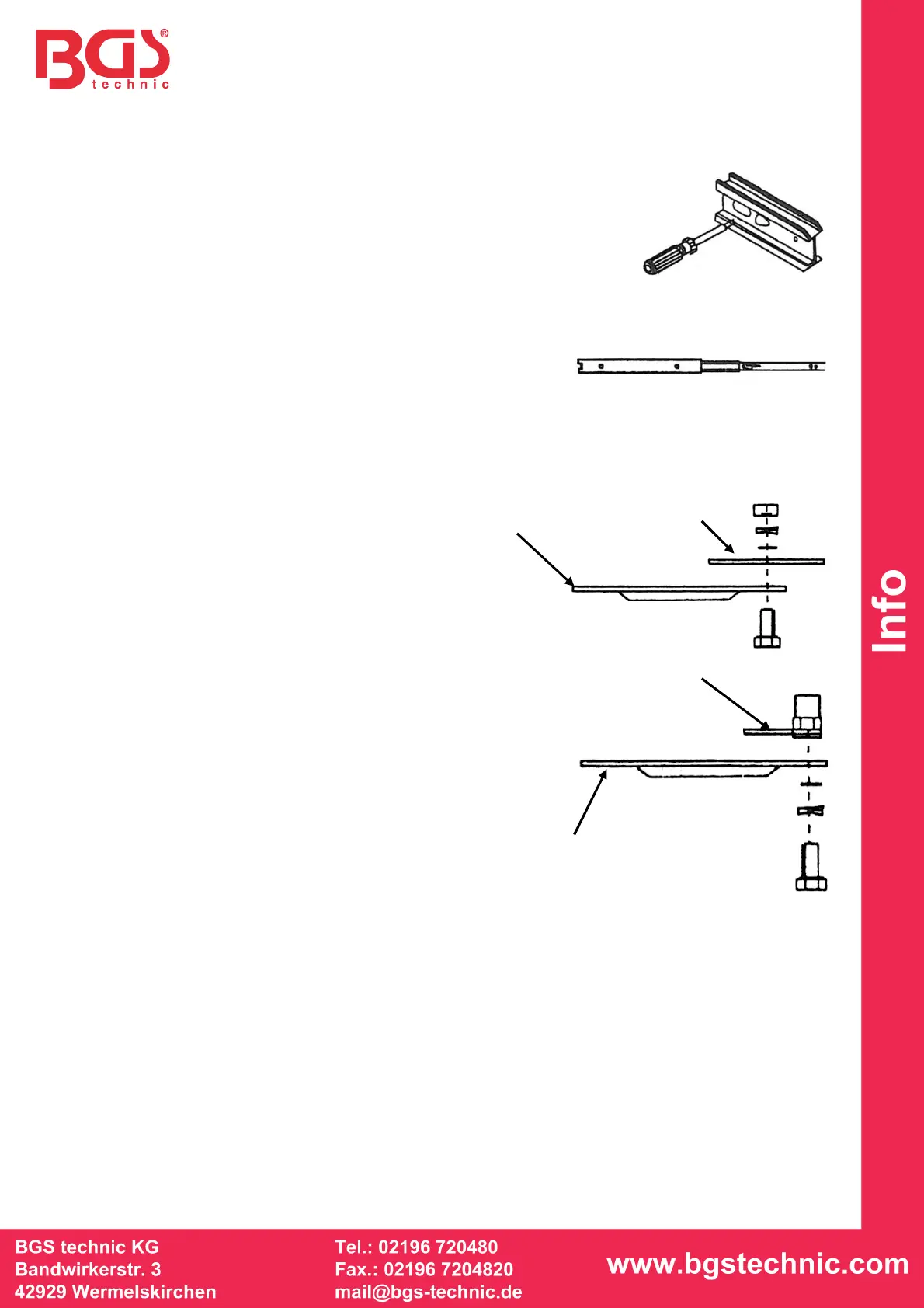

1. RolI Formed Drawer Slides
1) Pull drawer all the way open then push back a fraction of an inch.
2) Insert a screwdriver into this slot in the slide and push in on the stop
until it clears the lance. Repeat the procedure on the other slide and
remove drawer.
3) To re-install drawer, pry stop far enough out to engage lances (3/16"
to 1/4") and push drawer onto slide until stops engage lances.
2. Ball Bearing Drawer Slides
Ball bearing slides have black retaining clips. To remove
drawer, the retaining clips need to be released by pushing lever
up (right hand side of slide) and down (left hand side of slide)
simultaneously, and pulling drawer out (Figure 3).
To re-install drawers, simply place drawer onto slides and push
in fully.
Casters and Side
Handle
Roll cabinet is supplied with heavy duty casters, including two
swivel casters with brakes and two fixed casters. The side
handle must be fixed on the same side as the swivel casters.
Warning
1. Do not open more than one loaded drawer at a time.
2. Close lid, lock drawers and door before moving.
3. Do not stand on the product. You may fall which may cause personal injury.
4. Do not mount the product on truck bed or any other moving object.
5. Apply brakes on swivel casters when not moving unit.
6. Do not pull, push to move.
7. Do not step in the drawers. You may fall which may cause personal injury.
8. Lubricate the top and bottom channels of the drawer slides at least twice a year.
Bottom
Bottom
Bottom
Bottom
with Door
without Door
