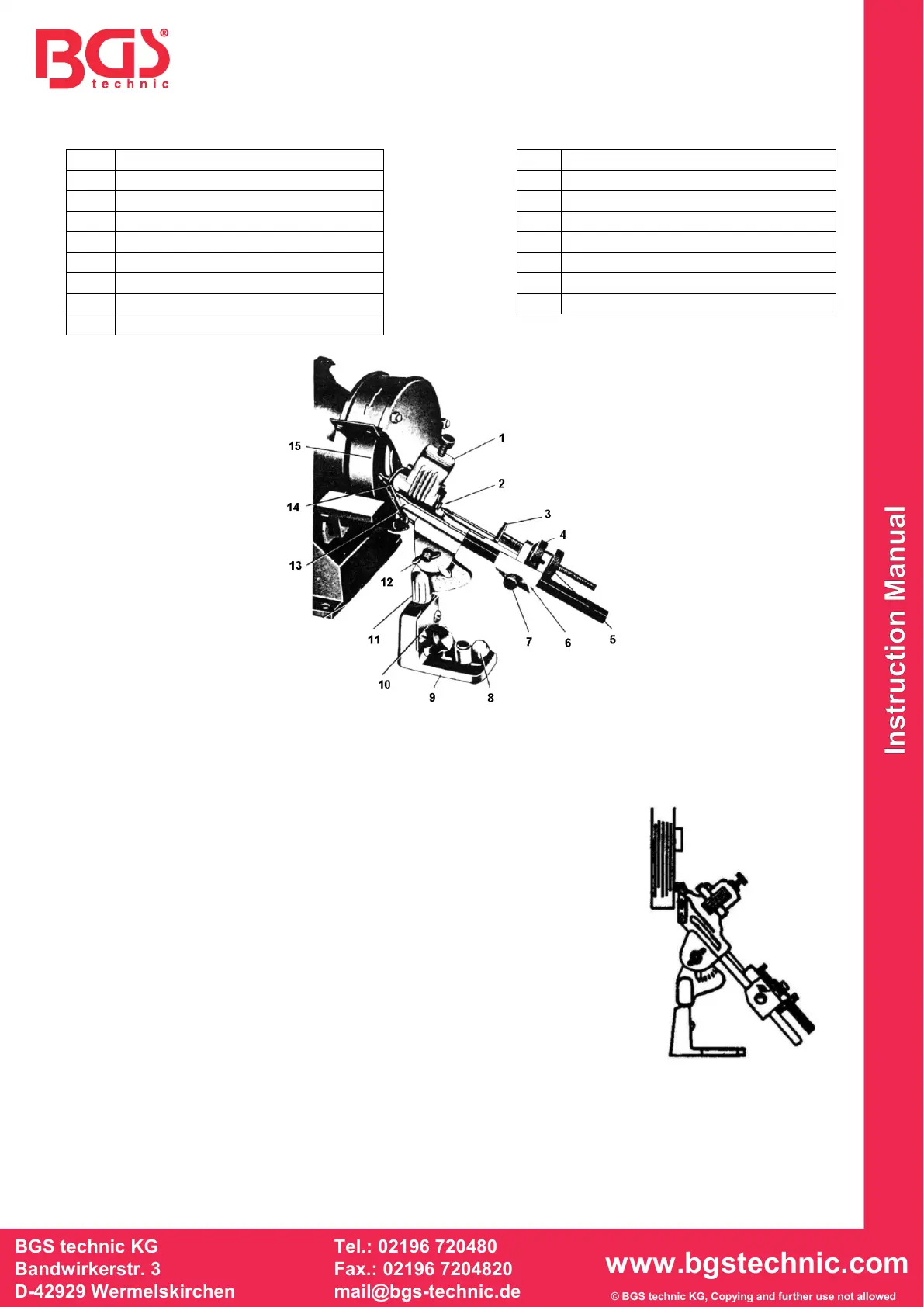

STRUCTURE
No.
Designation
No.
Designation
1
Spring mounted attachment
9
Slotted base
2
Bit tray
10
Horizontal swivel bearing
3
Bit stop
11
Swing axis
4
Adjustment screw
12
Thumbscrew
5
Control screw
13
Bit lip stop
6
Feed slide
14
Bit tray tip
7
Feed slide lock screw
15
Grinding disc
8
Wing nut
MOUNTING
1. Firmly mount the grinding machine, e.g. on a workbench. In doing so,
make sure that sufficient space is available at the side of the grinding
machine for the installation of the drill grinding attachment. In addition,
the grinding disc protective cover disc must be adjusted to enable the
free area of the grinding disc to be opposite the drill grinding
attachment. The drill bit should be sharpened by an area of the grinding
disc that is on the left of the drive hub of the machine and which is
preferably at the same level or slightly lower than the drive hub of the
grinding machine
2. Position the drill grinding attachment in front of the grinding disc and
parallel to the grinding disc. Mount the drill grinding attachment with a
wing nut (8) onto the workbench (distance to the grinding disc approx. 6
cm). If necessary, insert a spacer (wood) in order to obtain the correct
height to the grinding disc.
3. To determine the correct distance from the grinding disc, if necessary,
insert a drill bit and fit the attachment exactly in front of the grinding
disc.
