8.

Power

Transformers

“MEGGER”

INSULATION

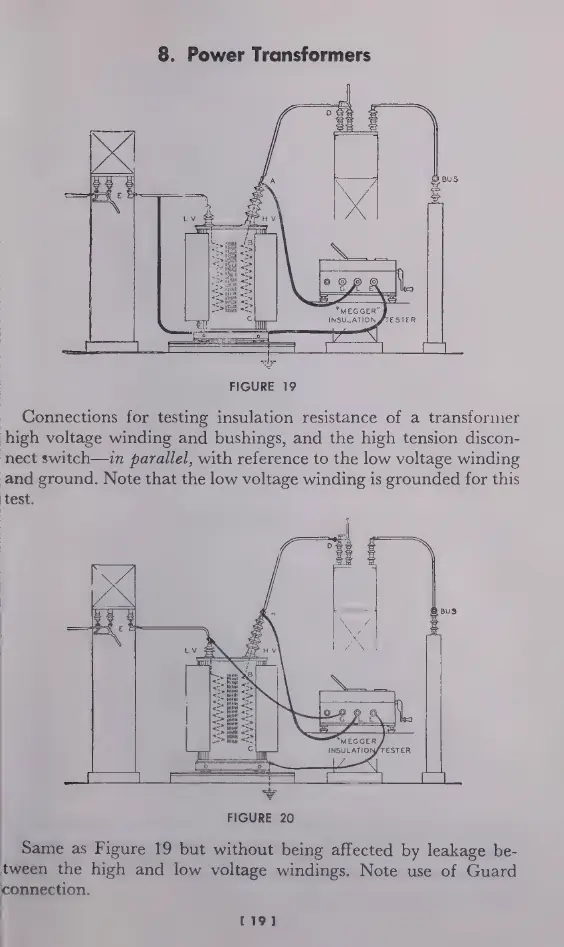

FIGURE

19

Connections

for

testing

insulation

resistance

of

a

transformer

high

voltage

winding

and

bushings,

and

the

high

tension

discon-

nect

switch—in

parallel,

with

reference

to

the

low

voltage

winding

and

ground.

Note

that

the

low

voltage

winding

is

grounded

for

this

test.
