WGR – Worm Gear Reducer
Instruction and operating manual
© Copyright by BIFFI Italia. All right reserved MAN 684/Rev 5 Page 19

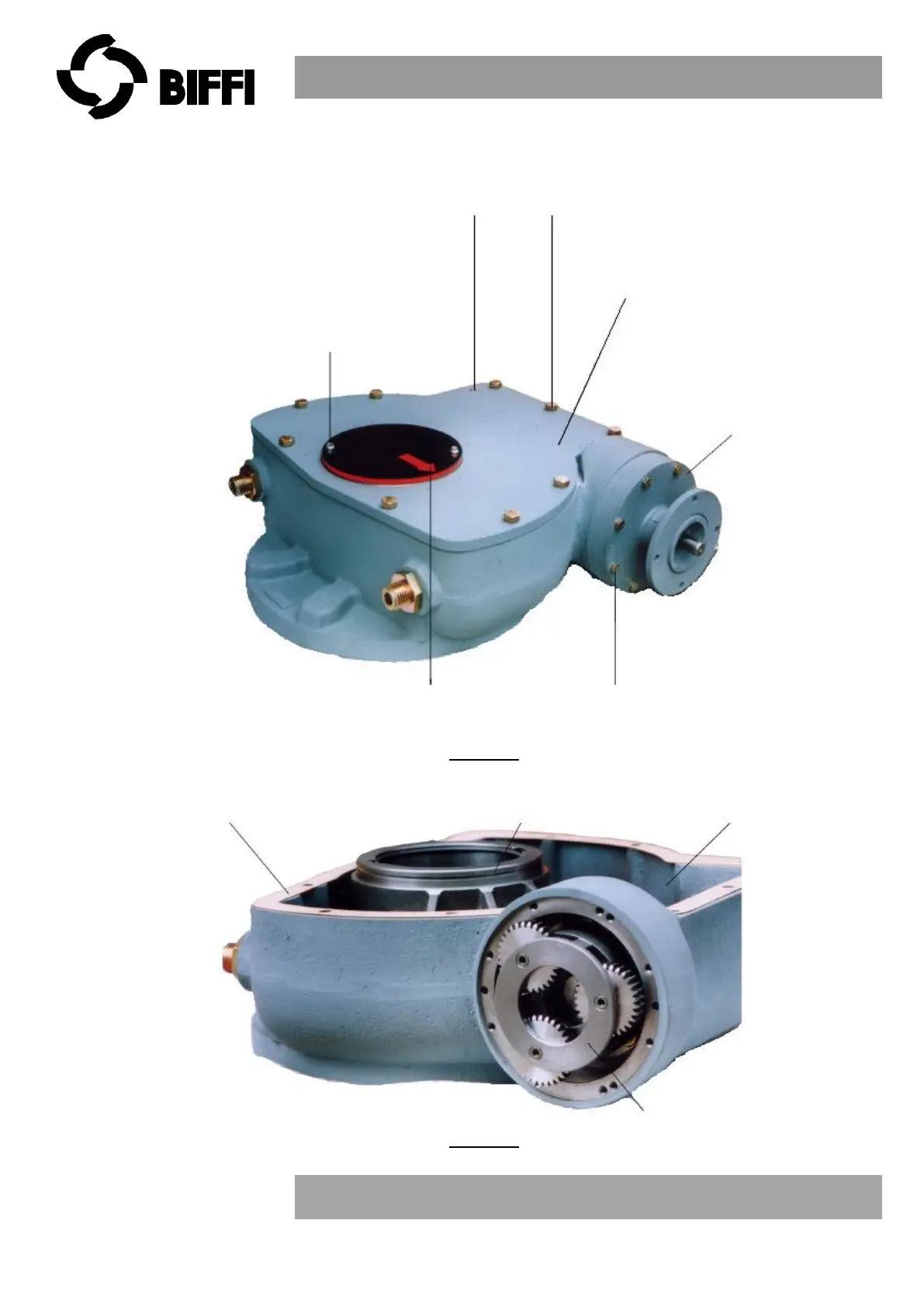

Picture 6
Picture 7
(3) position indicator
(6) upper cover
(8) trunk
(7) screws: unscrew to
remove the trunk
Main Reduction
Epicyclical Reduction
(9) Flexoid gasket
(10) o-ring
(5) screws: unscrew to remove
the upper cover
(4) cylindrical pin: release it
to remove the upper cover
(2) screws: unscrew to remove
position indicator
