ELECTRICAL CONT.

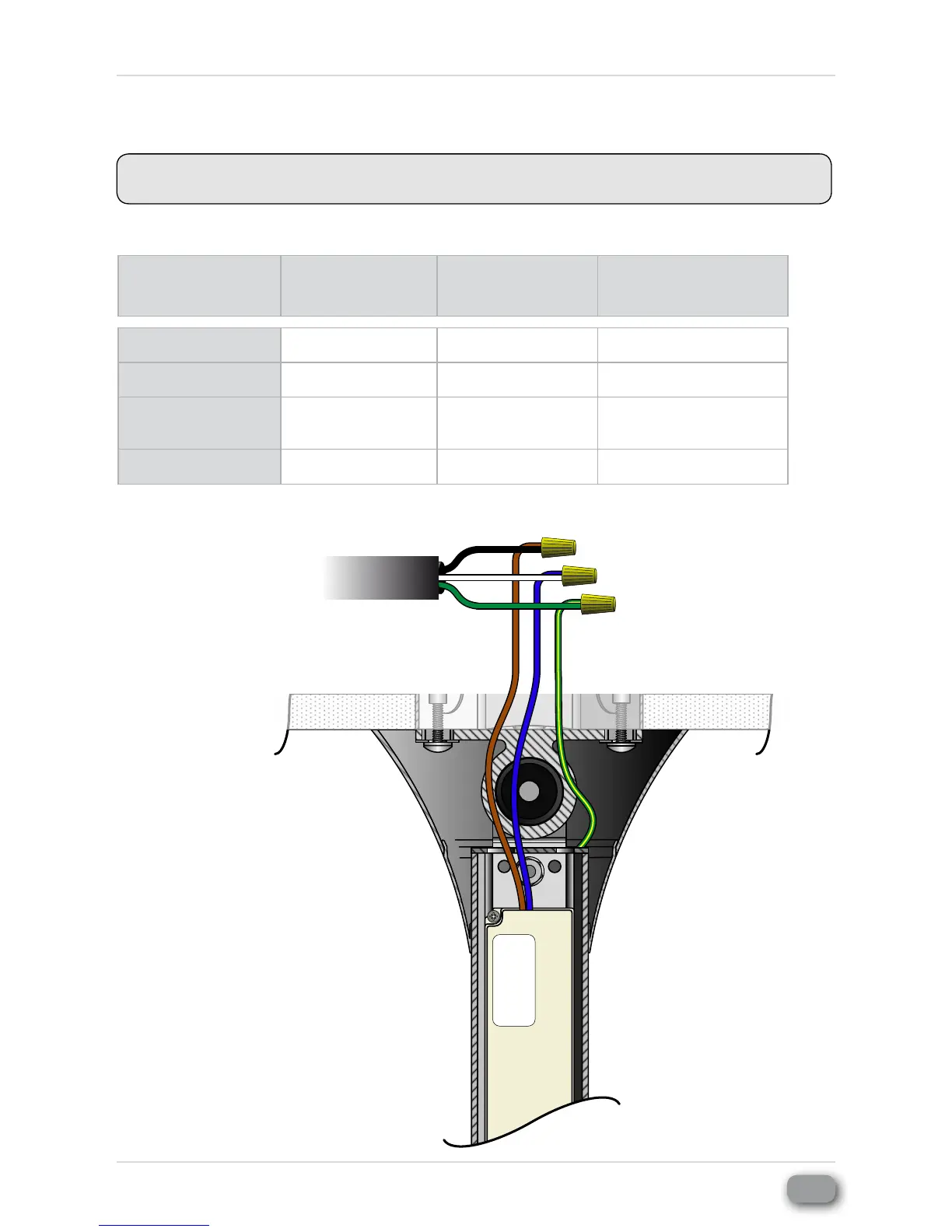

Wiring diagram
Wire color chart
50/60 Hz Compatible
Fan Power Supply
Wire Color
AC Line (L1)
Brown
AC Line/Neutral (L2/N)
Blue
Earth/PE
(connected to fan chassis)
Green with Yellow Tracer
North America
100-120V System
Black White Green or Bare Copper
North America
208-240V System
Black, Red, or Blue Red, Blue, or Black Green or Bare Copper
European Union (EU),
United Kingdom
220-240V System
Brown, Black, or Grey Blue Green with Yellow Tracer
Australia*
240V System
Brown or Red Black or Light Blue Green with Yellow Tracer
*Special Note: If installing the fan in Australia, a licensed electrician must perform the electrical
installation.
WARNING: Do not connect the fan to a damaged power source! Do not attempt to resolve electrical
failures on your own. Consult a qualified electrician if uncertain of the electrical installation of this fan.
AC Hot / L1
AC Neutral / L2
PE / Earth Ground
Brown
Blue
Green/Yel
+12VDC, 30W
Power Supply
Switched 100-240VAC 1Ф,
50-60Hz, 0.36A
Ensure power is disconnected before installing the fan!
