- EN 4 -

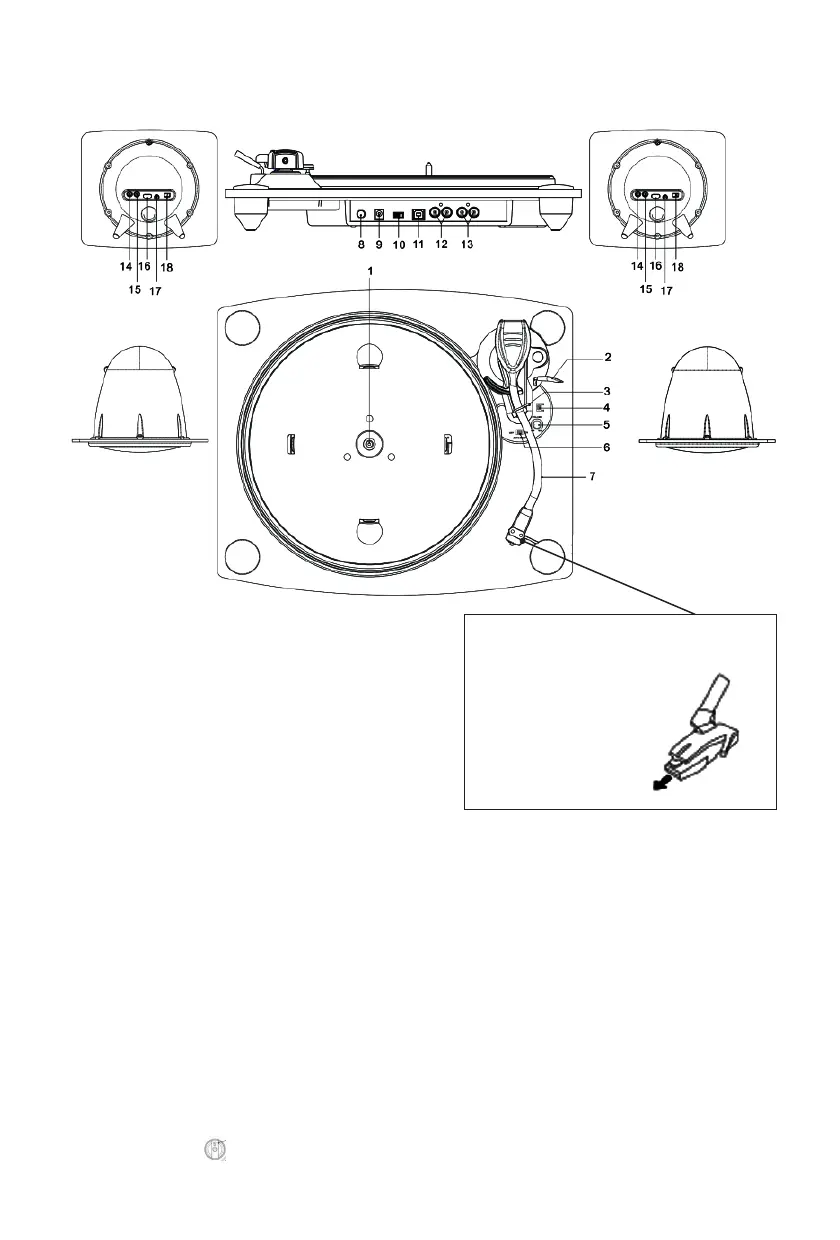

Description of Parts
Before using the turntable,
detach the stylus guard
(white plastic cover) by
pulling it straight off the
front of the cartridge in the
direction of the arrow.
•
Turntable
1. Platter
2. Cue lever
3. Tonearm holder
4. Speed selector (33/45)
5. Volume (Max ….Min)
6. Auto Stop (On/Off)
7. Tonearm
8. Power on / Standby
9. DC 12V in for AC cord
10. BT / Phono switch
11. USB jack (to connect to computer)
12. Line out R & L for amplier
13. External speaker connection jacks
Speaker
14. Connect speaker
15. Bluetooth pairing
16. DC in for AC adapter
17. Light indicator
18. Power On/Off
45 RPM adaptor (packed with Instruction Manual in separate polybag)
• Place the 45 RPM adaptor over the central spindle when playing 45 RPM records)
