Biketronics BT1002 - Final Connections and Checks; Speaker Wire Connections; Module and Harness Connections; Post-Installation Checks

Page 7 of 10
Final Connections - see photo #5
 Connect speakers using wire leads in Harley OEM wire harness:
Harley wire colors for fairing speaker connections
Air cleaner side
Gray/red stripe
Speaker positive (red dot or "+")
Air cleaner side
Light Green/black stripe
Speaker negative
Kick stand side
White/orange stripe
Speaker positive (red dot or "+")
Kick stand side
Light Green/white stripe
Speaker negative
 Item #1 - Plug Black cable from Biketronics (Orange) module into jack in rear of radio.
Cable must point straight up toward windscreen.
 Item #2 - Plug antenna lead in rear of radio.
 Item #3 - Plug radio wire harness Black connector into rear of radio and White connector into
harness from Biketronics (Orange) module.
 Item #4 – Depending on model year, make connection between Biketronics (orange module)
and Harley wire harness:
 (1998-2011) - plug Harley (Black) 23 pin connector into Biketronics (Orange) module.
 (1996-1997) - plug Harley 8 pin and 12 pin connectors into Biketronics (Orange) module.
 Use included zip ties to secure module and harness.
 Reconnect battery cables to Harley battery – positive cable first.
 Install radio face onto radio.
 Check radio functions with handle-bar radio control buttons. Refer to pages 8 & 9 for
Automatic Volume Control (AVC) programming and handle-bar radio control functions.
 Reinstall fairing and go riding.

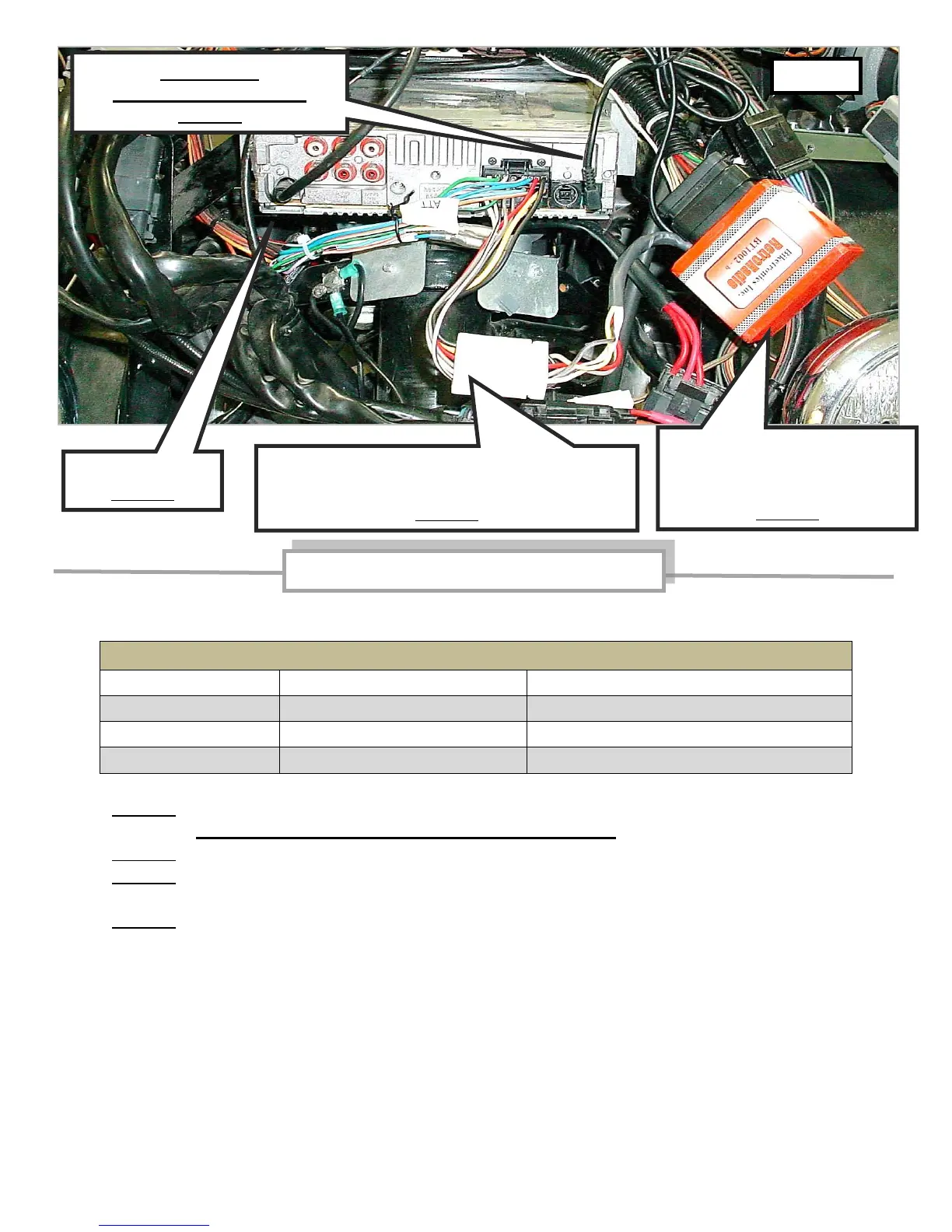

Radio antenna
