Activating the Cruise Control Function
Use the POWER button to turn on your display. Next, hold the UP and DOWN buttons within
5 seconds of turning on the display. The SPEED display should start flashing. If you don't get
it the first time, turn the display off and then turn it on again before holding the UP and DOWN
buttons.
Press the POWER button THREE times until the information on the screen stops flashing.
Then HOLD the UP and DOWN buttons for 5 seconds. Press the POWER button FIVE times
until you see P5 appear on the display and the information is no longer flashing.

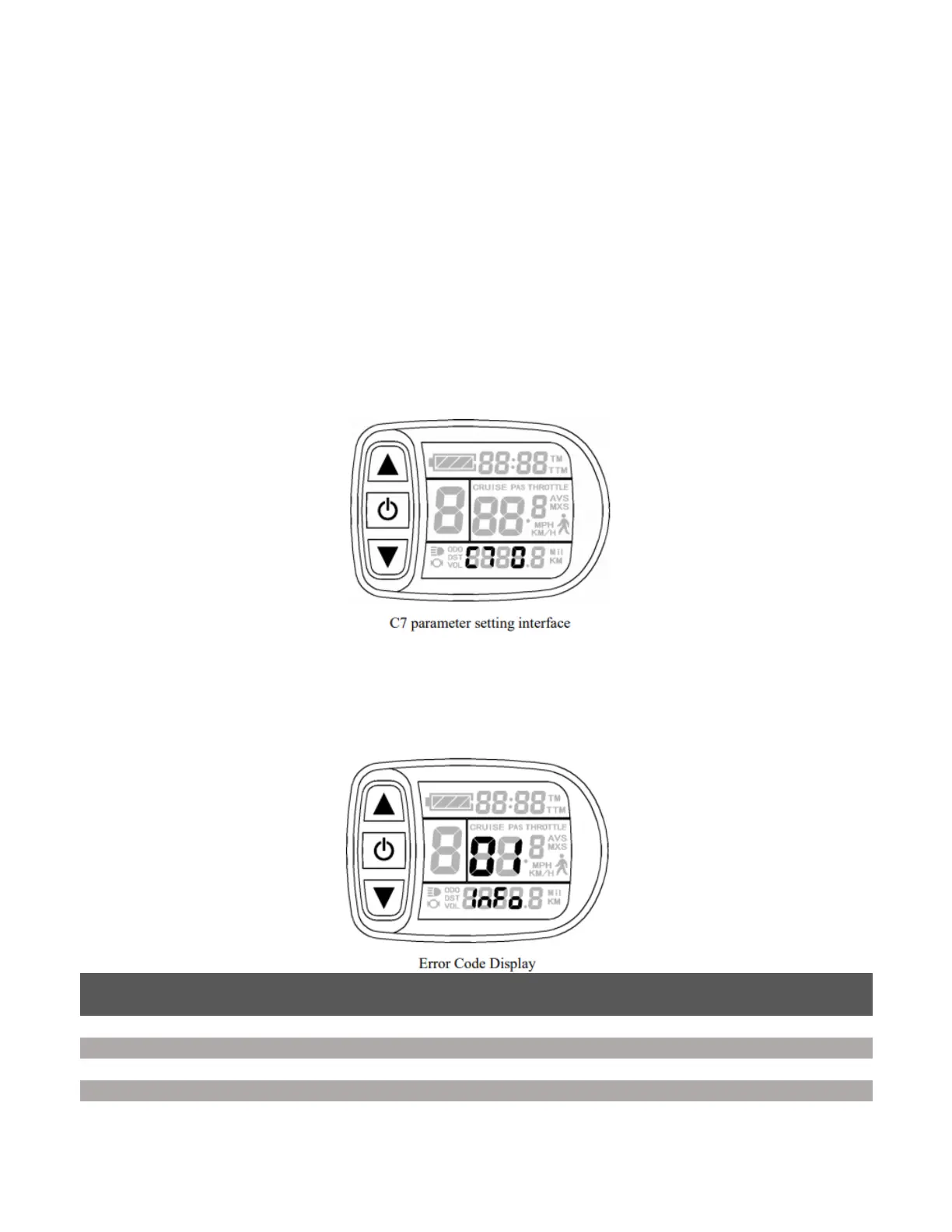

Next, HOLD the UP and DOWN buttons again. Press the POWER button SIX times to
advance to C7. Then use the UP and DOWN buttons to adjust "Cruise Control. Set this to 0 to
not allow for cruise control or to 1 to allow for use of the cruise control function. When you
have set the preferred value, PRESS the POWER button to save your selection, then HOLD
the POWER button to exit the settings menu.
Error Codes
When there is a problem with the display or motor the display may show an error code. Which
each error code represents is tabulated below contact Biktrix support for assistance in steps
to resolve these errors.
Error
Code
Definition
Solution
01
Throttle Abnormality
Unplug and replug in throttle
03
Motor Hall Sensor Abnormality
Unplug and replug in motor connector
04
Torque Sensor Signal Abnormality
05
Axis Speed Sensor Abnormality
06
Motor or controller short circuit
Check controller wires
