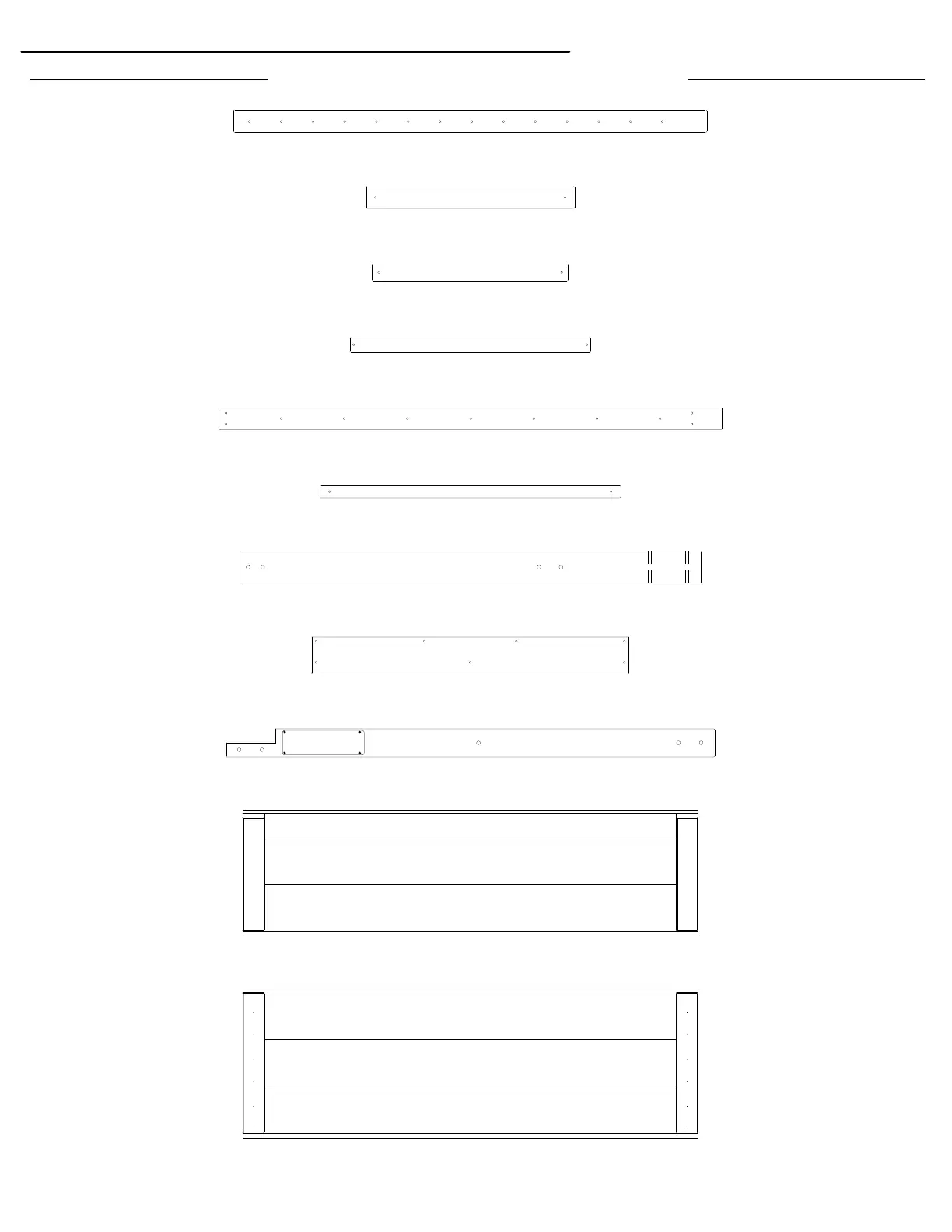

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
CLEAT - W4L18229
5/8"x2 3/8"x50 3/4" (16x60x1289)
N01
(x1)
CROWS NEST WALL BOARD - W4L18319
5/8"x2 3/8"x22 3/8" (16x60x568)
N02
(x2)
FILLER BOARD - W4L18233
5/8"x1 3/4"x21" (16x45x534)
N03
(x1)
ROCK WALL BOARD - W4L18313
5/8"x1 5/8"x25 3/4" (16x40x655)
N04
(x1)
ROCKWALL CLEAT - W4L18317
5/8"x2 3/8"x53 7/8" (16x60x1370)
N05
(x1)
CROWS NEST WALL BOARD - W4L18305
5/8"x1 3/8"x32 1/4" (16x34x819)
O01
(x16)
SWING BEAM SUPPORT - W4L18221
3 3/8"x3 3/8"x49 1/2" (86x86x1256)
SP71
(x1)
FLOOR BOARD - W4L18262
5/8"x3 7/8"x34" (16x100x864)
Y01
(x2)
B01
(x1)
POST ASSEMBLY - W2A03946
3"x3
"x63 7/16" (76x76x1330)
RP1
(x2)
PEAK ROOF PANEL - W2A03948
1 5/8"x13 3/8"x48 7/8" (42x341x1241)
RP2
(x3)
ROOF PANEL - W2A03947
1 5/
8"x15 5/8"x59 3/8" (42x396x1241)
To Next Page
