Bilt Backyard Discovery WHISPERING POINT - Page 39

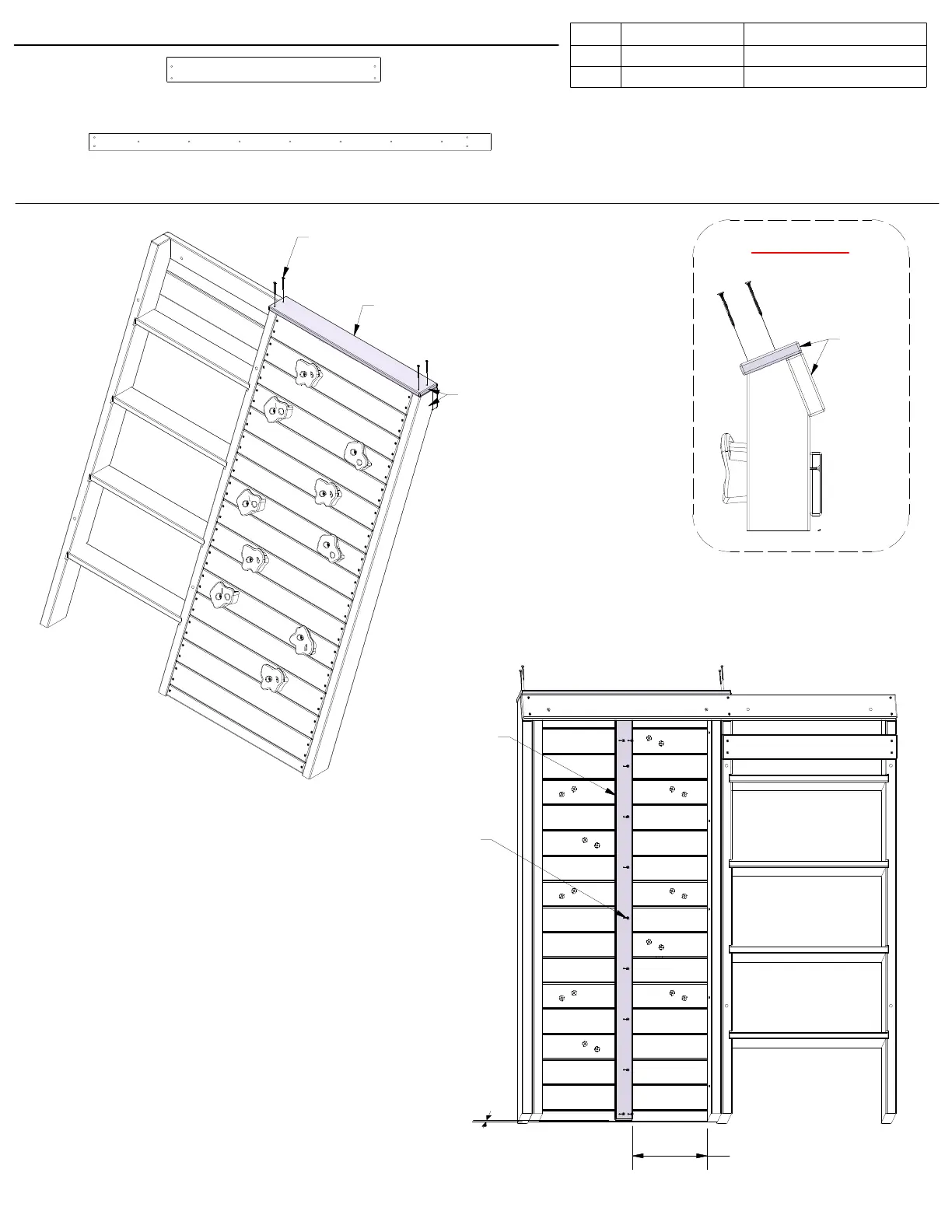

STEP 8 - LADDER & ROCK WALL ASSEMBLY
QTY
PART NUMBER DESCRIPTION
11
H100380 SCREW PFH 8x1 1/8" BLK
4
H100391
SCREW PFH 8x2" BLK
CENTER N05 AS SHOWN BELOW
FLUSH
SIDE VIEW
391 (x4)
SCREW - 2"
M17 (x1)
FLUSH
TOP BOARD - W4L18322
5/8"x3 3/8"x28 5/8" (16x86x728)
M17
(x1)
N05 (x1)
380 (11)
SCREW - 1 1/8"
ROCKWALL CLEAT - W4L18317
5/8"x2 3/8"x53 7/8" (16x60x1370)
N05
(x1)
10 1/4 in
[262 mm]
TOP
1/4 in
[7 mm]
39
