Bilt Backyard Discovery WHISPERING POINT - STEP 1 - FORT ASSEMBLY

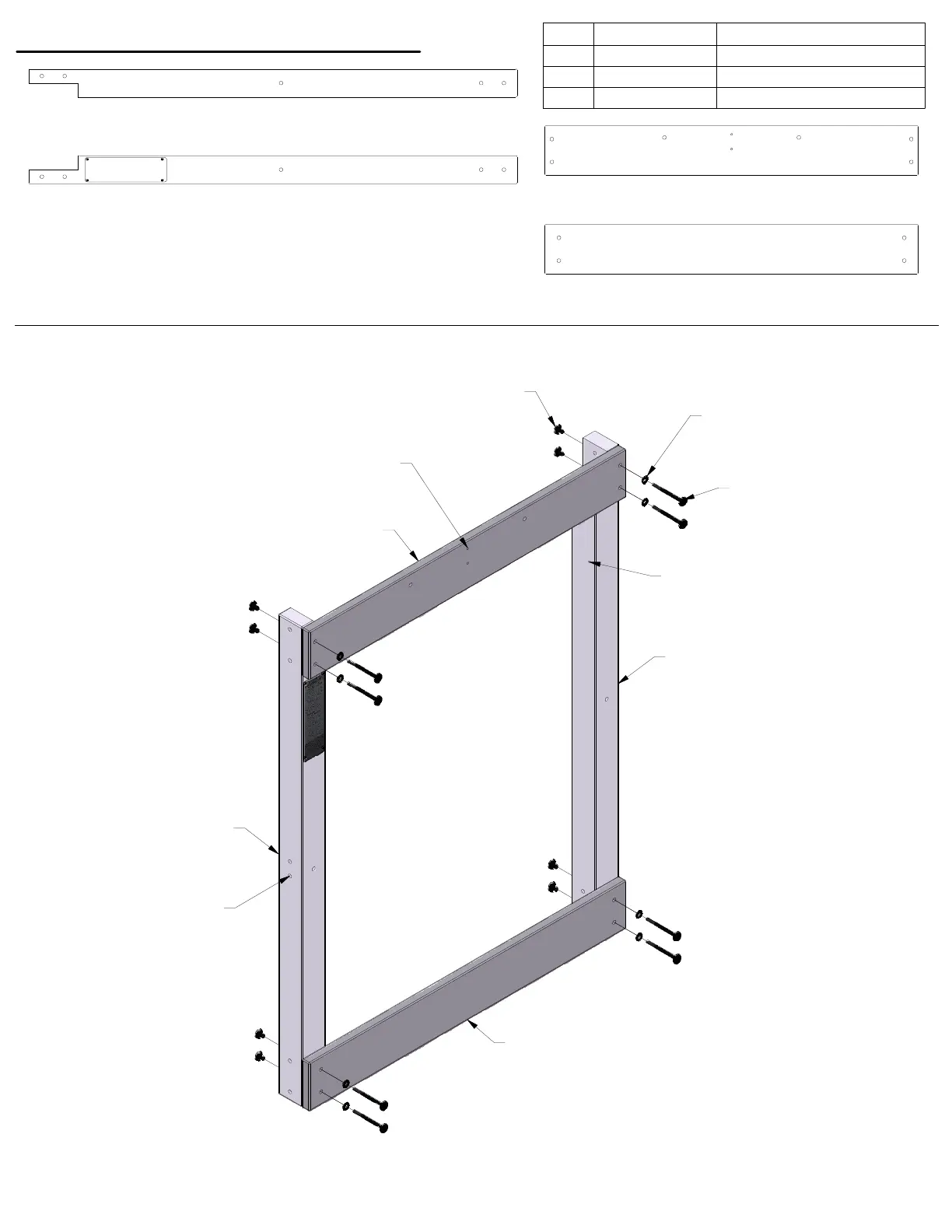

STEP 1 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
8 H100198 WASHER LOCK EXT 8x19 BLK
8 H100379
T-NUT 5/16 BLK
8 H100415 BOLT WH 5/16x3 3/4 BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
415 (x8)
BOLT - 3 3/4"
198 (x8)
WASHER - 8x19
379 (x8)
T-NUT - 5/16"
G06 (x1)
B01 (x1)
B03 (x1)
G09 (x1)
POST - W4L18235
3"x3"x52 3/8" (76x76x1330)
B03
(x1)
B01
(x1)
POST ASSEMBLY - W2A03946
3"x3
"x63 7/16" (76x76x1330)
FLOOR RAIL - W4L18257
1"x5 1/4"x40" (24x134x1017)
G06
(x1)
NOTE HOLE
LOCATION
NOTE HOLE
LOCATION
NOTE HOLE
LOCATION
WALL RAIL - W4L18272
1"x5 1/4"x40" (24x134x1017)
G09
(x1)
47
