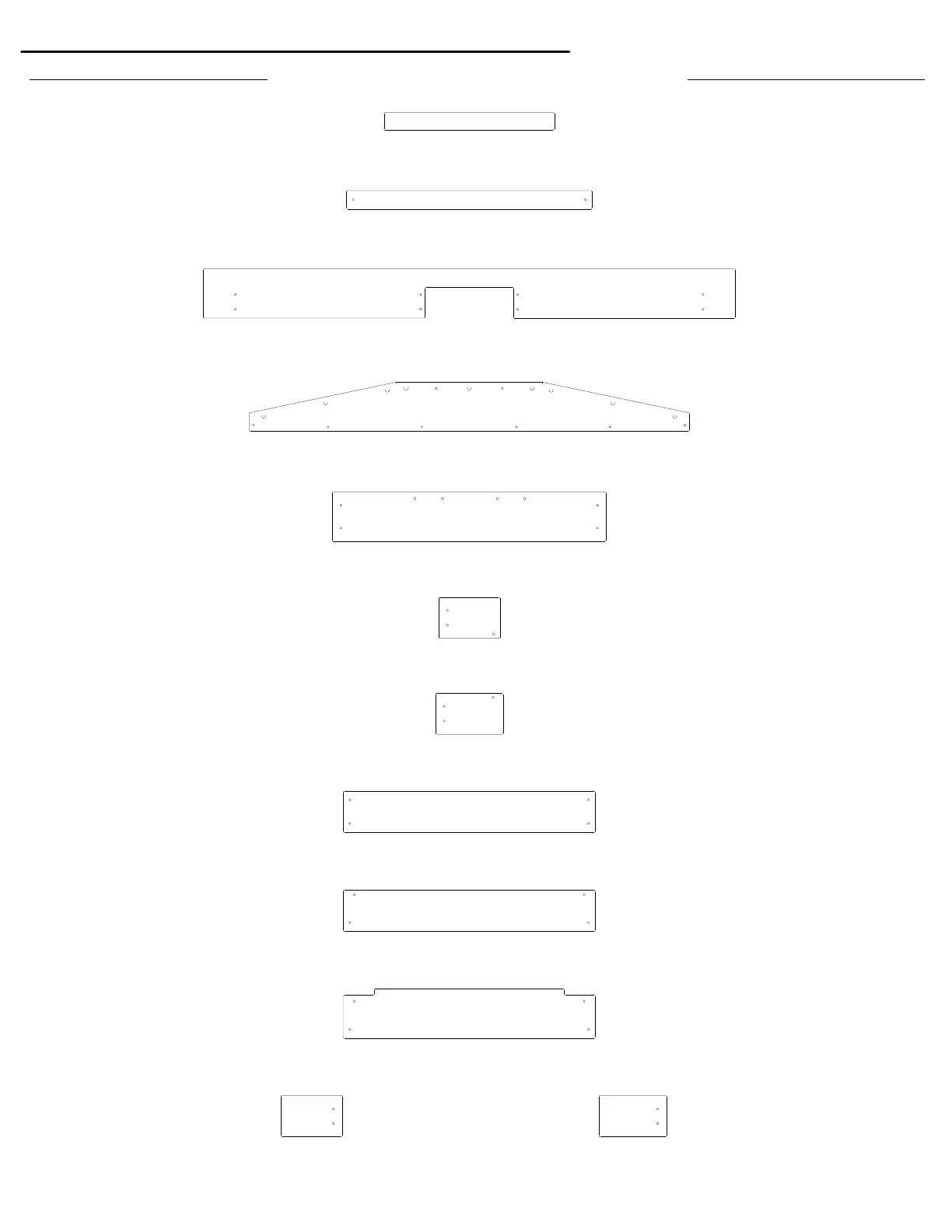

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
BAY WINDOW SIDE - W4L18277
1"x1 7/8"x18 1/4" (24x48x464)
J04
(x2)
WINDOW TRIM - W4L18278
1"x2"x26 1/4" (24x50x668)
J05
(x2)
COUNTERTOP BOARD - W4L18254
5/8"x5 1/4"x57" (16x134x1449)
K01
(x1)
BAY WINDOW HEADER - W4L18276
5/8"x5 1/4"x47 1/4" (16x134x1199)
K02
(x2)
WALL RAIL - W4L18283
5/8"x5 1/4"x29 3/8" (16x134x746)
K03
(x4)
WALL BOARD - W4L18284
5/8"x4 3/8"x6 5/8" (16x112x167)
L01
(x4)
WALL BOARD - W4L18285
5/8"x4 3/8"x7 1/4" (16x112x184)
L02
(x4)
CROWS NEST FLOOR BOARD - W4L18295
5/8"x4 3/8"x27" (16x112x686)
L03
(x6)
CROWS NEST FLOOR BOARD - W4L18296
5/8"x4 3/8"x27" (16x112x686)
L04
(x1)
CROWS NEST FLOOR BOARD - W4L18306
5/8"x5 1/4"x27" (16x134x686)
L05
(x1)
WALL BOARD - W4L18281
5/8"x4 3/8"x7 1/4" (16x112x184)
L07
(x2)
WALL BOARD - W4L18239
5/8"x4 3/8"x6 5/8" (16x112x167)
L06
(x2)
To Next Page
