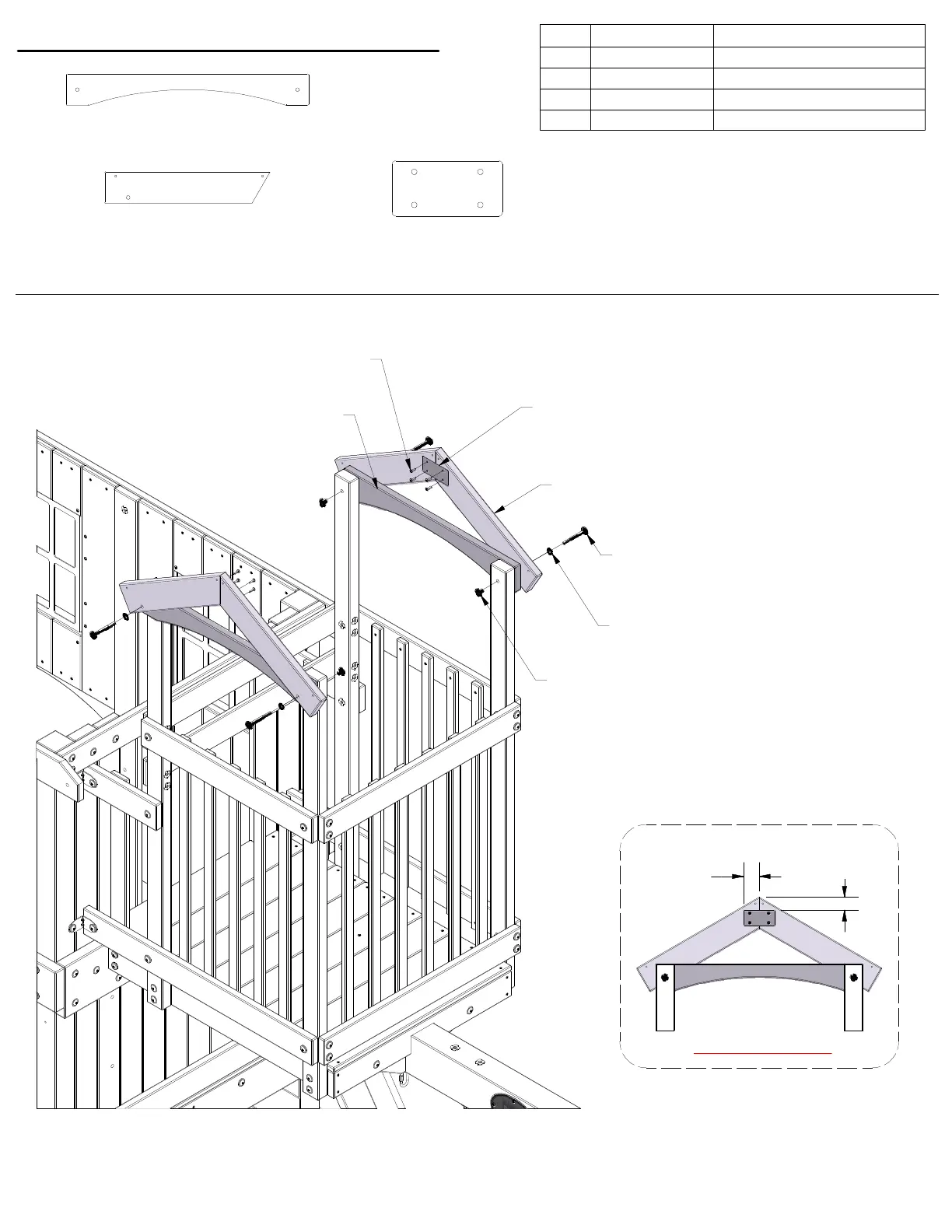

STEP 44 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
4 H100198 WASHER LOCK EXT 8x19 BLK
4
H100379
T-NUT 5/16 BLK
8 H100392 SCREW PWH 8x3/4 BLK
4
H100484
BOLT WH 5/16x3 1/4 BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
484 (x4)
BOLT - 3 1/4"
198 (x4)
WASHER - 8x19
379 (x4)
T-NUT - 5/16"
H29 (x4)
H20 (x2)
CROWS NEST WALL RAIL - W4L18299
1"x3 3/8"x26" (24x86x660)
H20
(x2)
LEFT ROOF RAFTER - W4L18325
1"x3 3/8"x17 3/4" (24x86x451)
H29
(x4)
2100 (x2)
GABLE CLEAT
392 (x8)
SCREW - 3/4"
GABLE CLEAT
(x2)
A4M02100
INSIDE SIDE VIEW
1 5/8 in
[41 mm]
2 in
[50 mm]
To Next Page
