bily Retractable Safety Gate - Installation: Outside Opening

5

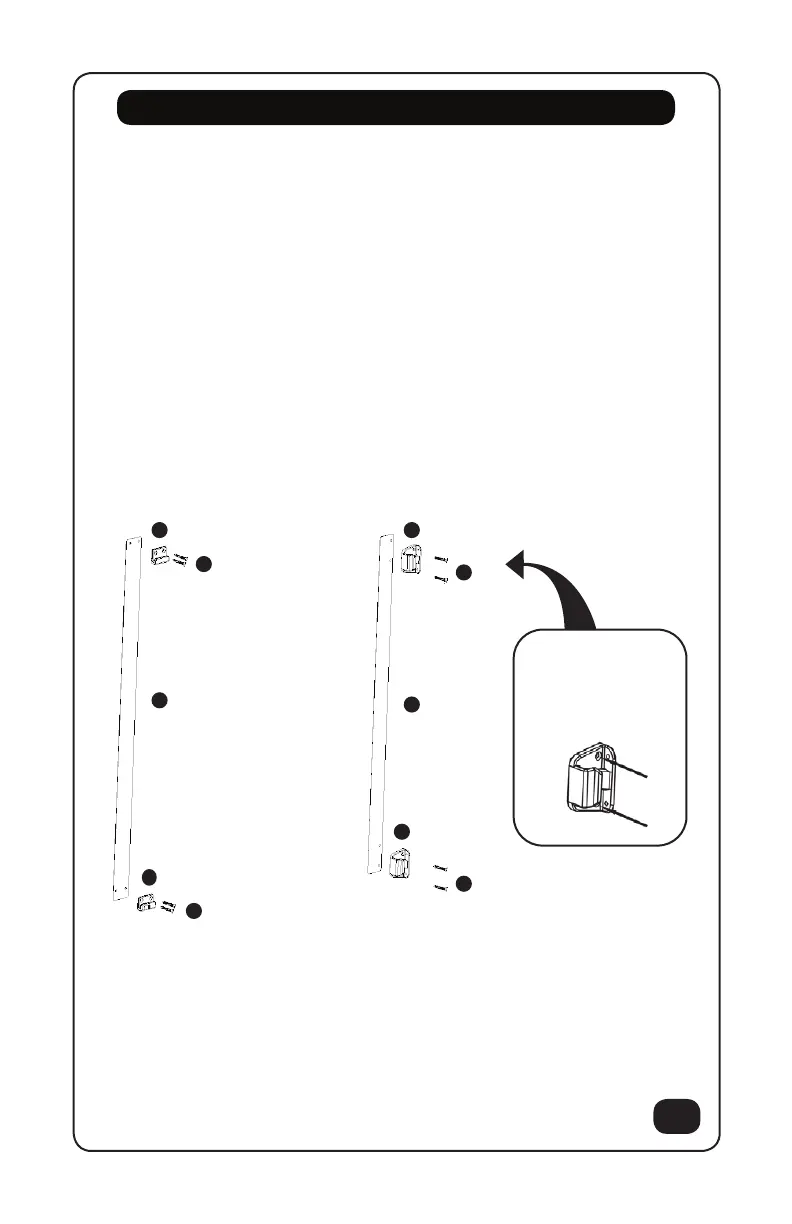

Installation Outside of Opening or Doorway
To install you will need a Phillips screwdriver, pencil, level and drill.
1. Place Guide 1 template on the surface you want the Gate Assembly to be mounted
to with the bottom of the template flush with the floor, use a level to ensure the
guide is straight. Note: leave 2 cm between guide and the edge of the opening to
ensure gate won’t overhang edge. Repeat for Guide 2 template on the opposite side
of opening.
2. Use pencil to mark the center of each hole, and then remove both Guides.
3. Drill a 3 mm pilot hole at each pencil mark for timber surfaces and for hardwall drill
a 6 mm hole and insert plugs. Note for all other surfaces use suitable fixings.
4. Align each mount in its correct position, use a Phillips screwdriver to tighten screws
till each mount is secure.
NOTE: When fixing
Catch Mounts outside
of opening. Only use
the inside countersunk
holes
E
Guide 1
C
Upper Gate Mount
B
Screws and plugs
B
B
G
Catch Mount
G
Catch Mount
B
Screws and plugs
F
Guide 2
D
Lower Gate Mount
