ASSEMBLY
Attention: always unplug the appliance before you assemble.
Attention: the fan can only be used if complete with the support base (front and
rear shell).

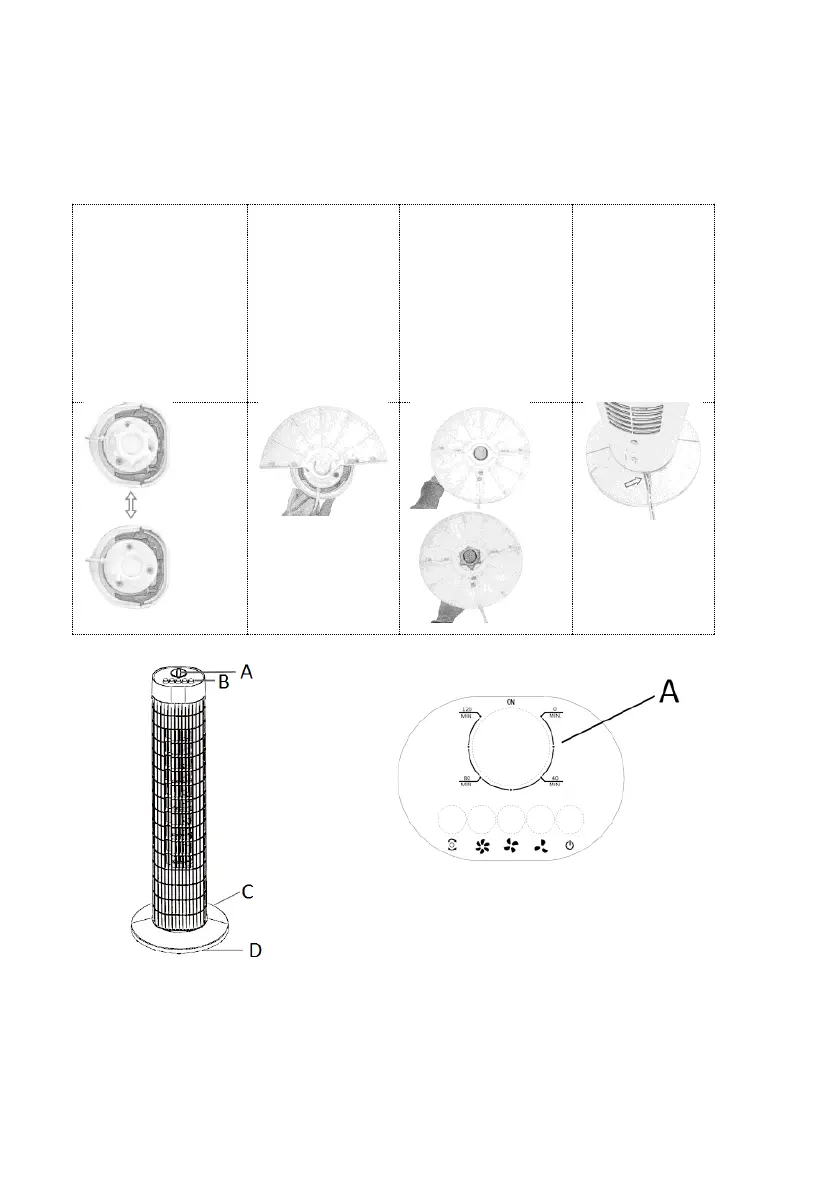

To assemble it, refer to figures.
Unscrew the ring
nut on
counterclockwise
bottom of the
body, if the nut is
screwed.
1
Place first the
front shell.
2
Couple the rear
shell to the front
(align the four
holes) secure the
set by turning
clockwise the
ring nut.
3
Plug the
power cord
through the
guidance of
the rear shell.
4
A. Timer Knob
B. Switches
C. Rear shell
D. Front shell
