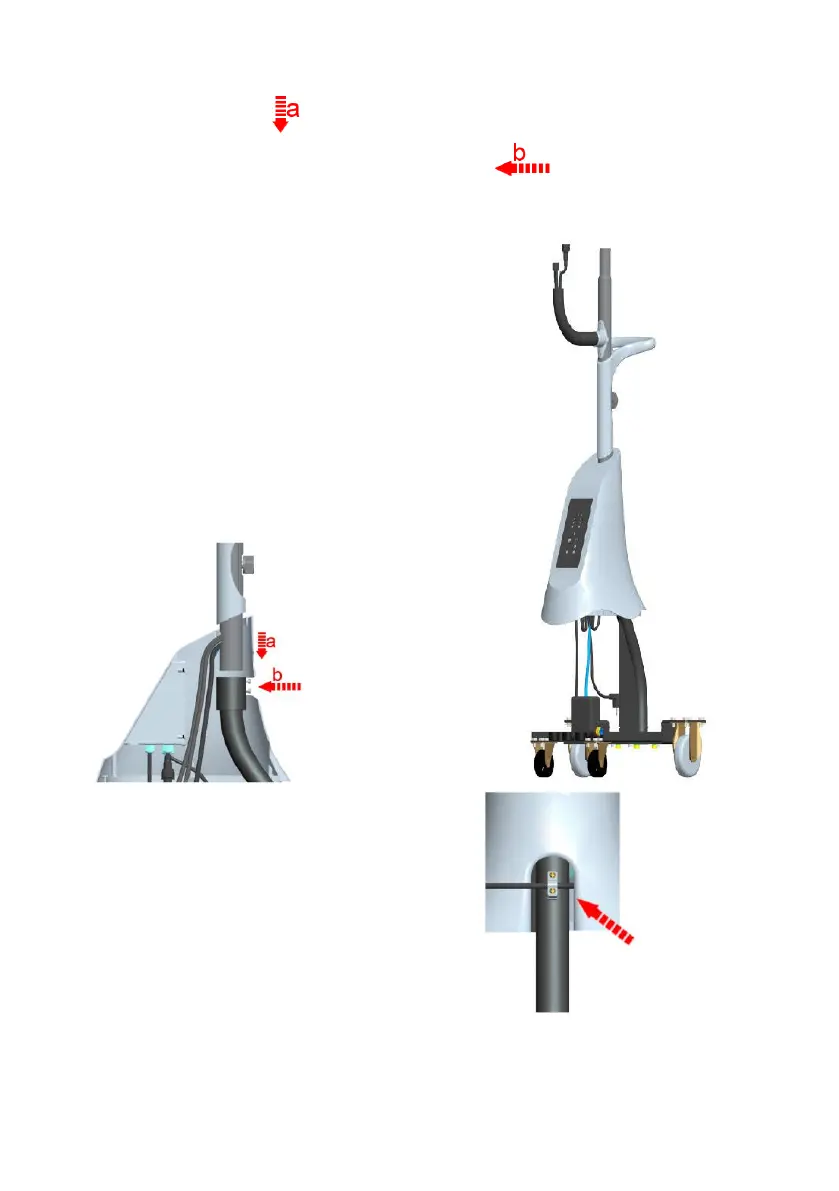

3. Insert the bottom end of the fixed upright (fitted into the lid of the tank) fully
into the vertical tube ( ) in the base, pressing it fully down, ensuring that the
two screws are aligned with the holes in the lid ), then fix by tightening
the two screws using a screwdriver. When done, check that the two parts are
firmly connected and correctly secured.
4. Cable retainer: undo the screws if
tightened previously, fit the cable into the
plate and tighten the screws.
