I.V. Pole (058-656)
The I. V. Pole must be installed on the patient left side of
the table.
Installing the I.V. Pole:
1. Using a 7/16" wrench, remove the two 1/4-20" hex head
screws from the middle of the tabletop frame on the side
of the table to which the side rail will be installed.
2. Position the I.V. Pole support bracket against the bottom
of the cushion so the two pre-drilled screw holes in the
bracket align with the screw holes on the tabletop frame.
The I.V. Pole should face up and away from the head
end of the table.
3. Using a 7/16" wrench, install the two screws removed in
step 1 through the I.V. Pole mounting bracket. Tighten
the screws to secure.

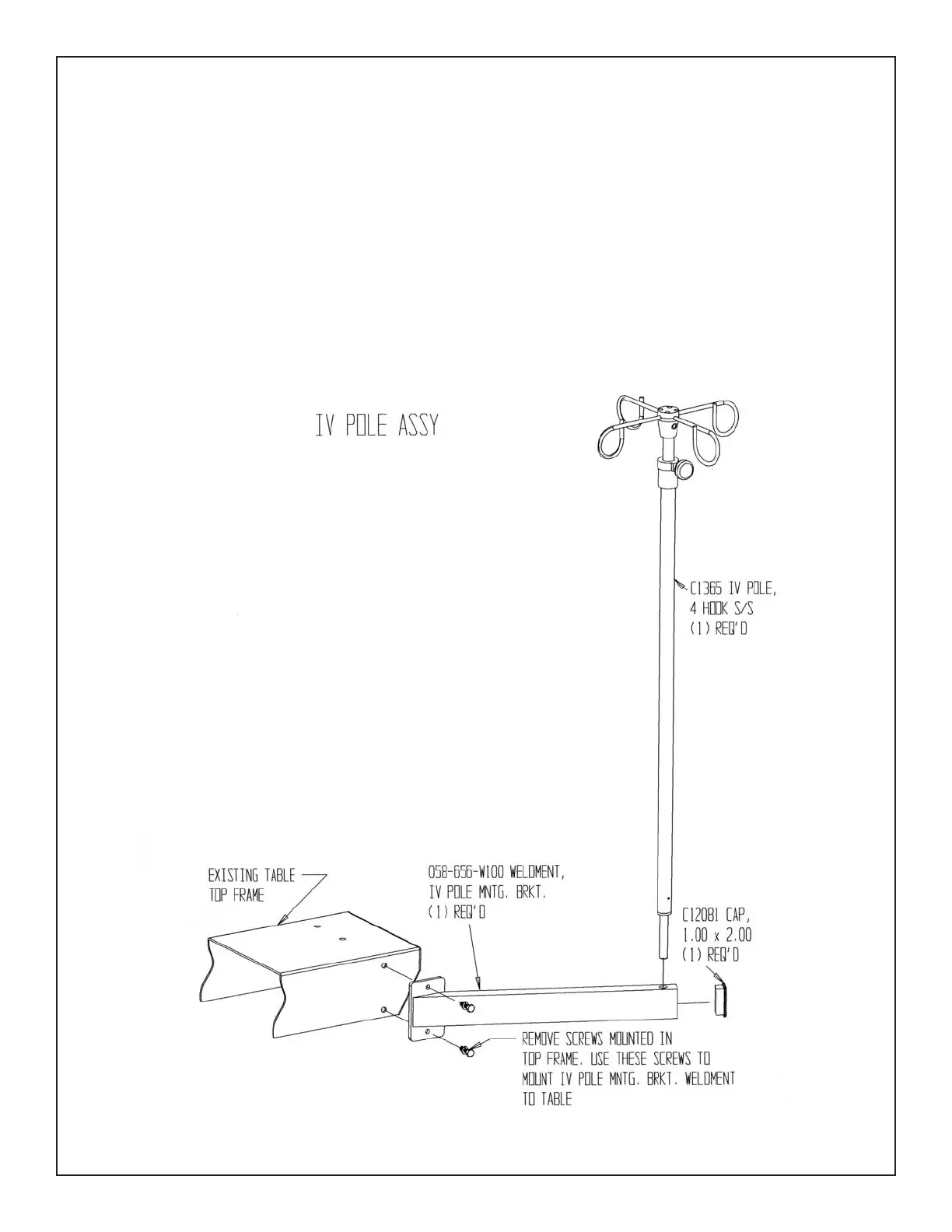

Figure 7. Installing the I.V. Pole.
4. Insert the I.V. Pole into the I.V. Pole Mounting bracket.
Ensure that the I.V. Pole passes through both the top
and bottom holes in the mounting bracket to ensure I.V.
Pole stability.
