第二章: 硬體安裝 | 7
A320MH 2�0
第二章: 硬體安裝

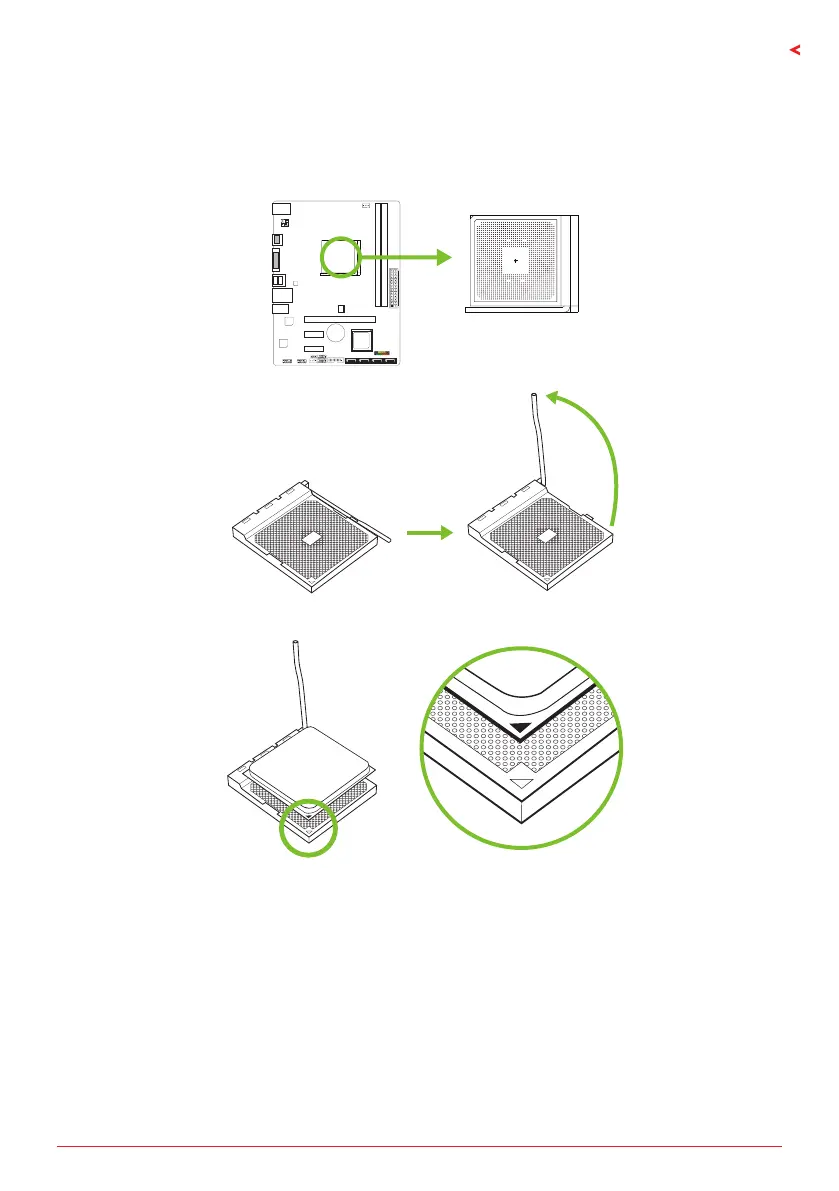

2�1 中央處理器(CPU)
步驟1: 找到主板上的CPU插槽。
步驟2: 將固定拉桿從插槽處水平拉起至90度。
步驟3: 找到插槽上的白色三角,CPU上的金點應指向此白色三角,CPU必須按正確的方
向放入。

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar A320MH 2.0 and is the answer not in the manual?

Biostar A320MH 2.0 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetAMD A320
CPU SocketAM4
Memory TypeDDR4
Memory Slots2
Maximum Memory32GB
PCIe Slots1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
LANRealtek RTL8111H Gigabit LAN
SATA Ports4
M.2 Slots1 x M.2
USB Ports6 x USB 2.0
Video OutputsHDMI, VGA
AudioRealtek ALC887 8-Channel HD Audio
