Birchmeier Flox - Spare Parts List

Flox / Iris / Senior

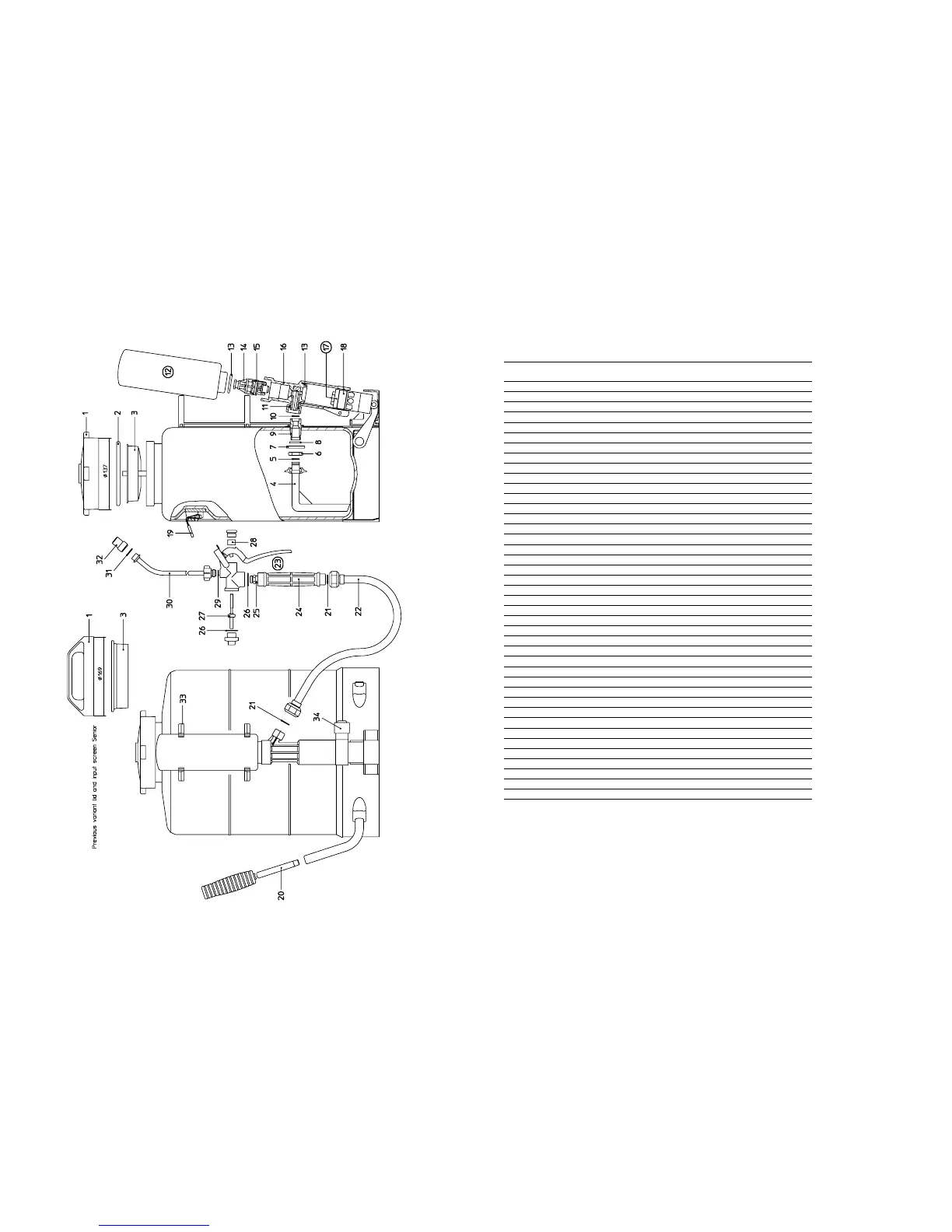

Spare parts list
Pos. Description Parts number
1 Lid Flox / Iris / Senior 103 972 02-SB
1 Lid compl. (old model Senior) 104 891 01-SB
2 a
Gasket 108x7
3 Input screen Flox / Iris / Senior 770 096 99-SB
3 Input screen (old model Senior) 104 892 01-SB
4 Suction bend avec O-Ring (5) 109 623 01-SB
5 a
O-Ring 11,11x1,78 NBR
6 Hexagon nut G1/2“ 412 067 01
7 Washer 442 260 01
8 a
O-Ring 19,5x3 NBR
9 Nipple 109 507 01
10 a
Flat gasket 14x9,7x1,5 PE
11 Treaded ring 109 323 01
12 Pump assy. 109 625 01-SB
13 a
O-Ring 31,34x3,53 NBR
14 Valve assy. 113 885 01-SB
15 a
O-Ring 23,47x2,62 NBR
16 Valve casing cassy. 108 037 01-SB
17 Piston assy. 110 512 03-SB
18 Rubber piston-ring 262 003 01-SB
19 Carrying belt few 114 449 05-SB
19 Carrying belt extra long, pair 114 449 10
20 Pump lever compl. 116 313 02
21 b
Flat gasket 17x11x1,5 NBR
22 Hose assy. 103 960 08-SB
23 Pistol valve 1/2" 105 040 10-SB
24 Handle plastic 103 922 01-SB
25 b
Strainer
26 b
Flat gasket 24x16,2x2
27 b
Valve assy. NBR
28 b
Gland packing
29 Flat gasket 11,9x7x1,5 NBR (12 pcs.) 116 424 02-SB
29 b
Flat gasket 11,9x7x1,5 NBR
30 Spray tube, 50cm curved 113 707 04
31 b
Flat gasket 17x12,7x2 PE
32 Duro mist nozzle 1,5 mm 285 023 24-SB
33 Support for spray tube and pump lever 114 196 01-SB
34 Grease piston 108 652 01
a
Sealing kit pump and container 108 559 01-SB
b
Sealing kit spraying line 106 002 01-SB
Spare parts must be ordered separately. Ask your dealer.
