Operating Instructions
BIRKO Meat Slicers Models: 1005100 (250mm) and
1005101 (300mm)
BIRKO
Page 7
Meat Slicer 6001058 - April 2012 v1.01

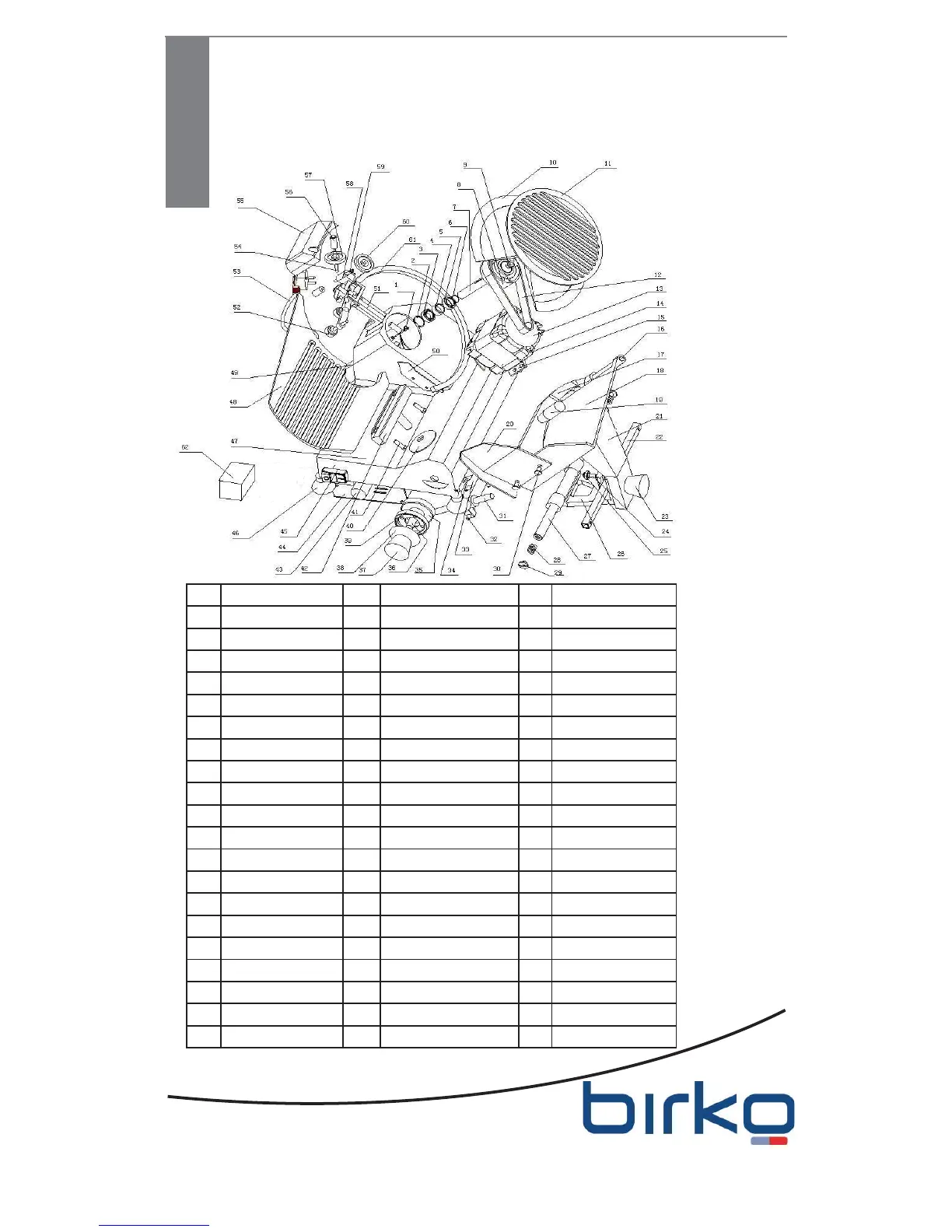

No Name No Name No Name
1 Microswitch 22 Square orbit 43 Capacity
2 Blocking Ring 23 Holder handlebar 44 Bottom plate
3 Bearing 24 spindle 45 Switch
4 Isolating sleeve 25 Bearing of spindle 46 Foot
5 Bearing 26 Sliding Core 47 Body
6 Blocking Ring 27 Circle orbit 48 Locking plate
7 Spindle of knife 28 Spring 49 Pull Pole
8 Sleeve of knife 29 Screw 50 Scraping board
9 Screw 30 Screw for plastic board 51 Stand of sharpener
10 Knife 31 Spindle 52 Screw
11 Protection plate 32 Bolt 53 Wire
12 Belt 33 Sliding holder 54 Spindle of wheel
13 Motor 34 Sliding board 55 Cover of wheel
14 Hinge spindle 35 Cams 56 Sharping controller
15 Board of motor 36 Spindle of handle 57 Sharping wheel
16 Sliding Pole 37 Adjusting handle 58 Stand of wheel
17 Pressing 38 Digital plate 59 Spindle of wheel
18 Carriage 39 Digital ring 60 Sharping wheel
19 Hand bar of pressing 40 Waterproof Gasket 61 Protection circle
20 Plastic Protection 41 Screw 62 Relay
