Installation & Operating Instructions
Birko TempoTronic Over-Sink Boiling Water

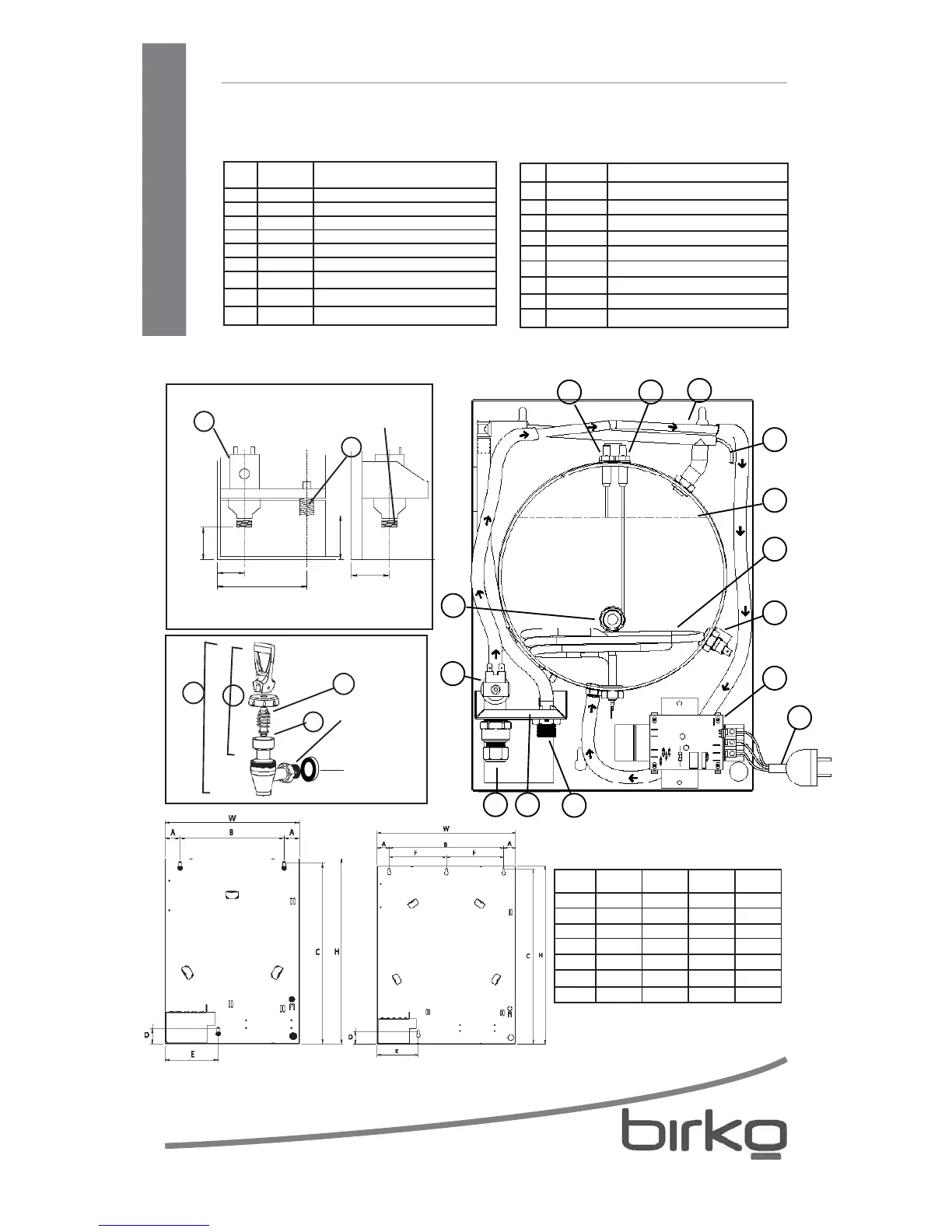

Page 3
OVERSINK BOILING WATER
17
16
18
Teflon Tape
9b
Ref Part No Description
1 1311010 Water Solenoid Valve
2 1311044 Condenser Assembly
3 Cold Water Inlet (half inch BSP)
4 1311043 Thermistor Steam Sensor
5a Element & Tank Assembly
5b 1311032 Element Assembly 5 to 25 Litre
6 1311006 Manual Rest Thermostat (boil dry protection)
7 Steam Vent Outlet (half inch BSP)
8 1311125 Manual Reset Thermostat (steam vent O/Flow)
Spare Parts
1
7
30mm
85mm
65mm
45mm
Reducer 1/2”
BSP
(Olive Compression Union)
FRONT VIEW
SIDE VIEW
55mm
9a Water Outlet Fitting (half inch BSP)
9b 1311056 Tap Assembly
10 Sensor - Red tip (minimum water level)
11 Sensor - White tip (maximum water level)
13 Maximum Water Level
14 1310842 Power Cord & Plug Assembly
15 1311042 Tempo Tronic PCB Assy
16 1311057 Tap Cup Seal
17 1311064 Tap Insert
2.5L 5-75L 10-15L 20-25L
A
56.4 41.4 41.4 41.4
B
198.0 278.0 335.0 399.0
C
418.45 488.45 545.45 609.45
D
42.45 42.45 42.45 42.45
E
143.4 143.4 143.4 143.4
F
200
H
430.8 500.8 557.8 621.8
Wall Mounting Dimmensions (mm)
2.5- 15L
20-25L
Washer
15
14
2
7
6
5
3
1
11 10
13
9a
8
4
