Fix forearm of the wagon box on the trailer and wheels on the transmission shaft of the
running part, the machine can do a transportation job. The rated load is 250kg, under
normal rotated speed of the diesel engine, speed of the fast shift is about 10 km/h and that
of the slow shift is about 5km/h.
5. Multi-functional working
Knock down protection over of the gear-box (No.2 in Figure 1), unscrew the bolts away from
the rear part of the main shaft, take the cover for keys out of the shaft, fasten the
self-contained belt pulley or coupling onto the gear-box’s main shaft’s rear part with screws.
Type A of common V belt is adopted for belt pulley’s cross section. Rated rpm of the belt
pulley is 3000 rpm. When the corresponding devices are equipped, pumping water, spraying,
threshing, reaping, generating electricity, etc are realized.

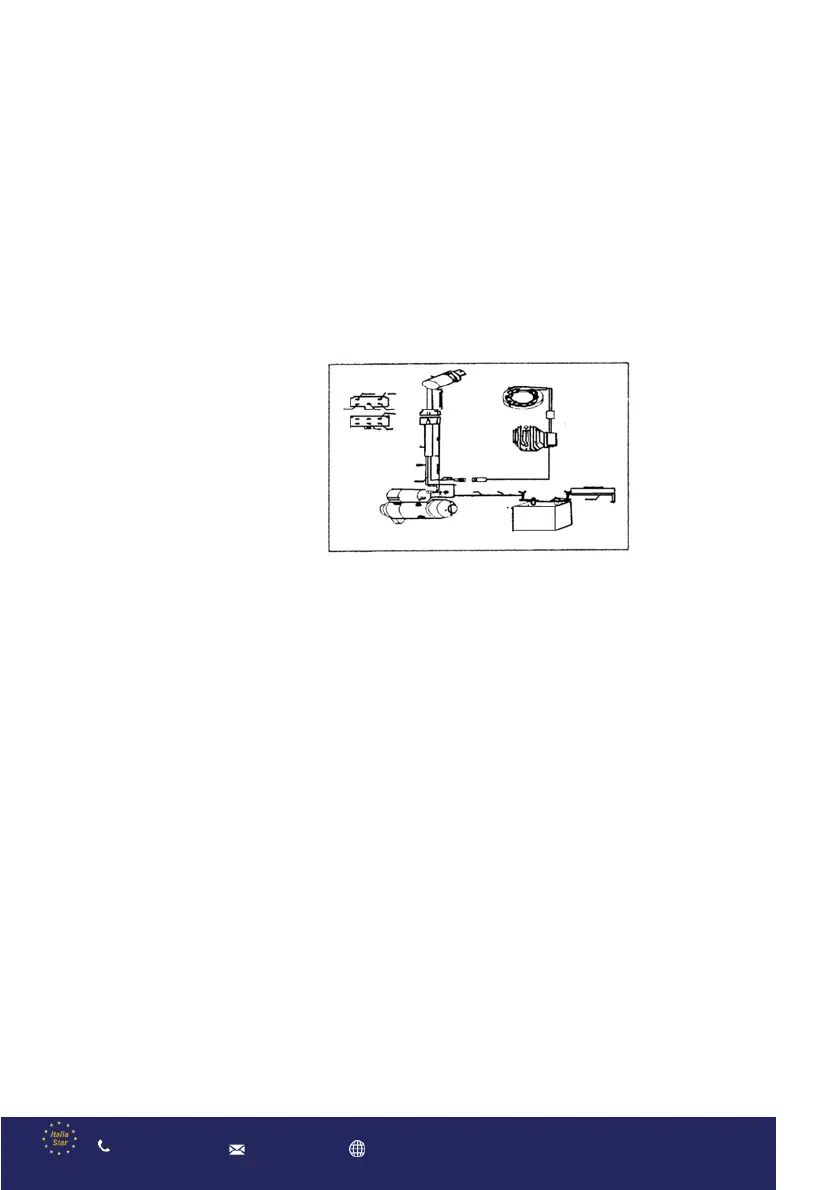

6. Hookup, Electric Starter
Ⅶ. Training
1. Read the instructions carefully. Be familiar with the controls and the proper use of the
equipment.
2. Never allow children or people unfamiliar with these instructions to use the machine.
Local regulations can restrict the age of the operator.
3. Never work while people, especially children, or pets are nearby.
4. Keep in mind that the operator or user is responsible for accidents or hazards occuring to
other people or their property.
Ⅷ. Preparation
1. The safety protection guard must be attached to the machine before using.
2. Check that the blade and fender are correctly assend and securely fastened.
3. While working, always wear substantial footwear and long trousers. Do not operate the
equipment when barefoot or wearing open sandals.
4. Thoroughly inspect the area where the equipment is to be used and remove all objects
which can be thrown up by the machine.
5. WARNING-Diesel is highly flammable:
----store fuel in containers specifically designed for this purpose
----refuel outdoor only and do not smoke while refueling.
---- add fuel before starting the engine. Never remove the cap of the fuel tank or add diesel
while the engine is running or when the engine is hot.
----if diesel is spilled, do not attempt to start the engine but move the machine away from the
area of spillage and avoid creating any source of ignition until diesel vapours have dissipated.
----Replace all fuel tank and container caps securely
6. Replace faulty silencers
