BIXOLON SRP-382 User Manual

SRP-382
Rev. 1.00
- 35 -

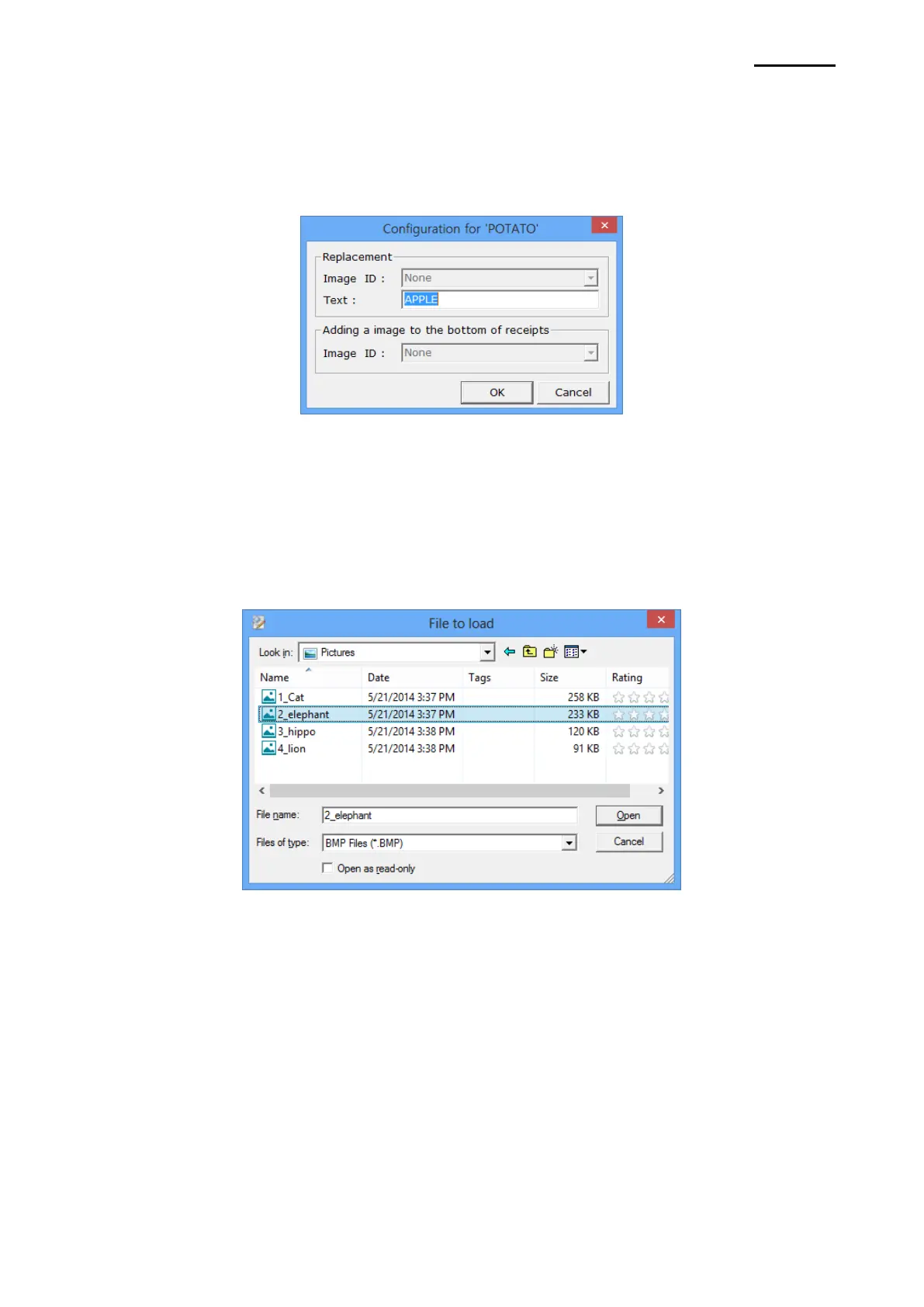

3) If the Text-Key is selected, The Configuration button is enabled.
4) Click Configuration to enter a text, which is used to replace the selected Text-Key with
the text entered. For example, if you enter “APPLE” in the text box as below, the Text-
key, “POTATO” can be replaced with “APPLE”.
▶ How to replace Text-Key with a graphic image and to add it to the bottom of receipts.
1) This utility can also replace the selected Text-Key with a graphic image instead of texts
and can add a graphic image to the bottom of receipts. It is necessary to add images to
the image list.
2) Click Add New Image to browse for an image to add to the list.
3) Enter a unique name to be added, adjust the brightness, select a dithering type, and
then click OK. Repeat 2 to 3 step to add up to as much as you want.

BIXOLON SRP-382 Specifications

General

Type	POS printer
Print technology	Direct thermal
Product color	Black
Bluetooth	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ethernet LAN	No
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	0.062 - 0.075 µm
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Flash memory	64 MB
RAM capacity	0.128 GB
Built-in barcodes	1D, 2D
Autocutter durability	3 million cuts
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	148 mm
Width	147 mm
Height	200 mm
