BIXOLON SRP-382 User Manual

SRP-382
Rev. 1.00
- 36 -

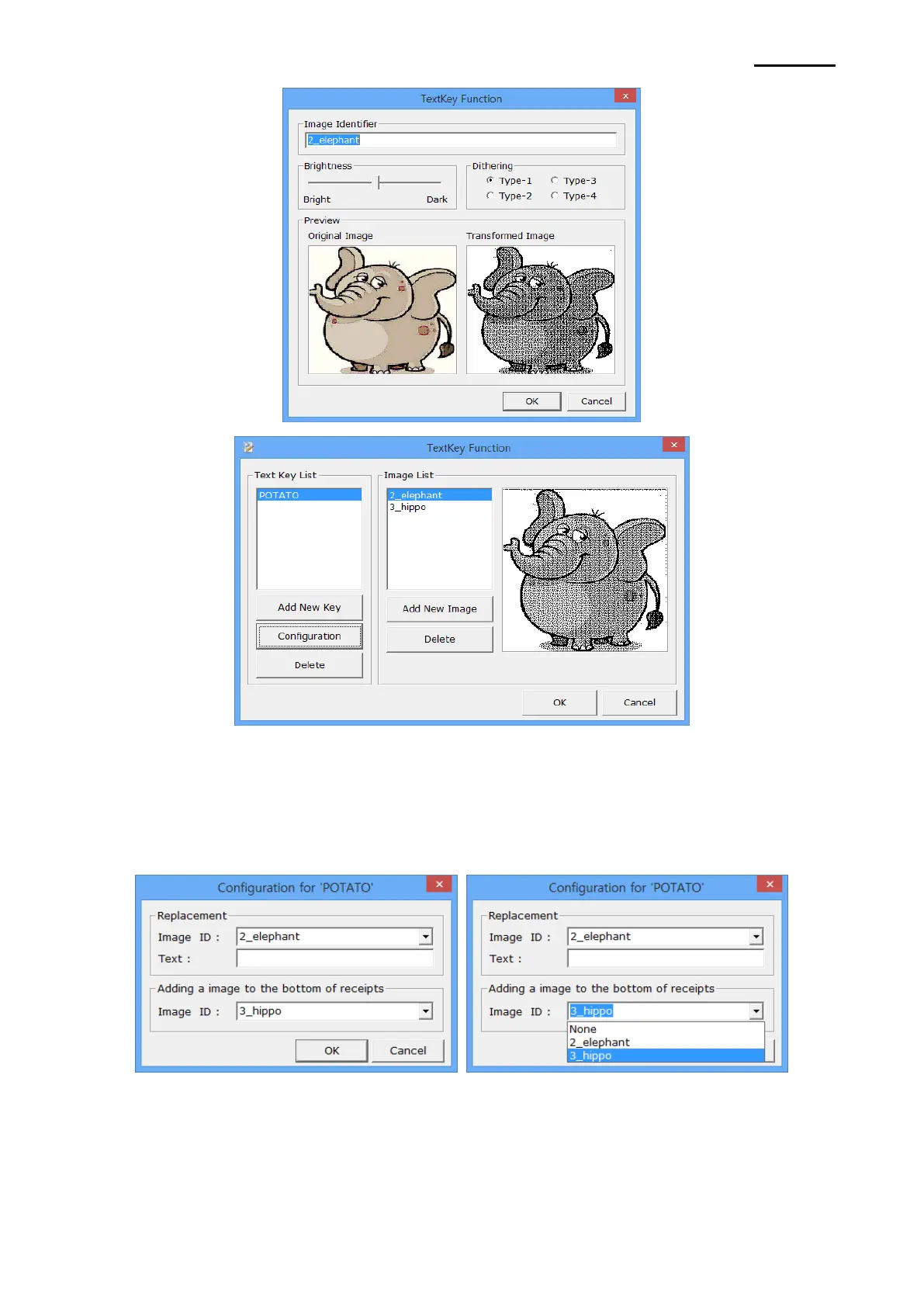

4) Select a Text-Key in the Text-Key list, and then click Configuration.
5) To replace the selected Text-Key with a graphic image, select one of the available
identifier via the combo box under “Replacement” label. There are two replacement
functions but only one of the two is available.
6) In order to print a graphic image to the bottom of receipts, select one of the available
identifier via the combo box under “Adding a image to the bottom of receipts” label.
The graphic image for the selected identifier only will be printed if the data for the
selected Text-Key were found on a Print-Job.

BIXOLON SRP-382 Specifications

General

Type	POS printer
Print technology	Direct thermal
Product color	Black
Bluetooth	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ethernet LAN	No
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	0.062 - 0.075 µm
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Flash memory	64 MB
RAM capacity	0.128 GB
Built-in barcodes	1D, 2D
Autocutter durability	3 million cuts
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	148 mm
Width	147 mm
Height	200 mm
