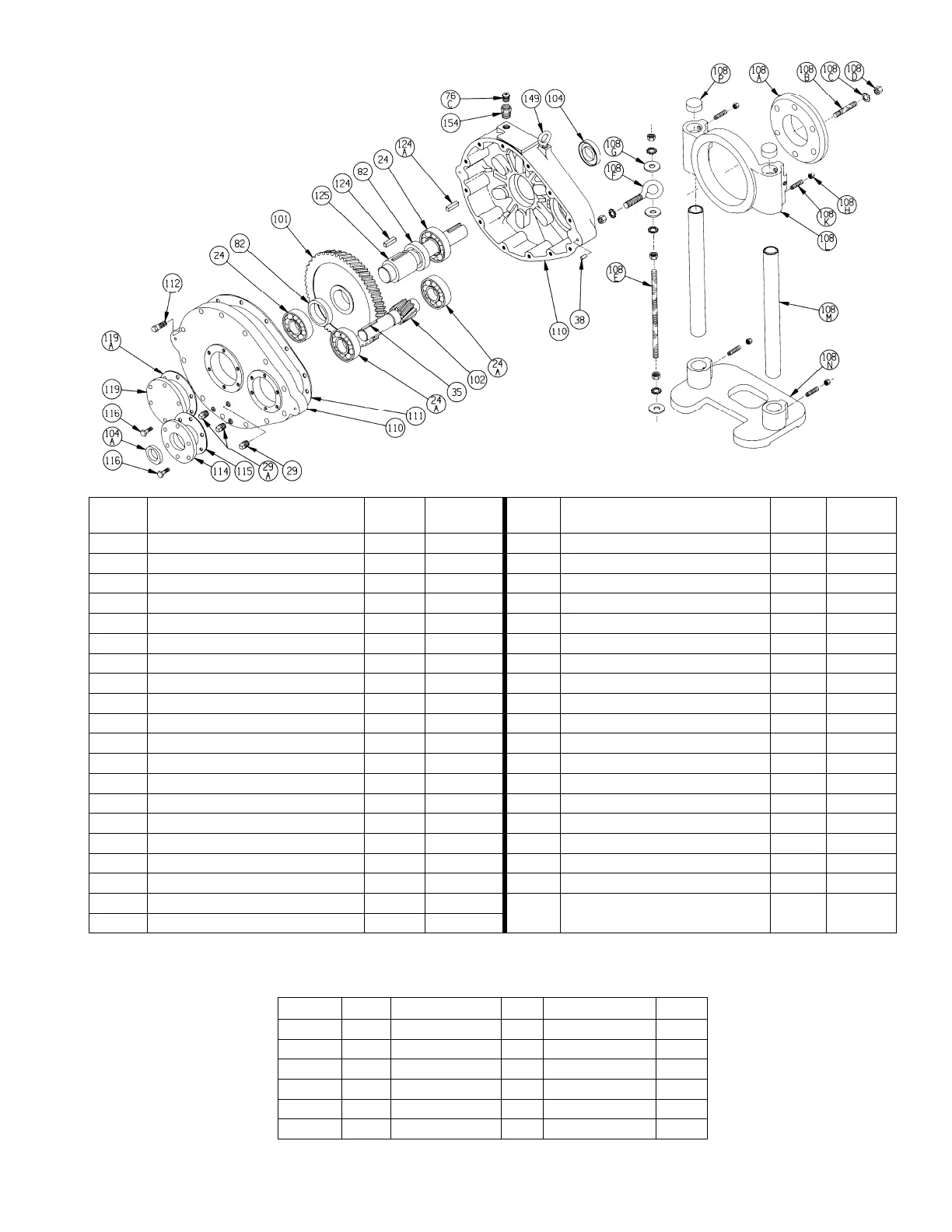

Blackmer 109-C00 Page 2 of 4
Ref. No. Description
Parts
per Unit
Part No. Ref. No. Description
Parts
per Unit
Part No.
24 Bearing 2 903130 124 Key – Gear 1 909179
24A Bearing 2 903150 124A Key – Shaft 1 909182
29 Oil Level Plug 1 908198 125 Shaft 1 704021
29A Drain Plug 2 908100 149 Eyebolt 1 922450
35 Key – Pinion 1 909177 154 Bushing 1 908794
38 Dowel Pin 2 930739
BRACKET ASSEMBLY
871085
76C Fill & Vent Plug 1 701988 108A Bracket Ring 1 834018
82 Spacer Ring 2 374011 108B Bracket Stud 6 921534
101 Gear 1 See Table 108C Lockwasher 10 909630
102 Pinion & Shaft 1 See Table 108D Nut (1/2 – 13) 10 922850
104 Oil Seal 1 331930 108E Torque Arm (Stud) 1 921584
104A Oil Seal 1 331909 108F Eyebolt 1 922474
110 Body/Cover Assembly
1
1 894011 108G Plain Washers (1/2″) 3 909670
111 Gasket – Cover 1 814010 108H Nut (3/8 – 24) 6 922843
112 Capscrews – Cover 12 920384 108K Setscrew 6 922204
114 Closure Plate – Input 1 * 108L Mounting Bracket 1 834031
115 Gasket – Input Closure Plate 1 814011 108M Slider Post 2 834030
116 Capscrews – Closure Plate 12 920073 108N Foot 1 834028
119 Closure Plate – Blind 1 *
108P Pipe Cap 2 344001
119A Gasket – Blind Closure Plate 1 814012
* Non-saleable item – included in Body/Cover Assembly.
1
Body/Cover Assembly includes Ref. Nos. 38, 110, 111, 112, 114, 115, 116, 119, 119A.
GEAR AND PINION SELECTION TABLE
RATIO RPM 102 PINION NO. QTY. 101 GEAR NO. QTY.
2.70 640 915148 1 919948 1
3.52 500 915134 1 919934 1
4.36 400 915135 1 919935 1
5.77 300 915136 1 919936 1
7.71 230 915137 1 919937 1
9.18 190 915149 1 919949 1
NOTE: Speed is based on 1750 rpm input.
