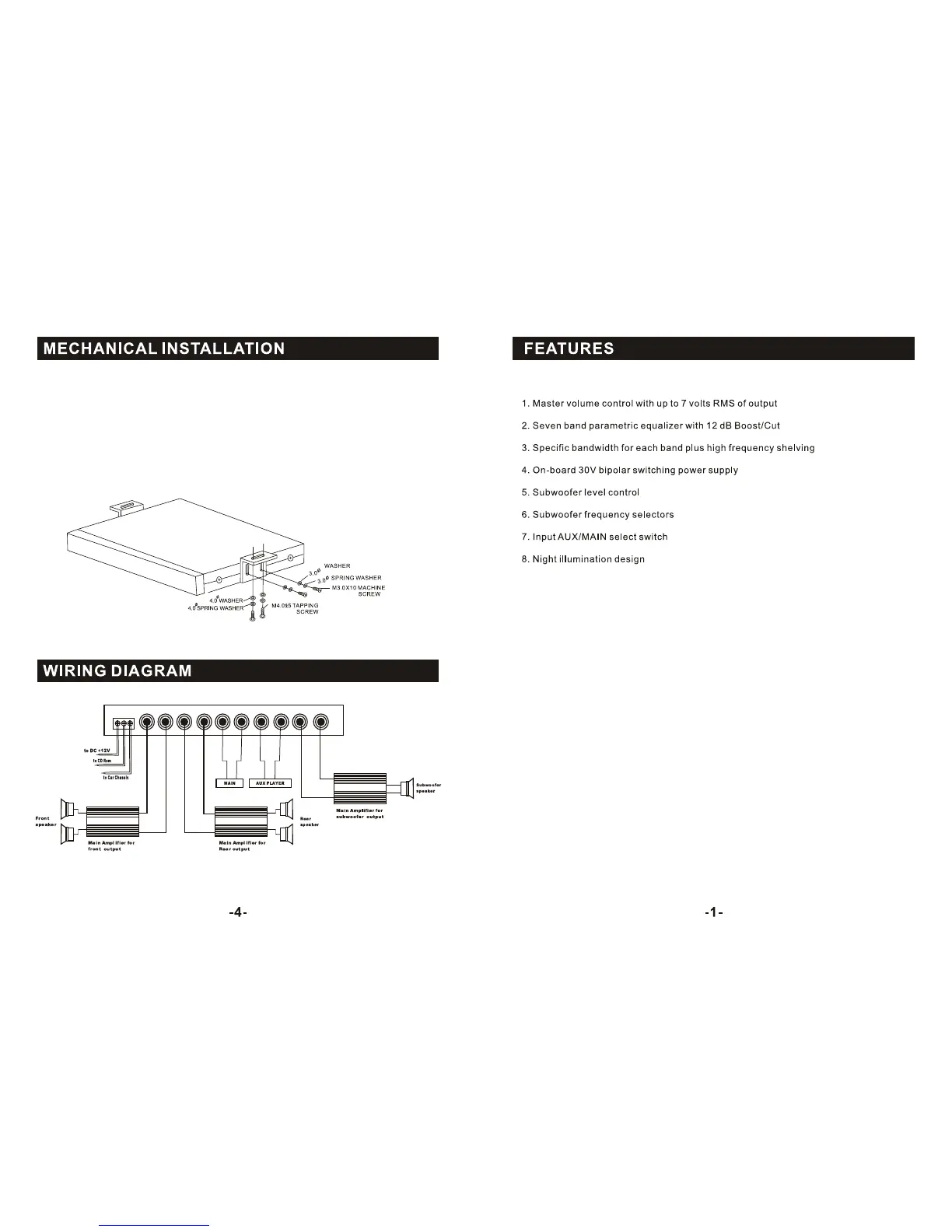

Blaupunkt CEBP870 - Mechanical Installation; Features

1. Select the desired location to mount the unit under the dashboard.
2. Drill (4) 4.2mm diameter holes. Fix the mounting bracket under the dash or in
the rear of the car with (4) 4x14mm tapping screw. Be careful when drilling to
avoid damaging existing wiring under the dashboard.
3. Mount the unit to the mounting bracket with (4) 3x10mm machine screw.
