29

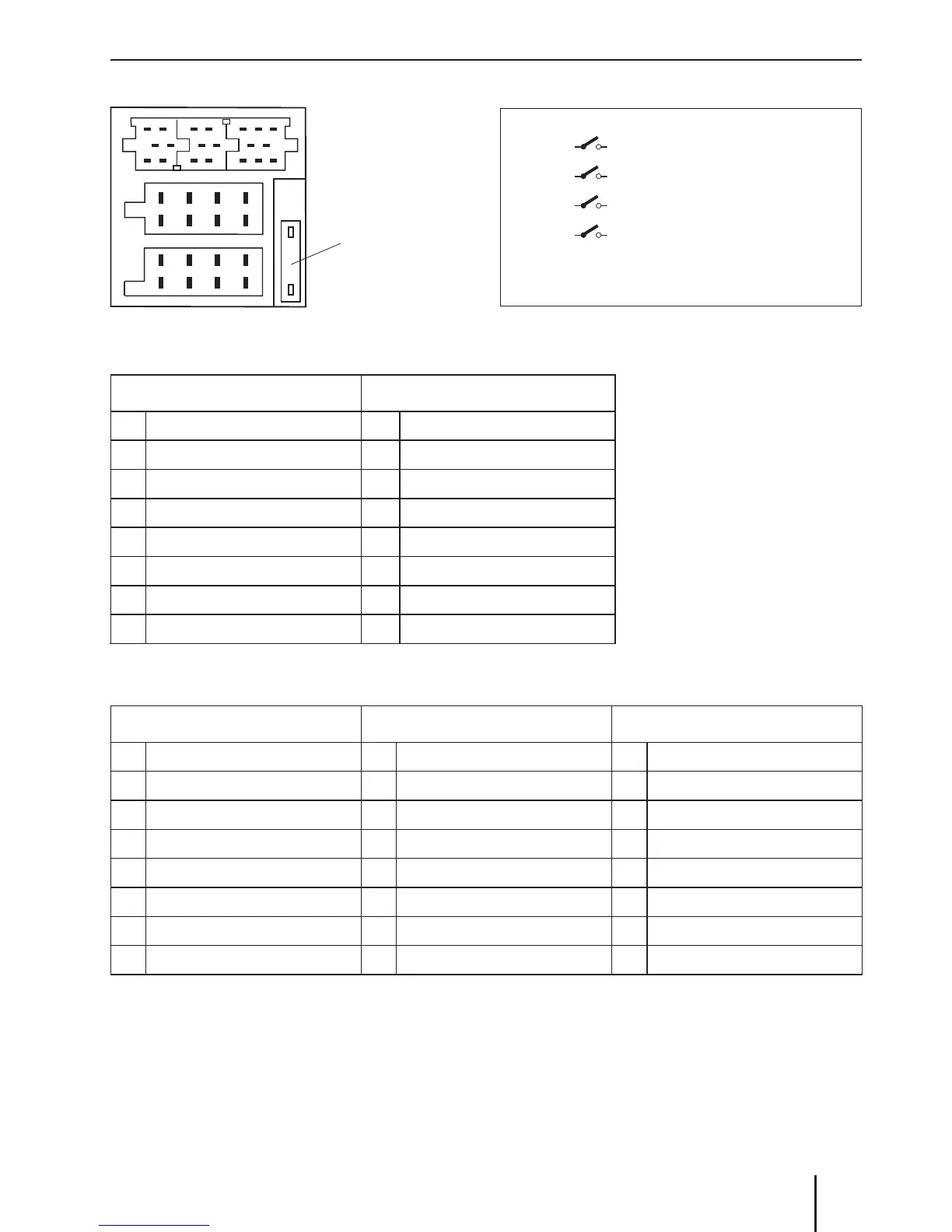

Aut. antenna +12V
Ampli er +12V
Remote Control +12V
Switched Ext. Supply +12V
max. 200 mA
*
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
1
4
7
10
13
16
19
3
6
9
12
15
18
2
58
11
14
17
20
C-1 C-2 C-3
10 Ampere
AB
1 NC 1 Speaker Out RR+
2 Radio Mute 2 Speaker Out RR–
3 NC 3 Speaker Out RF+
4 Permanent +12V 4 Speaker Out RF–
5 Aut. antenna +12V * 5 Speaker Out LF+
6 Illumination 6 Speaker Out LF–
7 Kl.15/Ignition 7 Speaker Out LR+
8 Ground 8 Speaker Out LR–
C1 C2 C3
1 NC 7 NC 13 Uart Communication RX
2 NC 8 NC 14 Uart Communication TX
3 Line Out GND 9 Radio Mute 15 Battery Connection Fused **
4 Line Out Left 10 Remote Control +12V * 16 Switched Ext. Supply +12V *
5 Line Out Right 11 Remote Control IN 17 Battery GND
6 Line Out +12V * 12 Remote Control GND 18 NC
19 NC
20 NC
** Battery voltage 12V
Installation instructions

Blaupunkt Helsinki 220 BT Specifications

General

MP3 playback	Yes
DVD Audio playback	No
Audio formats supported	MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	35
Output power	200 W
Product color	Black
Ready for iPod	-
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
USB version	2.0
Bluetooth version	2.0+EDR
Bluetooth profiles	HFP
Line outputs (RCA)	2
USB ports quantity	1
MP3 bit rates	32 - 320 Kbit/s
Key illumination color	White

Weight and Dimensions

Depth	158 mm
Width	178 mm
Height	51 mm
Weight	730 g
Dimensions (WxDxH)	178 x 158 x 51 mm
