Blitz BZA2160 - Speaker Connections and Installation; Speaker Connections; Mounting and Installation

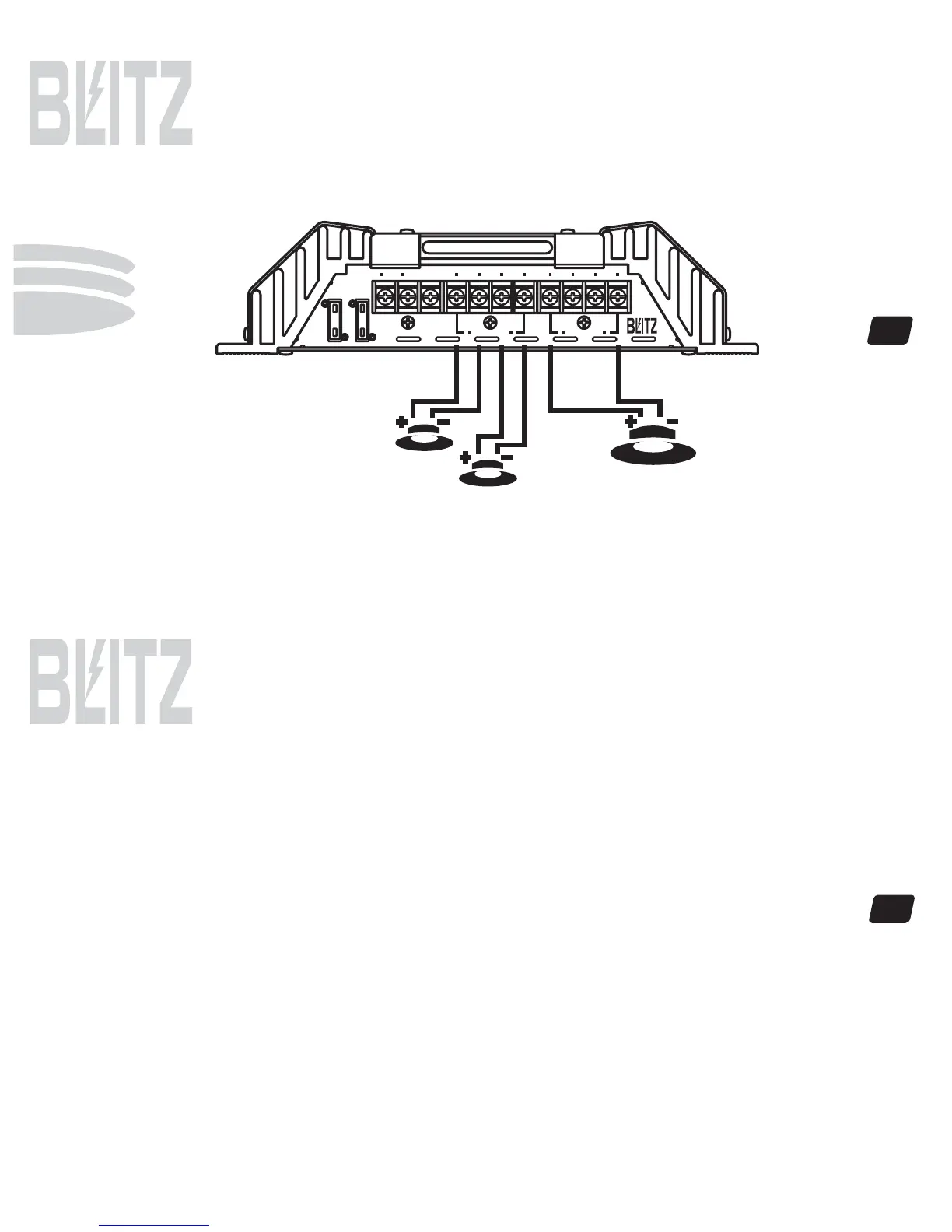

2 CH Stereo Output Mode with Mono Bridged Subwoofer Output
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
speaker connections
4 ch amp BZA-4160.BZA-4260.BZA-4360
27
mounting
mounting and installation
26
Your new Blitz Series amplifier comes complete with all required mounting hardware. When determining a suitable location in your vehicle for the amp, please remember that it is
a high-power electronic device capable of generating high heat.
For this reason, always choose a location in your vehicle which has low vibration, adequate ventilation, a minimum of dust, and no moisture. Be sure to
mount the amp in such a manner as to allow reasonable airflow over the cooling fins.
Mark the location for the mounting screw holes by positioning the amp where you wish to install it and use a scribe (or one of the mounting screws) inserted in each of
the mounting holes to mark the mounting surface. If the mounting surface is carpeted, measure the hole centers and mark with a felt tip pen.
Before attempting to drill the mounting holes, take note of any wires, lines or other devices in your vehicle which may be located behind the mounting
surface! Then drill pilot holes in the mounting surface for the mounting screws and insert them. Tighten the screws securely.
BRIDGEDBRIDGED
FUSE
GND
12V REM CH1 CH2 CH3 CH4
SPEAKERS
SUBWOOFER
L
R
BZA-4160
BZA-4260
BZA-4360
fuses
wiring tips
When making electrical connections to your amplifier, please observe the
following:
Use at least 8 gauge wire for power and ground connections.
Wire the amplifier directly to the car battery.
For the ground connection, use the shortest possible wire to a good chassis ground point.
Wire the Remote connection to the auto start lead of your head unit, equalizer or power antenna.
About power fuses:
Blitz Series amplifiers feature built-in fuse systems. These fuses protect both the amplifier and
the electrical system in your vehicle from fault conditions. If you ever need to replace the fuse
in your Blitz Series amp, use a fuse of exactly the same type and rating. A different type or
rating of fuse may result in damage or fire.
