Blitz R 15/15 - Page 9

Instruction Manual for Mobile Jacks
9

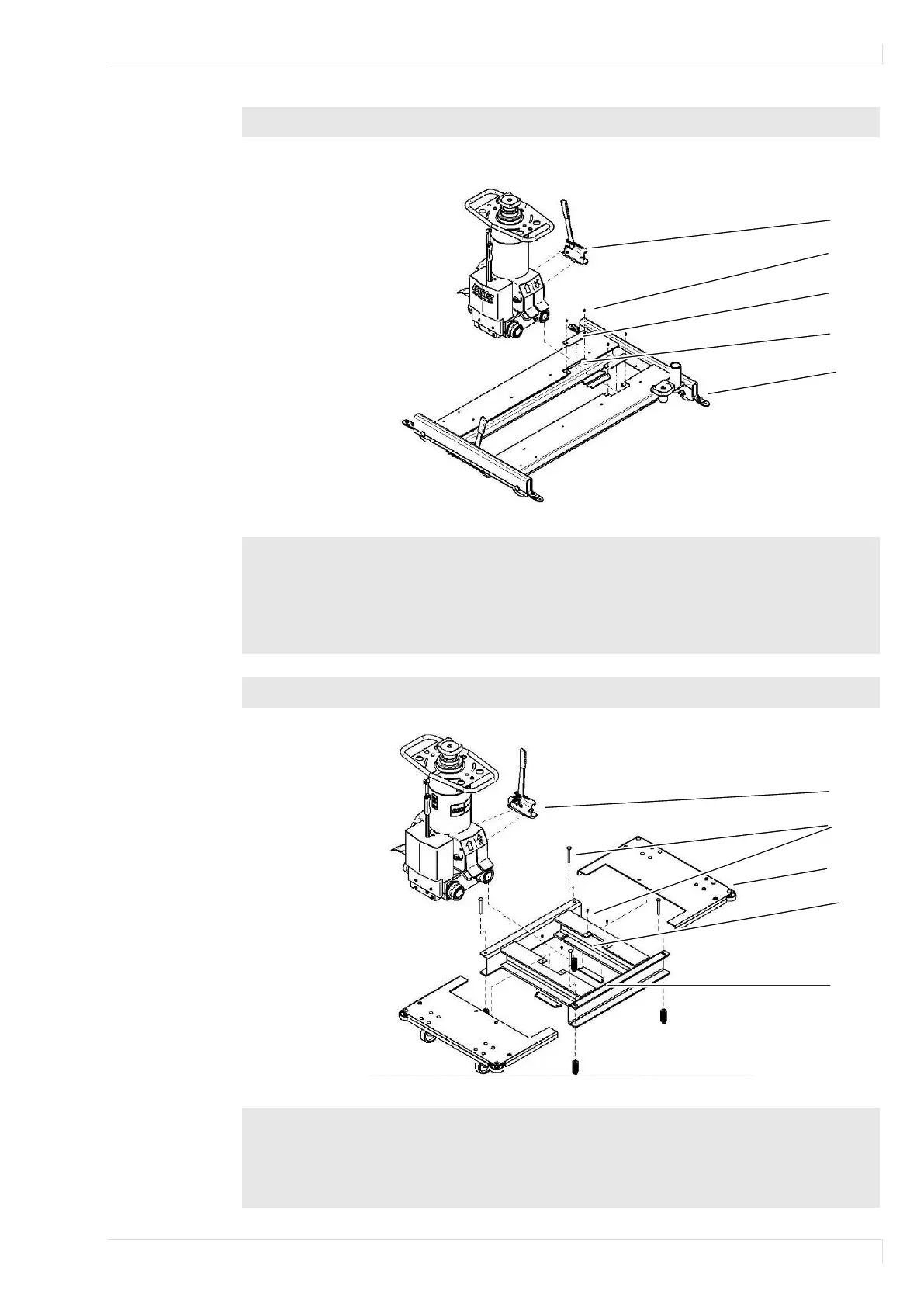

Rail carriage (Blitz R)
A
B
C
D
E
 Loosen brake A from the lift cylinder by removing the bolts.
 Lift the lift unit from the carriage:
To do so, loosen the bolts B and remove the cover C.
Remove the lift cylinder through the opening D.
 Lower the carriage onto the rails and install the lift cylinder again on the carriage.
 Match rollers E to the pit width.
 Check safe contact of the rollers over the entire length of the rails.
Free floor-running carriage (Blitz M)
A
B
E
F
C
 Before assembly, it is helpful to support the base frame so that the rollers are free.
 Loosen brake A from the lift cylinder by removing the bolts.
 Lift the lift unit from the carriage:
For this, loosen the bolts B and remove the cover C.
 Loosen springs D and remove the cover plate E.
 Remove the lift cylinder through the opening F.
