WARNING
SPIRIT LEVEL
10MM MASONRY
DRILL BIT
TOOLS REQUIRED
17MM SPANNER X2
13MM SPANNER
HAMMER
HAMMER DRILL
VACUUM
STEP LADDER

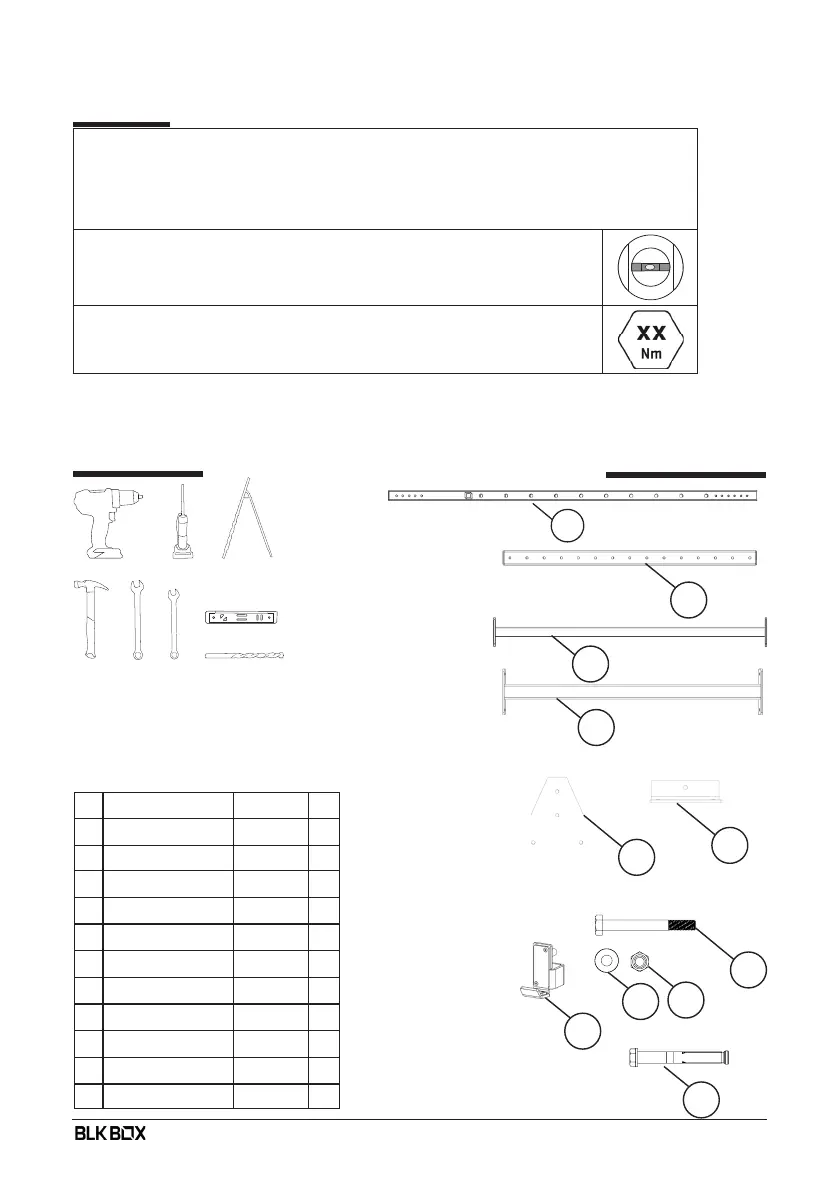

PARTS & ATTACHMENTS
No. Name SKU QTY
1 UPRGIHT 2.2M 21-0573 2
2 BASE FRAME - SA 21-0572 2
3 1.2 SINGLE BAR 21-0015 1
4 BACK CM 21-0602 1
5 FOOT PLATE 20-0412 2
6 BRACE PLATE 20-0472 4
7 M10X90 HEX HEAD BOLT 10-0008 20
8 M10 WAHER 10-0019 42
9 M10 NYLOCK NUT 10-0024 20
10 J-HOOK (PAIR) 16-0001 1
11 SLEEVE ANCHOR 10-0031 2
1
2
3
7
8
9
10
SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE
BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF
INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE).
WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
EACH PERSON SHOULD BE EQUIPPED WITH SAFETY GLASSES, STEEL TOE CAP BOOTS AND EAR PLUGS.
PLEASE BE AWARE OF THIS SYMBOL AS AN INDICATION TO CHECK THAT A PART IS LEVEL
OR PLUMB.
THIS SYMBOL IS AN INDICATION OF THE RECOMMENDED TORQUE EACH
BOLT SHOULD BE TIGHTENED TO. THIS VALUE WILL BE DEPENDENT ON
THE BOLT TYPE. PLEASE HAND TIGHTEN ALL BOLTS UNTIL YOU SEE THIS SYMBOL.
#MADEINBELFAST
4
5
6
11
