BC14G AND BC14E
2-1
STANDARD CONTROLS
1
4
3
2
6
7
5
8
10
9
11
FIGURE 1

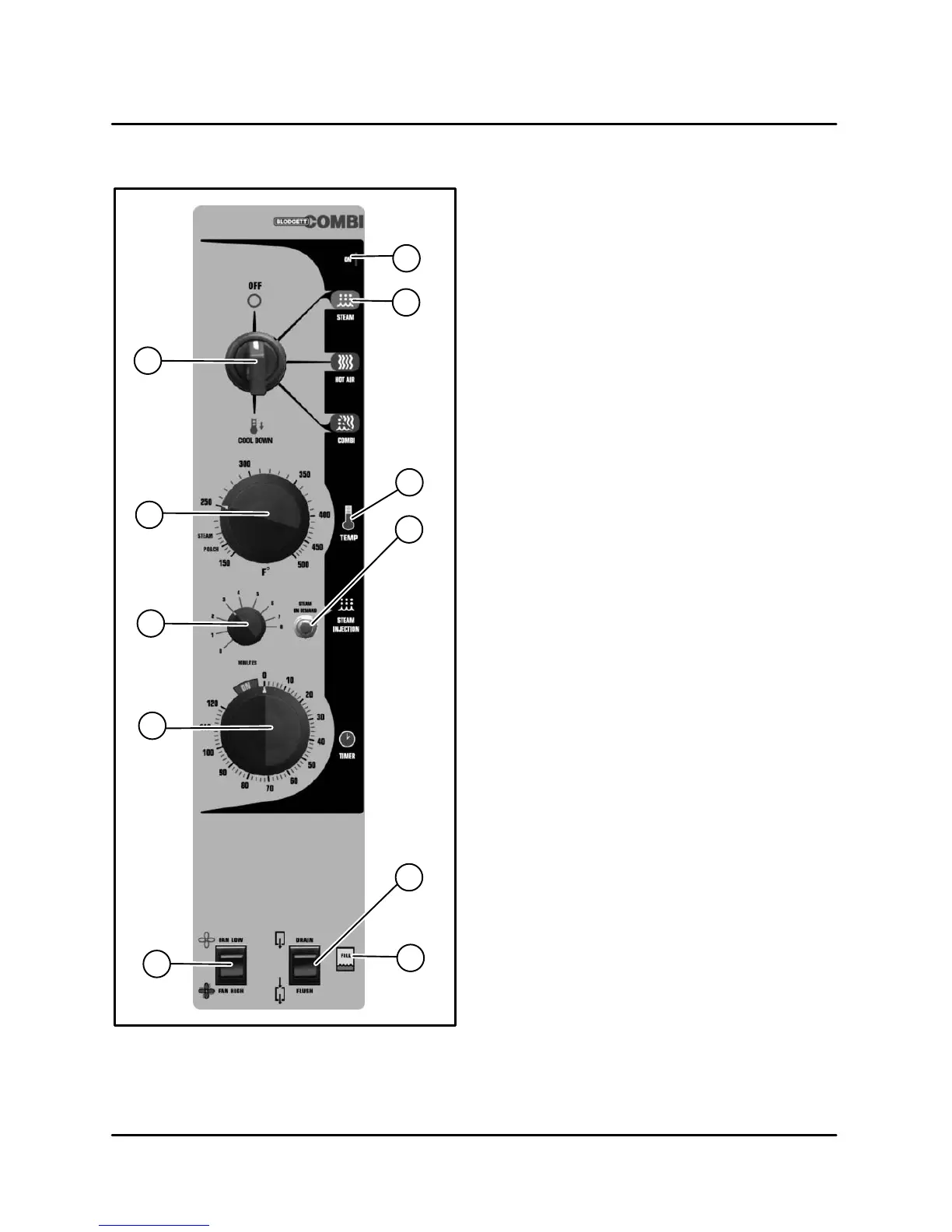

CONTROLS IDENTIFICATION
1. MODE SELECTOR SWITCH - turns power to
the oven on or off. Allows selection of Steam,
Hot Air, Combi or Cool Down Modes.
2. TEMPERATURE DIAL - used to set the cookĆ
ing temperature in all modes. In the Steam
mode, the temperature must be set to less
than or equal to 212_F (100_C).
3. STEAM INJECTION TIMER - used to set the
time for the steam injection cycle.
4. STEAM ON DEMAND SWITCH - used to iniĆ
tiate steam injection cycle.
5. TIMER DIAL - used to set desired cook time.
6. FAN SPEED SWITCH - used to select low or
high speed.
7. FLUSH/DRAIN SWITCH - used to flush/drain
the steam generator for decalcification. The
oven must be off and the steam generator
must be below 160_F (71_C) for this switch to
work.
8. FILL LAMP - illuminated until the steam genĆ
erator is filled with water.
9. TEMP LIGHT - illuminated until the temperaĆ
ture setting on the dial has been reached.
10. STEAM LAMP - illuminated when steam is
being added to cooking process.
11. ON LIGHT - illuminated when the oven is
turned on in any mode.
