This document is an installation guide for the Blossom LED M2 series bathroom mirrors, specifically models 2136, 2436, 3036, 3636, and 4836. These mirrors feature integrated LED lighting and a defogger function, designed for luxury bathroom applications.

Function Description:

The Blossom LED M2 series mirrors serve as a functional and aesthetic addition to bathrooms, providing illumination, a clear reflection, and a defogging capability. The integrated LED lighting offers adjustable color temperature and dimming, enhancing the user experience. The defogger ensures a clear mirror surface even in humid bathroom environments. The mirrors are designed for permanent installation and require a direct electrical connection.

Important Safety Instructions:

Before installation and use, it is crucial to read and follow all instructions to prevent burns, fire, electric shock, or injury. The mirror should only be used for its intended purpose, and no unauthorized attachments should be used. Objects should never be dropped into or inserted into any opening, and the mirror is not designed for outdoor use.

Electrical Safety:

A critical safety warning emphasizes the risk of electric shock. The furnishing must be connected to a properly grounded circuit. All wiring must be performed by a qualified licensed electrician. Power must be shut off before wiring the mirror. For bathroom installations and other locations as required by the National Electric Code, the mirror must be wired to a 20 Amp GFI (Ground Fault Interrupter) protected circuit. The mirror must be connected to a grounded, metal permanent wiring system or an equipment-grounding conductor, which must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the mirror. The system requires a 120 VAC 20 Amp GFI protected circuit.

Grounding Instructions:

The product must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor. This conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the product.

Tools Required for Assembly:

The installation process requires several common tools:

Electrical Drill
1/8" Drill Bit
Pencil
Phillips Screwdriver
Tape Measure
Level

Parts Included:

Each package includes the main mirror unit, along with the necessary hardware for installation:

Mirror (x1)
Screw (x2)
Wall Plug (x2)
Wire Connector (x2)

Important Note on Dimensions:

Users are advised to determine the overall mirror dimensions before proceeding with installation. All dimensions and specifications provided are approximate and subject to change without notice.

Electric Connections Details:

The electrical connections involve connecting the mirror's wiring to the field/power wiring. The guide specifies the following connections:

Neutral to white
Live to black
Ground to green The diagram illustrates connecting the mirror's Live/Black, Ground/Green, and Neutral/White wires to the corresponding Field Wire connections. It is noted that a wire terminal plate is not included. Electric wiring should provide enough wire for proper and safe connection.

Important Technical Specifications / Mirror Features:

The Blossom LED M2 series mirrors boast several advanced features:

Mirror Material: 5mm copper-free silver mirror, ensuring durability and a clear reflection without the risk of corrosion.
LED Lighting: High output LED lighting with a Color Rendering Index (CRI) of 90+, indicating excellent color accuracy. The Correlated Color Temperature (CCT) is adjustable from 2700K (warm white) to 6400K (cool white), providing versatility for different lighting preferences. The lighting is rated IP44, signifying protection against solid objects larger than 1mm and splashing water from any direction.
Control: Features a color-changing and dimmable touch switch for surface LED control, allowing users to easily adjust the light intensity and color temperature.
Mounting Options: Designed for both vertical and horizontal mount options, offering flexibility in installation to suit various bathroom layouts.
Defogger: Includes a defogger function to maintain a clear mirror surface, enhancing convenience in humid environments.

Installation Instructions:

Placement:

Select the desired position for the mirror on the wall.
Use a level to ensure the chosen location is perfectly horizontal.
Mark the location with a pencil.

Support Location:

Measure the center of the mounting holes on the mirror.
Transfer these measurements to the marked wall location.
Ensure the drilling locations are level to guarantee a straight installation.

Install Screws:

Using an electrical drill and a 1/8" drill bit, create holes at the marked locations.
Insert the supplied wall plugs into the drilled holes.
Drive the supplied screws into the wall plugs, leaving a gap of 2-3mm between the head of the screw and the wall. This gap is essential for hanging the mirror.

Placement (Mounting):

Carefully lift the mirror and align the keyhole slots on the back of the mirror with the installed screws.
Place the mirror against the wall, ensuring the screw heads slide into the wider part of the keyhole slots.
Slide the mirror downwards to secure it in place, so the screws engage with the narrower part of the keyhole slots.

Final Assembly and Usage:

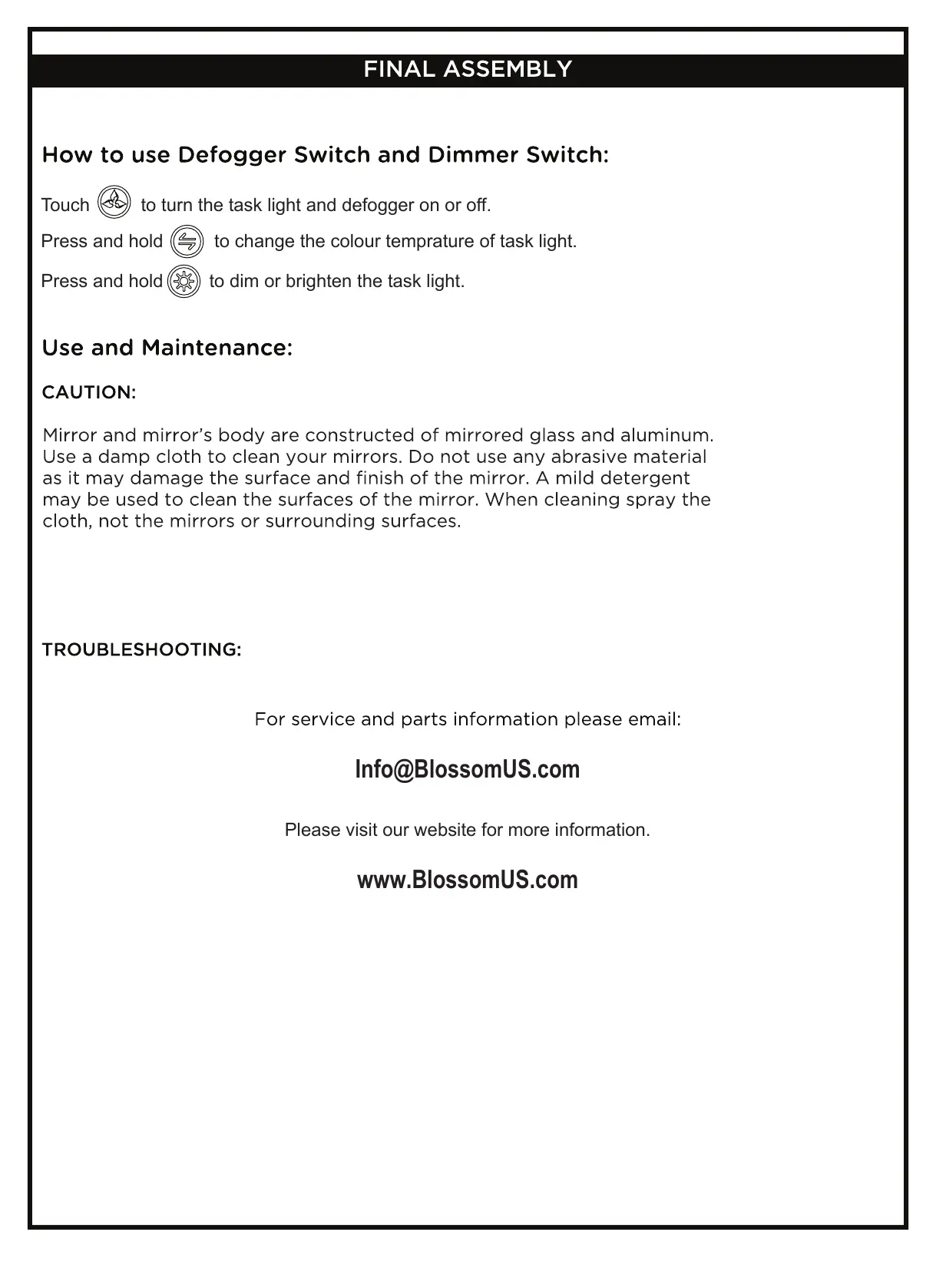

How to use Defogger Switch and Dimmer Switch:

The mirror features intuitive touch controls for its functions:

Task Light and Defogger On/Off: Touch the designated icon (a circle with a hand symbol) to turn both the task light and the defogger on or off.
Color Temperature Adjustment: Press and hold the designated icon (a circle with a sun symbol) to change the color temperature of the task light, cycling through the available CCT options (2700K-6400K).
Dimming: Press and hold the designated icon (a circle with a gear symbol) to dim or brighten the task light, allowing for precise control over illumination intensity.

Use and Maintenance:

Caution:

The mirror and its body are constructed from mirrored glass and aluminum. Proper cleaning and maintenance are essential to preserve its appearance and functionality.

Cleaning Instructions:

Use a damp cloth to clean the mirror surfaces.
Avoid using any abrasive materials, as these can damage the surface and finish of the mirror.
A mild detergent may be used for cleaning.
When cleaning, always spray the cleaning solution onto the cloth first, rather than directly onto the mirrors or surrounding surfaces, to prevent liquid from seeping into the mirror's internal components.

Troubleshooting:

For any service or parts information, customers are advised to email Info@BlossomUS.com. Further information can also be found on the company's website, www.BlossomUS.com.

This comprehensive guide ensures users can safely and effectively install, operate, and maintain their Blossom LED M2 series bathroom mirrors, enjoying the blend of luxury and functionality they offer.

Blossom LED M2 2136 - FINAL ASSEMBLY AND CARE; Defogger and Dimmer Switch Operation; Use and Maintenance Guidelines; Troubleshooting Information
