Blu STUDIO 5.0S II - Page 8

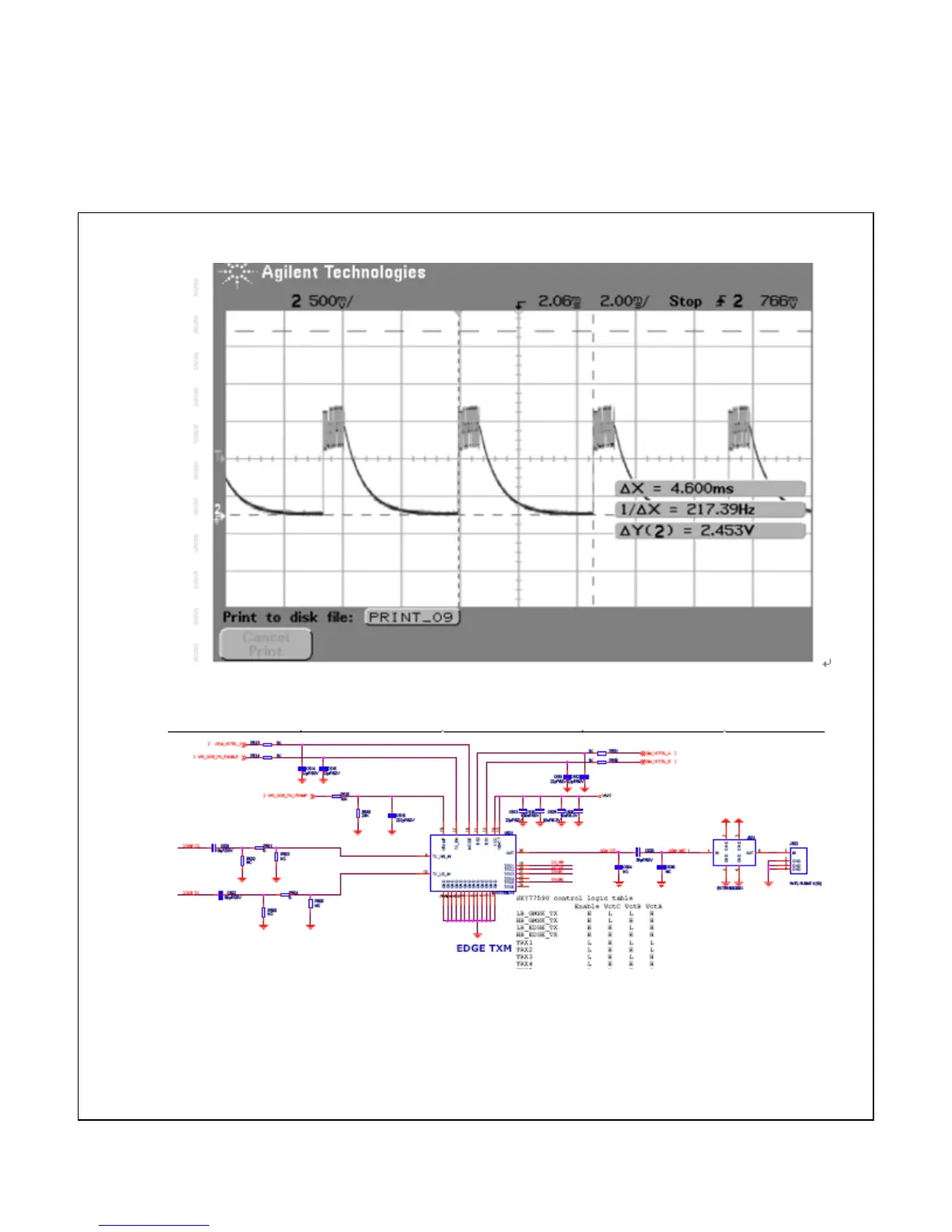

a. The wave I/Q at transmit state as below.
b.
c. If the PA_EN,VRAMP and TX input are all in the correct states and the TX output is
abnormal ,you can know there are something wrong with the SKY77590
d.
