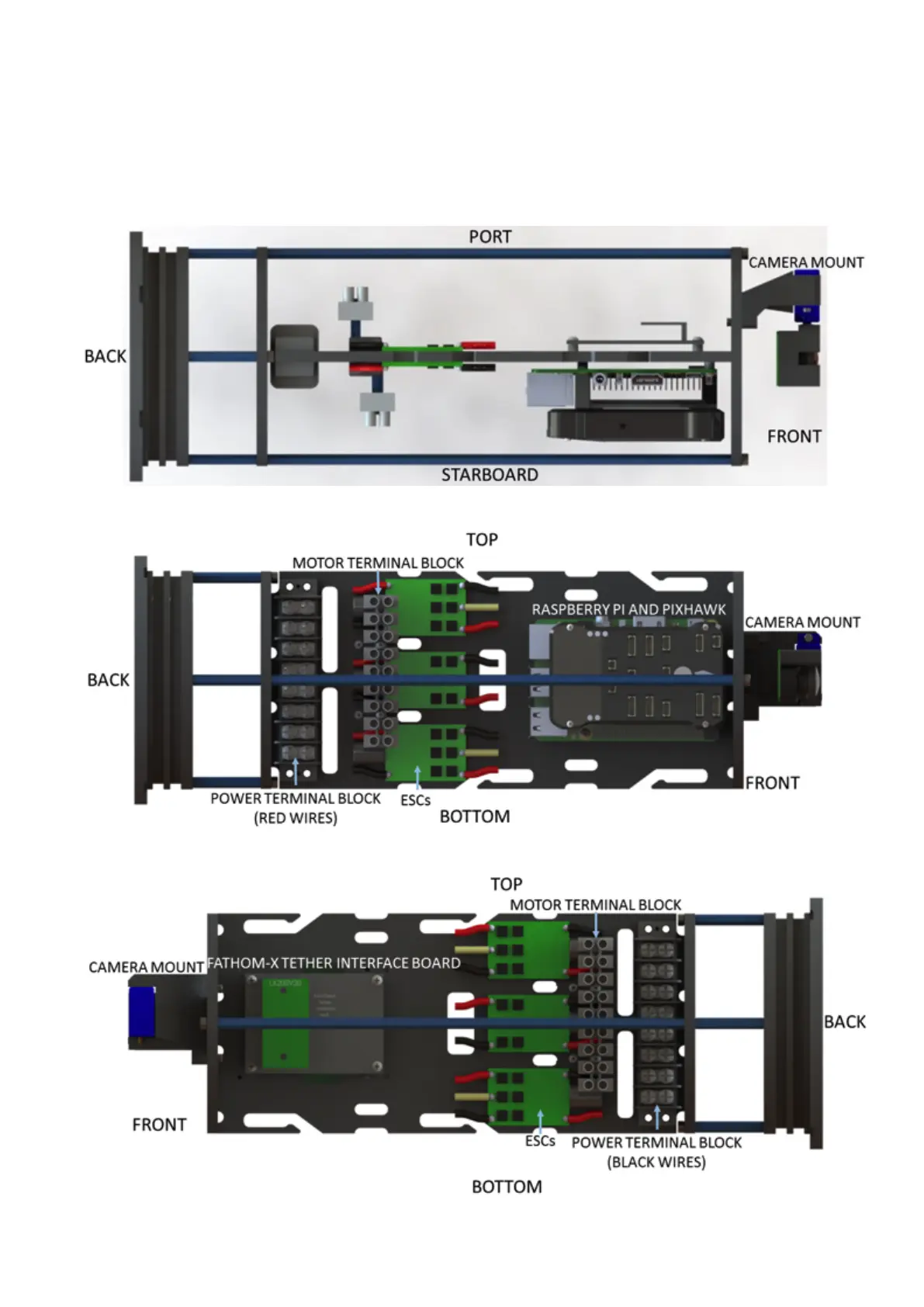

Electronics Enclosure Overview
The images below show orientation of the main pieces of hardware in the electronics
enclosure. They also point out the names of several of the important parts for assembly
that will be discussed in the remaining instructions.
Top View
Starboard View
Port View
